Bison Gear Motors 011-336-4011

B00LPB1ERG

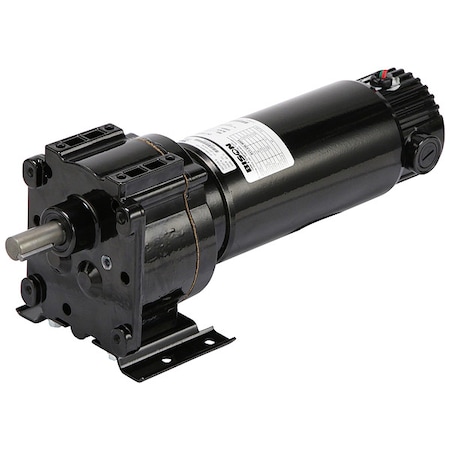

Bison Model 011-336-4011 Gear Motor 1/4 hp 170 RPM 90/130VDC

Bison Model 011-336-4011 Gear Motor 1/4 hp 170 RPM 90/130VDCzoom

Attributes

Key Value
Bearing TypeBall
Current Rating2.51 A
Enclosure TypeTotally Enclosed Non-Ve.
Family SeriesBison Gear & Engineerin.
Gear Ratio10.6:1
Gross Weight19.035 lbs
Horsepower1/4 hp
Housing Mount Hole Size0.28 in
Input Horsepower1/4 hp
ItemDC Gearmotor,170RPM,90V
Item Number011-336-4011
Keyway Depth3/16 in
Keyway Length1 in
Keyway TypeSquare
Keyway Width3/16 in
Length Less Shaft8.53 in
LubricationOil
ManufacturerBison Gear & Engineering
Manufacturer Part Number011-336-4011
Maximum Output Speed246 RPM @ 130 V
Maximum Torque90 in-lb
Motor Duty ClassContinuous
Motor TypePermanent Magnet DC
Mount Hole Center-to-Ce.4 in
Mount Hole Center-to-Ce.1.5 in
MountingFace
Net Weight16.39 lbs
Nominal Torque90 in-lbs
Nominal Voltage125 VDC, 90 VDC
Number of Stages2
Output Connection Depth2 in
Output Shaft Diameter5/8 in
Output Shaft TypeKeyed
Output Speed170 RPM, 246 RPM
Output StyleParallel Shaft
Overall Height5.6 in
Overall Length10.53 in
Overall Width4.08 in
Product Series336 Series PMDC
Ratio10.6:1
StandardsRoHS Compliant
Voltage (DC)130 VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00LPB1ERG455.651In Stock30Bison Gear Motors455.65 @ 1
thumbzoomelectricmotorwholesale.com0113364011456.771In StockBISON456.77 @ 1
thumbzoomRadwell011-336-4011580.01In StockBISON580.0 @ 1
thumbzoomZoroG9651437676.991In StockBison Gear & Engineering19.5676.99 @ 1
thumbzoomGalco011-336-4011-BISN763.525In StockBison Gear & Engineering19.035763.52 @ 5
thumbzoombscsource.com0113364011962.391In StockBison Gear962.39 @ 1
thumbzoomNational Supply Network938046721019.731In StockBison Gear1019.73 @ 1
