Black Box C6PC80-BK-03

mpnC6PC80-BK-03
brandname: BLACK BOX
manufacturername: BLACK BOX

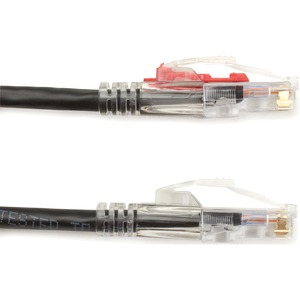

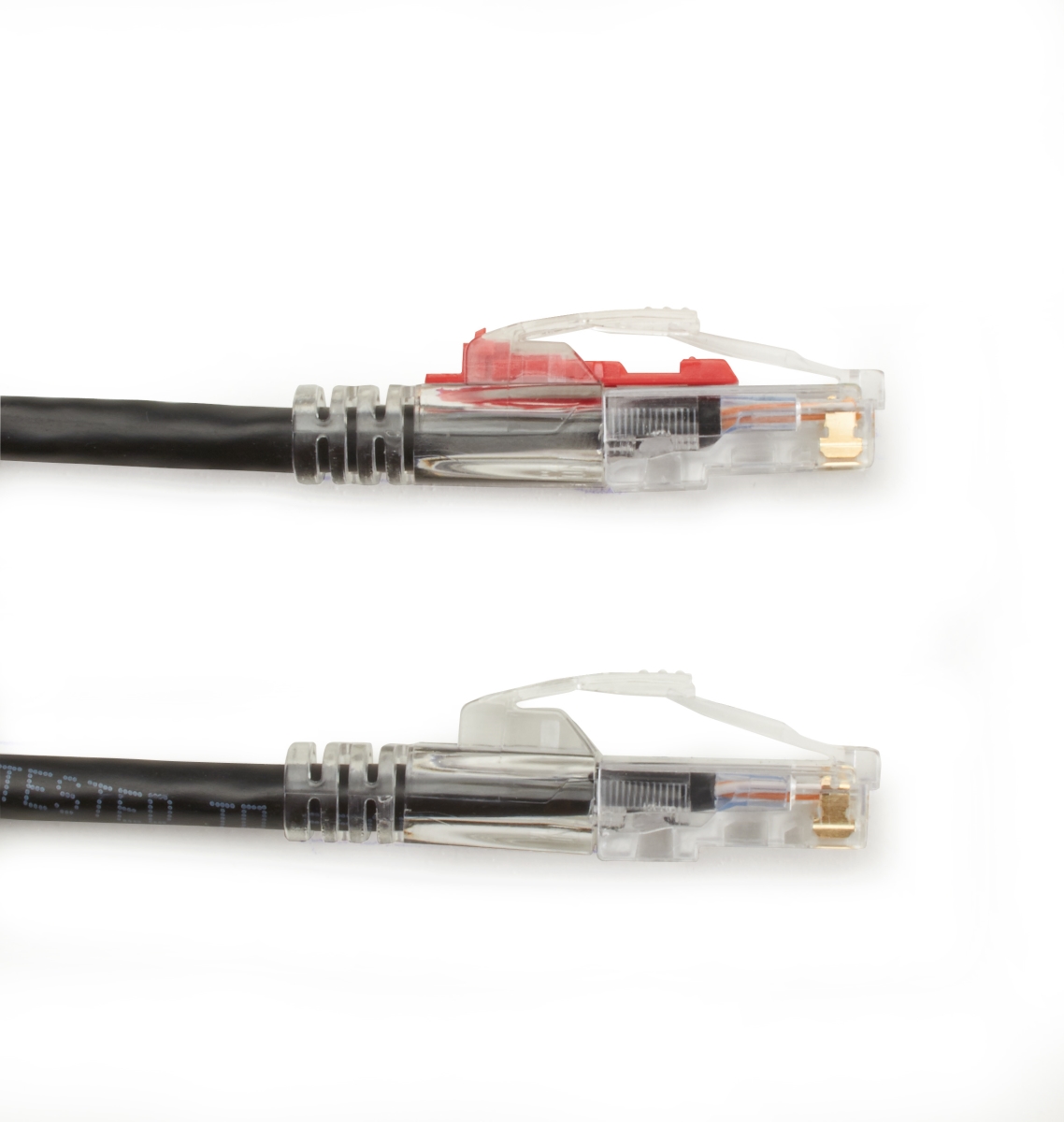

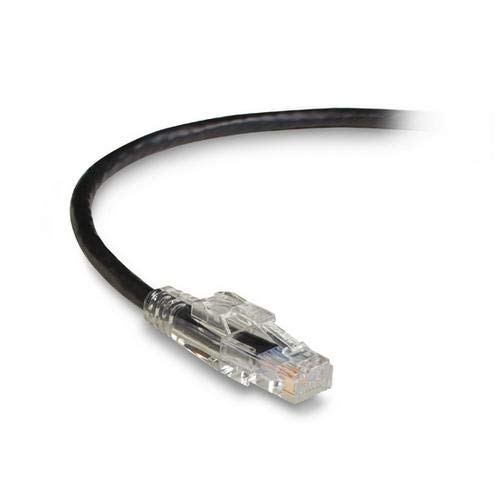

Black Box C6PC80-BK-03, 3' CAT6 Patch Cable, Pack of 20 pcs

Black Box C6PC80-BK-03, 3

zoom

Brand: Black Box
PartNumber: C6PC80-BK-03
Color: Black
Size: 3 feet
PackageQuantity: 20
Manufacturer: Black Box Corporation
Label: Black Box Corporation

Attributes

Key	Value
ACR	20.5 dB at 100 MHz; 0 d.
ACRF	27.8 dB at 100 MHz; 19..
American Wire Gauge	24 AWG
Brand Name	Black Box
Cable Characteristic	Patch Cable
Cable Length	3 ft
Cable Type	Category 6
Capacitance Unbalance	Pair to ground: 330 pF/.
Color	Black
Conductor Gauge	24 AWG, stranded, UTP, .
Connector on First End	1 x RJ-45 Male Network
Connector on Second End	1 x RJ-45 Male Network
Country of Origin	Taiwan
Country of Origin (subj.	Unknown
DC Resistance Unbalance	5% maximum
Delay Skew	40 ns/100 m (328 ft.) m.
Device Supported	Patch Panel, Wallplate,.
Diameter	0.22" (5.7 mm)
Environmental Certifica.	RoHS
Environmentally Friendly	Yes
Features	Stranded, Snagless, Boo.
Impedance	100 ? 15 ohms at 100 MH.
Insertion Loss (Maximum)	23.8 dB at 100 MHz; 39..
Jacket	PVC, CM
Jacket Type	CM
Limited Warranty	Lifetime
Manufacturer	Black Box, Black Box Co.
Manufacturer Part Number	C6PC80-BK-03
Manufacturer Website Ad.	http://www.blackbox.com
Material	Polyvinyl Chloride (PVC.
Mutual Capacitance	56 pF/m, maximum
NEXT	44.3 dB at 100 MHz; 38..
Product Condition	New
Product Line	GigaTrue 3
Product Name	GigaTrue 3 Cat.6 UTP Pa.
Product Type	Network Cable
Propagation Delay	550 MHz, 535.5 ns/100 m.
PS-ACR	18.5 dB at 100 MHz
PS-ACRF	24.8 dB at 100 MHz; 16..
PS-NEXT	42.3 dB at 100 MHz; 36..
Resistance	9.09 ohms/100 m (328 ft.
Return Loss	19.0 dB at 100 MHz; 15..
Shielding	No
Standards	TIA/EIA-568-C.2 Categor.
Structured Return Loss	22.5 dB at 100 MHz; 20..
TAA Compliant	Yes

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	C6PC80-BK-03	7.75	1	3		BlackBox		7.75 @ 3
	ipcstore.com	14_C6PC80-BK-03_1	10.0	1	3		Black Box		10.0 @ 3
	Zoro	G0697966	10.0	1	3	8	Black Box		10.0 @ 3
	Newark	18X1402	11.63	1	3		BLACK BOX		11.63 @ 3
	CDW	3692753	11.99	1	3		Black Box		11.99 @ 3
	PCNation	3300AD	13.46	1	3		BLACK BOX CORPORATION	1.0	13.46 @ 3
	unbeatablesale.com	SYBA12467	13.64	1	3		BLACK BOX NETWORK SERVICES		13.64 @ 3
	barcodegiant.com	BLA629167	16.4	1	3		Black Box		16.4 @ 3
