- mpn3224W1102E
- brandname: BOURNS
- manufacturername: BOURNS

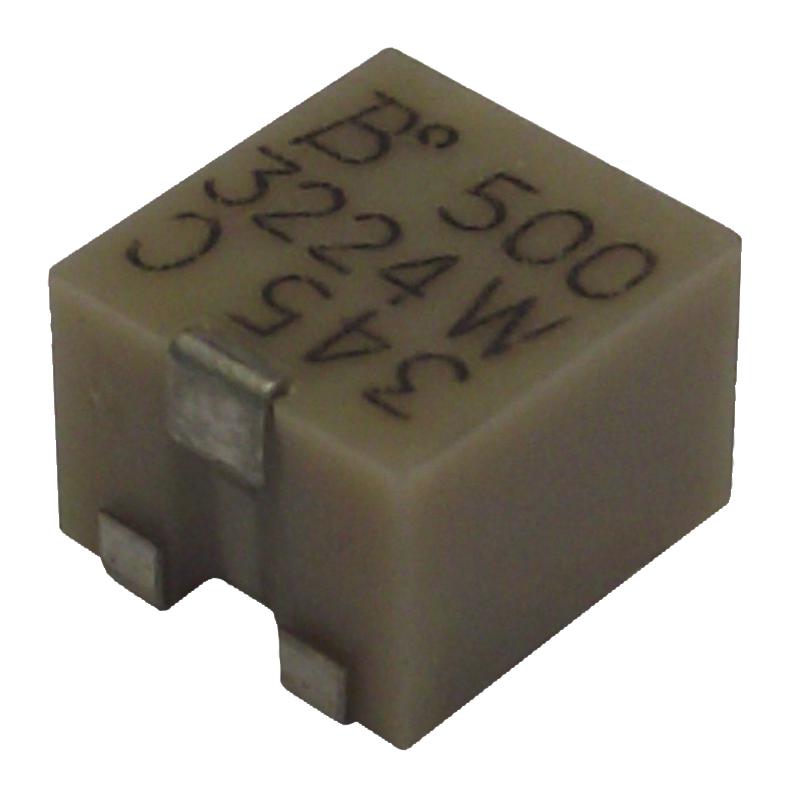

BOURNS 3224W-1-102E TRIMMER, POTENTIOMETER 1KOHM 11TURN SMD (10 pieces)
- PartNumber: 3224W-1-102E
- PackageQuantity: 10
- Manufacturer: BOURNS
- Label: BOURNS
Attributes
| Key | Value |
|---|
| <a target="_blank" href. | //www.ibselectronics.co. |
| Adjustment | Top Slot |
| Adjustment Type | Top Adjustment |
| Alternate Part No. | 652-3224W-1-102E |
| Base Product Number | 3224W |
| Brand | Bourns |
| Case | Standard |
| Category | Potentiometers, Variabl. |
| Dielectric Strength | 600 VAC |
| Dimensions | 4.8 mm W x 5.1 mm L, 0.. |
| Element Material | Cermet |
| Element Type | Cermet |
| Insulation Resistance | 100 MegaOhms |
| Load Life | 1000 hr @ +85 ?C |
| Manufacturer | Bourns |
| Manufacturer Part No. | 3224W-1-102E |
| Maximum Operating Tempe. | +150 ?C |
| Mfr | Bourns Inc. |
| Minimum Operating Tempe. | -65 ?C |
| Mounting Type | Surface Mount |
| Number of Turns | 11, 12 |
| Operating Temperature R. | - 65 C to + 150 C |
| Package | Tape & Reel (TR) |
| Packaging | Reel |
| Part Status | Active |
| Power (Watts) | 0.25W, 1/4W |
| Power Rating | 0.25 W, 250 mW (1/4 W) |
| Primary Type | Trimmers |
| Product | Trimmers, Multiturn |
| Product Category | Trimmer Resistors - SMD |
| Product Type | Multiturn |
| Resistance | 1 kOhms, 1 Kiloohms |
| Resistive Material | Cermet |
| Rotational Life | 200 Cycles |
| Series | 3224, 3224 Series, Trim. |
| Size / Dimension | Rectangular - 0.189" x . |
| SKU | 525076 |
| Taper | Linear |
| Temperature Coefficient | ?100ppm/?C, ?100 ppm/?C. |
| Termination | SMD |
| Termination Style | J Lead, SMD/SMT |
| Tolerance | 10 %, 0.1 %, ?10% |
| Torque | 180 g/cm |
| Type | SemiConductor, 4mm SMD . |
| Voltage Rating | 300 V |
| Weight | 0.01 Oz. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Win Source | 3224W-1-102E | 0.946 | 53 | 16144 | | Bourns Inc. | | 0.946 @ 53 |
| Onlinecomponents.com | 3224W-1-102E | 2.29 | 1 | 50 | | BOURNS | | 2.29 @ 50 |
 | TME | 3224W-1-102E | 2.38 | 1 | 1979 | | BOURNS | | 2.38 @ 50 |
 | IBS Electronics | 3224W-1-102E | 2.75 | 1 | 50 | | Bourns | | 2.75 @ 50 |
 | Newark | 09WX8588 | 3.04 | 1 | 3227 | | BOURNS | | 3.04 @ 50 |
| Hotenda | H2986646 | 3.278 | 250 | 50 | | Bourns, Inc. | | 3.278 @ 250 |
| Digi-Key | 1818150 | 3.5016 | 1 | 7460 | | Bourns Inc. | | 3.5016 @ 50 |
| us.rs-online.com | 70153445 | 5.02 | 1 | 50 | | Bourns | 0.000625 | 5.02 @ 50 |
| RS Delivers | 177-453P | 6.1908 | 1 | 810 | | Bourns | | 6.1908 @ 50 |
 | swatee.com | 3224W-1-102E | 7.25 | 1 | 2183 | | Bourns | | 7.25 @ 50 |
| AmazonTP | B00M1XE45G | 13.65 | 1 | 50 | 5 | BOURNS | | 13.65 @ 50 |
| AmazonSC | B00M1XE6W2 | 537.49 | 1 | 50 | | Bourns | | 537.49 @ 50 |
