- mpnSRR1240-120M
- brandname: Bourns Inc.
- manufacturername: Bourns Inc.

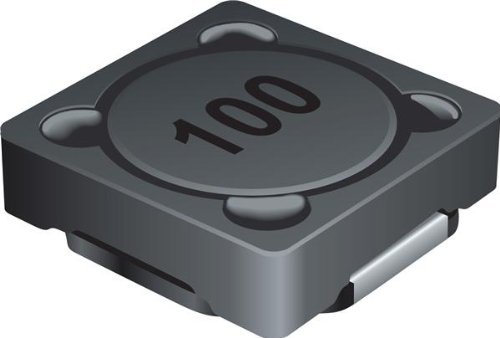

Bourns Surface Mount Power Inductor, Srr1240 Series, 12 H, 20%, Shielded, 0.038 Ohm, 3.8 A Rohs Compliant: Yes - SRR1240-120M
- Brand: Bourns
- PartNumber: SRR1240-120M
- Size: 1 Piece
- PackageQuantity: 1
- Manufacturer: Bourns
- Label: Bourns
Attributes
| Key | Value |
|---|
| Alternate Part No. | 652-SRR1240-120M |
| Base Product Number | SRR1240 |
| Brand | Bourns |
| Case Height | 4 mm |
| Case Length | 12.5 mm |
| Case Width | 12.5 mm |
| Category | Inductors, Coils, Chokes |
| Current - Saturation (I. | 3.6A |
| Current Rating (Amps) | 3.8 A, 3.8A |
| DC Resistance (DCR) | 38mOhm Max |
| Description | FIXED IND 12UH 3.8A 38 . |
| Detailed Description | 12 ?H Shielded Drum Cor. |
| Digi-Key Part Number | SRR1240-120MTR-ND - Tap. |
| Frequency - Self Resona. | 25MHz |
| Height - Seated (Max) | 0.177" (4.50mm), 0.177". |
| Inductance | 12?H, 12 uH, 12 ?H |
| Inductance Frequency - . | 100kHz, 100 kHz |
| Lead Spacing | 7 mm |
| Manufacturer | Bourns Inc., Bourns |
| Manufacturer Part No. | SRR1240-120M |
| Manufacturer Product Nu. | SRR1240-120M |
| Manufacturer Standard L. | 16 Weeks |
| Material - Core | Ferrite |
| Maximum DC Current | 3.8 A |
| Maximum DC Resistance | 38 mOhms |
| Mfr | Bourns Inc. |
| Mounting Type | Surface Mount |
| Operating Temperature | -40?C ~ 125?C |
| Operating Temperature R. | - 40 C to + 125 C |
| Package | Tape & Reel (TR) |
| Package / Case | Nonstandard |
| Package/Case | 1240 |
| Packaging | Reel |
| Part Status | Active |
| Product | Power Inductors |
| Product Category | Fixed Inductors |
| Product Status | Active |
| Q @ Freq | 16 @ 2.52MHz |
| Q Minimum | 16 |
| Ratings | - |
| Self Resonant Frequency | 25 MHz |
| Series | SRR1240 |
| Shielding | Shielded |
| Size / Dimension | 0.492"" L x 0.492"" W (. |
| Supplier Device Package | - |
| Termination Style | SMD/SMT |
| Test Frequency | 2.52 MHz |
| Tolerance | ?20%, 20 % |
| Type | Wirewound, Shielded Pow. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H2180481 | 0.4216 | 800 | 10 | | Bourns, Inc. | | 0.4216 @ 800 |
| Newark | 17M2830 | 0.648 | 800 | 10 | | BOURNS | | 0.648 @ 10 |
 | Radwell | SRR1240-120M | 1.4 | 1 | 10 | | BOURNS JW MILLER | | 1.4 @ 10 |
 | Digi-Key | 2562372 | 1.4184 | 1 | 10 | | Bourns Inc. | | 1.4184 @ 10 |
 | swatee.com | SRR1240-120M | 1.44 | 1 | 352 | | Bourns | | 1.44 @ 10 |
