- mpnCN-5703
- brandname: Bud Industries
- manufacturername: Bud Industries

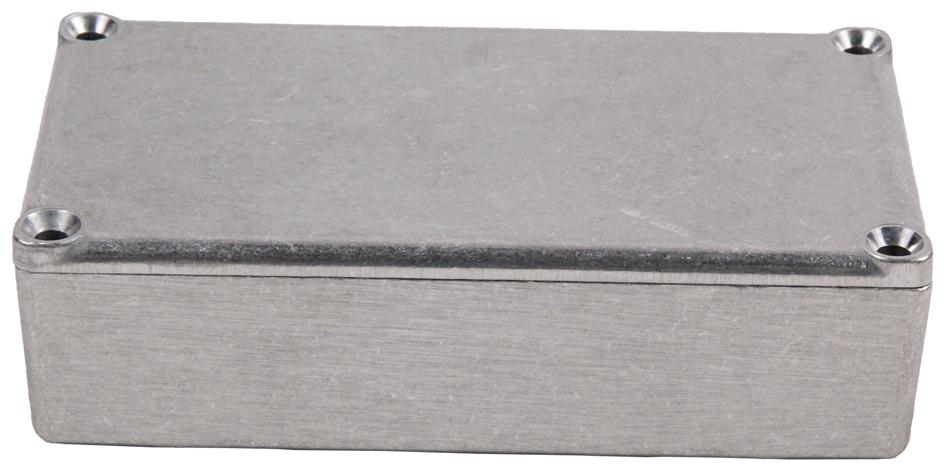

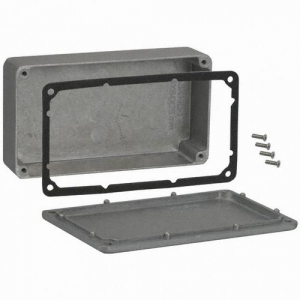

CN-5703, Natural Die Cast Aluminum Enclosure (5 Items)
- Brand: BUD Industries
- PartNumber: CN-5703
- Model: CN-5703
- Manufacturer: Bud Industries
- Label: Bud Industries
Attributes
| Key | Value |
|---|
| Approximate Depth | 1.2" (30mm) |
| Approximate Height | 4.5" (114mm) |
| Approximate Width | 2.5" (64mm) |
| Area (L x W) | 11.3in? (73cm?) |
| Body Length | 4.51 in |
| Body Width | 2.50 in. |
| Category | Boxes, Enclosures, Racks |
| Color | Natural |
| Composition | Metallic |
| Container Type | Box |
| Cover Design | Lift-Off Cover |
| Depth | 1.22 in |
| Description | BOX ALUM NAT 4.512"L X . |
| Design | Cover Included |
| Detailed Description | Box Metal, Aluminum Nat. |
| Digi-Key Part Number | 377-1514-ND |
| Dimensions | 4.51 x 2.5 x 1.22 . ; 1. |
| Dimensions (H x W x D) | 4.51 x 2.5 x 1.22" |
| Door Design | Lift-Off |
| Enclosure Mounting | Desktop |
| Family Series | Bud Industries Enclosur. |
| Features | Sealed |
| Finish | Natural |
| Gross Weight | 0.36 lbs |
| Height | 1.224" (31.09mm) |
| Inner Panel | Not Supported |
| IP Rating | IP66 |
| Item Number | CN-5703 |
| Latching Mechanism | Screws |
| Locking Feature | Screw |
| Manufacturer | Bud Industries |
| Manufacturer Part Number | CN-5703 |
| Manufacturer Product Nu. | CN-5703 |
| Manufacturer Standard L. | 10 Weeks |
| Material | Metal, Aluminum, ABS, C. |
| Material Flammability R. | - |
| Mfr | Bud Industries |
| Molded-in Card Guides | No |
| Mounting | Wall |
| NEMA Rating | 13 |
| NEMA Type | 4, 4X, 12 and 13 |
| Net Weight | 0 lbs |
| Nominal Depth | 1 " |
| Nominal Height | 5 " |
| Nominal Width | 3 " |
| Number of Doors | 1 |
| Package | Box |
| Panel Included | No |
| Product Series | CN |
| Product Status | Active |
| Ratings | IP66, NEMA 1,2,4,4X,12,. |
| RoHS | Yes |
| Series | CN Series, CN |
| Shipping Info | Shipped from Digi-Key |
| Size | Xtra Small |
| Size / Dimension | 4.512" L x 2.504" W (11. |
| Standards | RoHS |
| Thickness | 0.060" (1.52mm) |
| Type | Box-Lid |
| Wall Thickness | 0.06" |
| Weight | 0.269 lb (122.02 g) |
| Wgt. Ozs. | 5.8 |
| Window/Clear Cover | No |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | AI Consolidated | CN-5703-BUD | 5.85 | 1 | In Stock | | Bud Industries | 0.3 | 5.85 @ 1 |
| Hawk Electronics | CN-5703 | 6.9 | 1 | In Stock | | BUD | | 6.9 @ 1 |
 | Newark | 79K6003 | 8.27 | 10 | 89 | | BUD INDUSTRIES | | 8.27 @ 10 |
| Onlinecomponents.com | CN-5703 | 8.46 | 1 | 23 | | BUD INDUSTRIES | | 8.46 @ 1 |
 | Galco | CN-5703-BUDI | 8.49 | 1 | In Stock | | Bud Industries | 0.36 | 8.49 @ 1 |
| Hotenda | H18223 | 8.85 | 1 | In Stock | | BUD Industries, Inc. | | 8.85 @ 1 |
 | Digi-Key | 1219175 | 9.5 | 1 | 7 | | Bud Industries | 0.269 | 9.5 @ 1 |
| Sager Electronics | CN-5703 | 9.5 | 1 | 269 | | Bud Industries | | 9.5 @ 1 |
| Mouser | 563-CN-5703 | 9.5 | 1 | 9 | | Bud Industries | | 9.5 @ 1 |
 | jensentools.com | 10012589 | 9.83 | 1 | 52 | | Bud Industries | | 9.83 @ 1 |
| us.rs-online.com | 70147715 | 10.28 | 1 | In Stock | | Bud Industries | | 10.28 @ 1 |
 | Solutions Direct | CN-5703 | 10.7 | 1 | In Stock | | Bud Industries | | 10.7 @ 1 |
 | usmegastore.com | CN-5703 | 11.72 | 1 | In Stock | | Bud Industries | | 11.72 @ 1 |
 | Radwell | CN-5703 | 12.0 | 12 | In Stock | | BUD INDUSTRIES | | 12.0 @ 12 |
 | National Supply Network | B562719 | 18.75 | 11 | In Stock | | Bud Industries Inc | | 18.75 @ 11 |
