- mpnNBB-10245
- brandname: Bud Industries
- manufacturername: Bud Industries

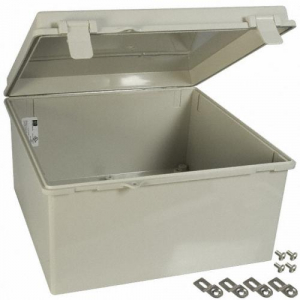

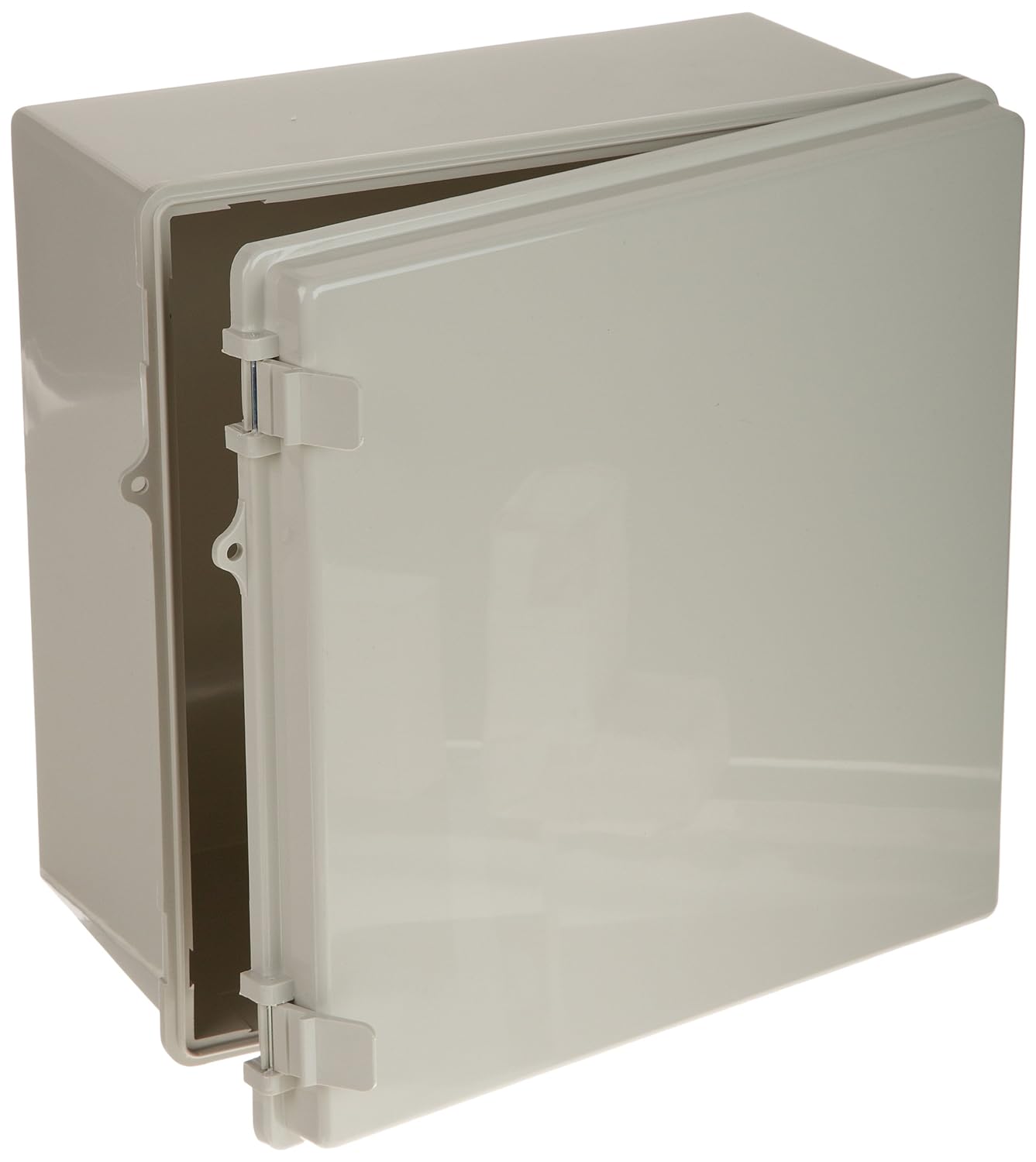

BUD Industries NBB-10245 Style B Plastic Indoor Box 13.01" L x 13" W x 7.04" H, Gray
- Brand: Bud
- PartNumber: NBB-10245
- Model: NBB-10245
- Color: Opaque Door
- Size: 13" Length x 13" Width x 7-1/32" Height
- PackageQuantity: 1
- Binding: Unknown Binding
- Manufacturer: BUD Industries
- Label: BUD Industries
Attributes
| Key | Value |
|---|
| Approximate Depth | 4" (102mm) |
| Approximate Height | 13" (330mm) |
| Approximate Width | 13" (330mm) |
| Area (L x W) | 169in? (1090cm?) |
| Body Color | Light Grey |
| Body Finish | Light Gray |
| Category | Boxes, Enclosures, Racks |
| Color | Gray |
| Composition | Non-Metallic |
| Configuration | Without Knock-Outs |
| Container Type | Box |
| Cover Color | Light Grey |
| Cover Design | Hinged |
| Depth | 13 in |
| Description | BOX ABS GRAY 13.010"L X. |
| Design | Hinged Door, Lid |
| Detailed Description | Box Plastic, ABS/PC Ble. |
| Digi-Key Part Number | 377-1143-ND |
| Dimensions | 13 x 13 x 7 . ; 330 x 3. |
| Dimensions (H x W x D) | 13 x 13 x 7.04" |
| Door | Solid |
| Door Design | Hinged (Single Door) |
| Enclosure Mounting | Wall Mount |
| Family Series | Bud Industries Enclosur. |
| Features | Non-Metallic Hinges, PC. |
| Finish | Light Gray, ANSI 65 Gray |
| Gasket Material | Polyurethane |
| Gross Weight | 0 lbs |
| Height | 7.042" (178.87mm) |
| Inner Panel | Sold Separately |
| IP Rating | IP66 |
| Item Number | NBB-10245 |
| Latching Mechanism | Latch |
| Length | 13.01 in |
| Locking Feature | Latch |
| Manufacturer | Bud Industries |
| Manufacturer Part Number | NBB-10245 |
| Manufacturer Product Nu. | NBB-10245 |
| Manufacturer Standard L. | 11 Weeks |
| Material | ABS/Polycarbonate Blend. |
| Material Flammability R. | UL94 5VB |
| Mfr | Bud Industries |
| Mounting | Wall |
| NEMA Rating | NEMA 4X |
| NEMA Type | 4, 4X, 12 and 13 |
| Net Weight | 0 lbs |
| Nominal Depth | 7 " |
| Nominal Height | 13 " |
| Nominal Width | 13 " |
| Package | Bulk |
| Product Series | NBB Series |
| Product Status | Active |
| Ratings | IP66, NEMA 1,2,3,3R,4,4. |
| RoHS | Yes |
| Series | NBB, NBB Series |
| Shipping Info | Shipped from Digi-Key |
| Size | Medium |
| Size / Dimension | 13.010" L x 13.000" W (. |
| Special Features | Hinged |
| Standards | NEMA Specification, UL,. |
| Temperature Range | -40 to 70 C |
| Thickness | 0.128" (3.25mm) |
| Type | Junction Box |
| Weight | 4.4 lbs (2 kg) |
| Width | 0 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | ExcessParts.Net | NBB10245 | 30.4 | 1 | 1 | | BUD INDUSTRIES | | 30.4 @ 1 |
| Hawk Electronics | NBB-10245 | 62.2 | 1 | In Stock | | BUD | | 62.2 @ 1 |
 | Solutions Direct | NBB-10245 | 65.38 | 1 | In Stock | | Bud Industries | | 65.38 @ 1 |
| Onlinecomponents.com | NBB-10245 | 68.36 | 1 | 3 | | BUD INDUSTRIES | | 68.36 @ 1 |
 | Amazon | B005T57FH2 | 70.19 | 1 | In Stock | | BUD Industries | | 70.19 @ 1 |
| Hotenda | H17198 | 75.2 | 1 | In Stock | | BUD Industries, Inc. | | 75.2 @ 1 |
 | usmegastore.com | NBB-10245 | 75.35 | 1 | In Stock | | Bud Industries | | 75.35 @ 1 |
 | Galco | NBB-10245-BUDI | 77.86 | 1 | In Stock | | Bud Industries | | 77.86 @ 1 |
| Verical | NBB-10245 | 80.93 | 1 | 3 | | Bud Industries | | 80.93 @ 1 |
 | Digi-Key | 387062 | 83.0 | 1 | 1 | | Bud Industries | 4.4 | 83.0 @ 1 |
| Mouser | 563-NBB-10245 | 83.0 | 1 | 1 | | Bud Industries | | 83.0 @ 1 |
 | Newark | 83F6456 | 85.34 | 1 | 290 | | BUD INDUSTRIES | | 85.34 @ 1 |
 | National Supply Network | B561974 | 86.73 | 2 | In Stock | | Bud Industries Inc | | 86.73 @ 2 |
 | jensentools.com | 10013512 | 89.93 | 1 | 342 | | Bud Industries | | 89.93 @ 1 |
| us.rs-online.com | 70148560 | 90.23 | 1 | 179 | | Bud Industries | | 90.23 @ 1 |
