Burndy YAV4CLTC14FX

mpnBURYAV4CLTC14FX
brandname: Burndy
manufacturername: Burndy

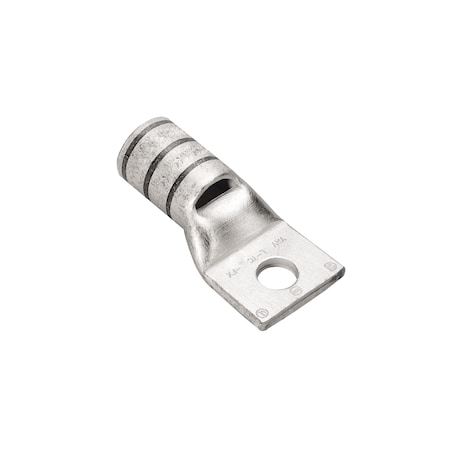

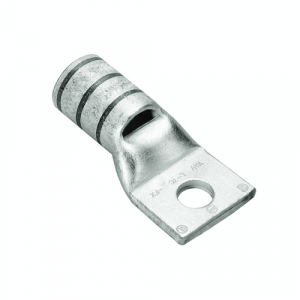

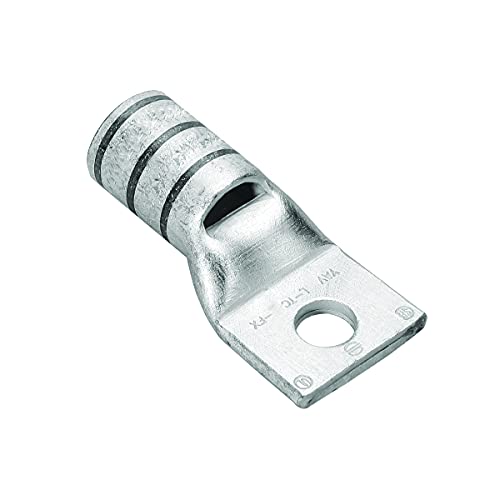

Burndy YAV4CLTC14FX Compression Lug 518502 (Pack of 20)

Brand: Burndy
PartNumber: YAV4CLTC14FX
PackageQuantity: 1
Manufacturer: Burndy
Label: Burndy

Attributes

Key	Value
Application	Wire Termination
Approvals	CSA, UL
Brand	Burndy-US, a Hubbell af.
Catalog Number	YAV4CLTC14FX
Certification - CSA App.	Yes
Certification - cULus	No
Certification - UL Reco.	No
Color	Gray
Color Code	Gray
Color Family	Gray
Conductor - Copper DLO .	5 (91/#24) DLO;4 (105/#.
Conductor - Copper DLO .	5 (91/#24) DLO-4 (105/#.
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Flex.	4 AWG
Conductor - Copper Soli.	4 AWG
Conductor - Copper Soli.	4 AWG
Conductor - Copper Str .	40 (19) Navy;50 (19) Na.
Conductor - Copper Str .	40 (19) Navy-50 (19) Na.
Conductor - Copper Str .	4 AWG
Conductor - Copper Str .	4 AWG
Conductor - CopperWeld .	4 A AWG;4 D AWG;4 N AWG.
Conductor - CopperWeld .	4 A AWG-4 P AWG
Conductor - Material	Copper
Conductor Material	Conductor Material
Connector Type	Terminal
Country of Origin	United States, US - Uni.
Country of Origin (subj.	Unknown
Die Color	Gray
Die Index	8
Dimension - B Length fr.	1/2 in
Dimension - B Length in.	0.50 in
Dimension - Bolt Hole S.	0.27 in
Dimension - D inch	0.64 in
Dimension - Hole Size i.	0.27 in
Dimension - Hole Size mm	7 mm
Dimension - L Length Ov.	37 mm
Dimension - Length Over.	1.44 in
Dimension - N inch	0.31 in
Dimension - Outside Dia.	0.38 in
Dimension - Pad Width i.	0.55 in
Dimension - Strip Lengt.	1/2
Dimension - Stud Size i.	1/4
Dimension - Z inch	0.33 in
ECCN	EAR99
Family Series	Burndy Terminals, YAV-L.
Feature - Barrel Style	Chamfered
Feature - Barrel Type	Standard
Finish	Electro Tin-Plated
Gross Weight	0.022 lbs
Insulated	Non-Insulated
Item Number	YAV4CLTC14FX
Item Type	3A, Standard Barrel, Ti.
Lug Wire Size	4 AWG
Made in USA	Yes
Manufacturer	Burndy, Burndy, a Hubbe.
Manufacturer Part Number	YAV4CLTC14FX
Material	Copper
Max Temp	194 ?F
Net Weight	0 lbs
Number of Holes	Number of Holes
Physical Attribute - Nu.	1
Physical Attribute - To.	Straight
Physical Attribute - To.	Standard
Plated	Y
Plating Material	Electro-Tin
Plating Type	Tin - Electro Plated
Product Series	YAV-L-FX
Rating - KVA	35 kV
Rating - Minimum Voltage	600
Special Features	Features: UL Listed 90 .
Standard	UL 486A-486B
Standards - RoHS Compli.	CM
Stud Size	Stud Size, 1/4 in.
Sub Brand	HYLUG
Temperature Rating	194
Terminal Material	Copper
Terminal Type	Barrel - Standard
Tongue Width	0.71 "
Type	Standard Barrel, Tin Pl.
UL Listed	Yes
UNSPSC	39121405
UPC	781810022573
UPC Code	781810022573
Voltage - Maximum	35000
Voltage Rating	35
Volts	600 V
Wire Size	4 AWG, Wire Size
Wire Size (AWG)	4 AWG
Wire Strip Length	0.5 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
amerisponse.com	720887	2.78	1	20		BURNDY / Hubbell		2.78 @ 20
mecampbell.com	BURYAV4CLTC14FX	3.25	1	20	33	Burndy		3.25 @ 20
kirbyrisk.com	2018922	4.39	1	20		Burndy		4.39 @ 20
usmegastore.com	YAV4CLTC14FX	4.62	1	20		Burndy		4.62 @ 20
Graybar	92038651	5.5776	1	20		Burndy		5.5776 @ 20
us.rs-online.com	71495844	5.61	1	20		BURNDY		5.61 @ 20
Zoro	G3471728	5.78	25	20	35	Burndy		5.78 @ 25
Galco	YAV4CLTC14FX-BURN	6.53	1	20		Burndy	0.022	6.53 @ 20
crescentelectric.com	204214	7.07	1	20		Burndy-US, a Hubbell affiliate		7.07 @ 20
