Burndy C22HD4/0DB

B00CBLB4QU

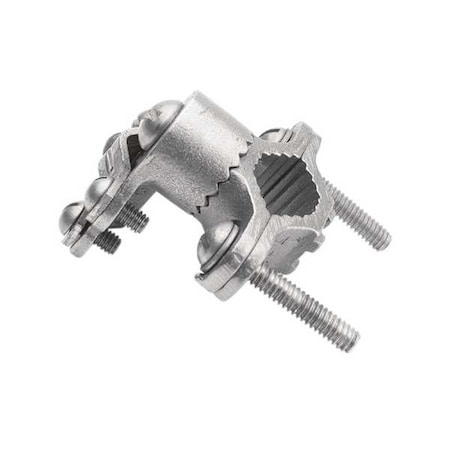

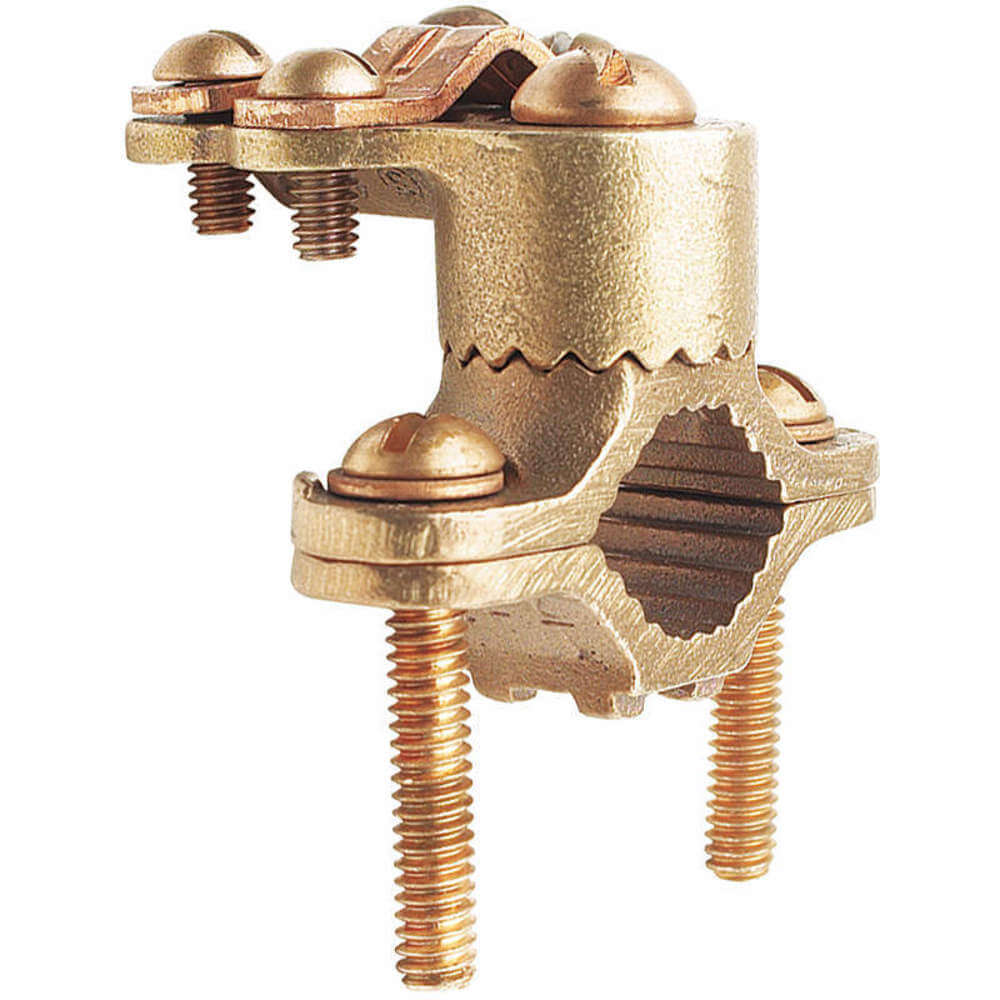

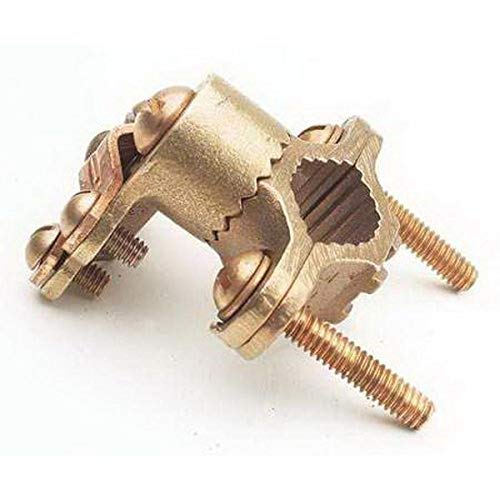

Burndy C22HD4/0DB Cast Bronze Ground Clamp, 1.56" Width, 3.60" Length, 2.70" Height

Burndy C22HD4/0DB Cast Bronze Ground Clamp, 1.56" Width, 3.60" Length, 2.70" Heightzoom

Attributes

Key Value
Accessory TypeGround Clamp
ApplicationFor Connecting Groundin.
ApprovalsUL
Conductor - Copper Str .8 AWG;7 AWG;6 AWG;5 AWG.
Conductor - Copper Str .8 AWG-4/0 AWG
Conductor - Pipe EMT Si.1 1/4 in;1 1/2 in;2 in
Conductor - Pipe EMT Si.1 1/4 -2
Conductor Size4/0 AWG to 8 AWG
Conductor Size Range8 AWG - 4/0 AWG
Country of OriginIN - India
Description/Special Fea.Direct Burial, EMT or R.
Dimension - Height frac.2.89 in, 2.888888888888.
Dimension - Height inch2.89 in
Dimension - L Length Ov.67 mm
Dimension - Length Over.2.65 in
Dimension - Length Over.67 mm
Dimension - Width inch1.41 in
Dimension - Width mm36 mm
Direct BurialYes
ECCNEAR99
Family SeriesBurndy Grounding
For Maximum Ground Cond.4/0 AWG
For Maximum Pipe Size2 in
For Minimum Ground Cond.8 AWG
For Minimum Pipe Size2 in
For Use WithCable, Copper Conductor.
Gross Weight0.0388 lbs
Grounding Wire Size8 to 4/0 AWG STR
Grounding Wires Connect.1 1/4 in to 2 in Pipe
Installation Torque Rec.50 Lbs/in
ItemGrounding Connector
Item - Grounding Connec.Grounding Connector
Item NumberC22HD4/0DB
ManufacturerBurndy
Manufacturer Part NumberC22HD4/0DB
MaterialBronze Alloy, Bronze
Material - HardwareZinc Plated Steel
Maximum Conductor Size4/0 AWG
Minimum Conductor Size8 AWG
MountingDirect on Pipe, Direct .
Net Weight0.62 lbs
Number of Conductors1
Number of Wires - Groun.1
Overall Height2 7/8 in
Overall Length2 21/32 in
Overall Width1 13/32 in
Package Quantity1
PlatedN
Plating TypeZinc
Rod Dia.1-1/4" to 2" Pipe
StandardsUL Direct Burial, UL467
Sub BrandClamp
Torque50 in-lb
TypeWater Pipe Gounding Con.
Type - Grounding Connec.Mechanical
UNSPSC39121408
Wire Size - Grounding8 to 4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG465479735.79180Burndy0.6535.79 @ 1
thumbzoomMegadepotC22HD4/0DB45.931In StockBurndy45.93 @ 1
thumbzoomusmegastore.comC22HD4/0DB45.931In StockBurndy45.93 @ 1
AmazonSCB00CBLB4QU46.011In StockBurndy46.01 @ 1
Graybar2208115846.82721In StockBurndy46.8272 @ 1
grainger.caWWG22C03461.65721971In StockBURNDY0.6561.6572197 @ 1
thumbzoomGalcoC22HD4/0DB-BURN66.191In StockBurndy0.6266.19 @ 1
kirbyrisk.com340697286.491In StockBurndy86.49 @ 1
thumbzoomRaptor SuppliesAB6QYH90.7958611In StockBURNDY90.795861 @ 1
