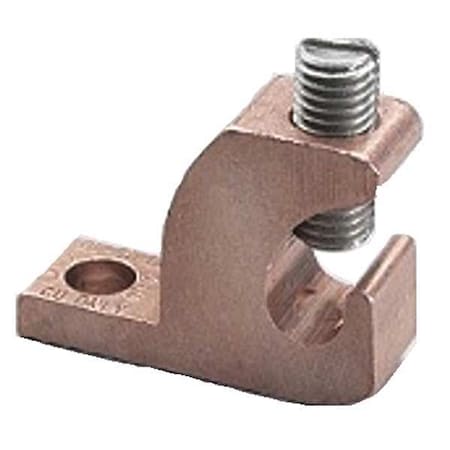

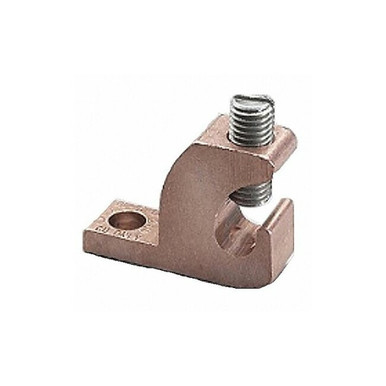

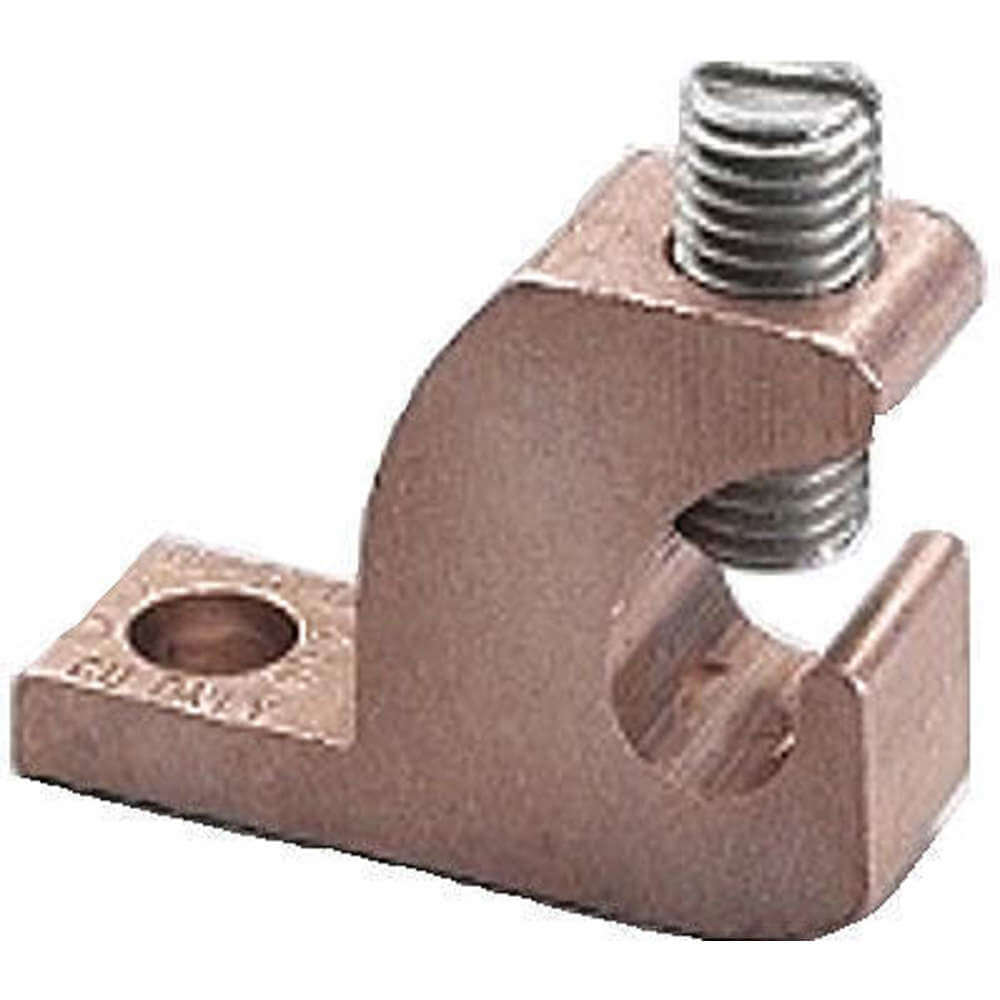

Burndy CL501TN

B008SE4DNA

Mechanicl Conn, Terminal, 4 to 14 AWG, PK10

Mechanicl Conn, Terminal, 4 to 14 AWG, PK10zoom

Attributes

Key Value
ApplicationFor Direct Burial Appli.
ApprovalsCSA, UL
Body MaterialCopper
BrandBurndy
Certification - UL List.Y
ColorCopper
Compatible with Product.Grounding Equipments
Compression StyleLay-In Bolt Lug
Conductor - Copper Soli.14 AWG;13 AWG;12 AWG;11.
Conductor - Copper Soli.14 AWG-4 AWG
Conductor - Copper Str .14 AWG;12 AWG;10 AWG;9 .
Conductor - Copper Str .14 AWG-4 AWG
Conductor Size Range14 - 4 AWG
Conductor TypeCU C Str-Size
Connector TypeLay-In Lug
Contact FinishTin
Country of OriginIN - India
Current Stock22
Dimension - D inch0.47 in
Dimension - Height inch0.85 in
Dimension - Hole Size i.0.22 in
Dimension - Hole Size mm6 mm
Dimension - L Length Ov.29 mm
Dimension - Length Over.1.13 in
Dimension - N inch0.19 in
Dimension - Stud Size i.17/64
Dimension - Width inch0.38 in
Dimension - Width mm10 mm
Direct BurialYes
ECCNEAR99
Family SeriesBurndy Grounding, CL50 .
For Conductor MaterialCopper
For Stranded Copper Wir.4 AWG
For Stranded Copper Wir.14 AWG
For Stud Size#10
For Use WithCable
For Wire Size12 AWG, 14 AWG, 4 AWG, .
Gross Weight0.0038 lbs
Head StyleSlotted
Hole Diameter0.22 in
Hole SpacingNot Applicable
Industry Standard(s)UL467
International ShippingNo
ItemMechanical Connector
Item NumberCL501TN
Lead TimeExpected to ship in 1-2.
Length1.13 in
Length (Straight Wirewa.1.13 in
Lug Wire Size14-4 AWG
ManufacturerBurndy
Manufacturer Part NumberCL501TN
MaterialCopper
Material - HardwareStainless Steel
Max. Conductor Size4 AWG Solid/Stranded
Maximum Conductor Size4 AWG
Min. Conductor Size14 AWG Stranded/Solid
Minimum Conductor Size14 AWG
MpnCL501TN
Net Weight0.06 lbs
No. of Conductors1
No. of Holes1
Number of Conductors1
Number of Holes1
Number of Mounting Holes1
Overall Depth13/16 in
Overall Length1.13 in
Overall Width0.85 in
Product SeriesCL50
RoHSYes
Screw MaterialStainless Steel
SKUZO-G4672175
Special FeaturesDirect Burial Applicati.
StandardsUL, CSA, CSA Certified,.
Stud Size#10
SubCategoryElectrical
Tongue Length0.47 in
Tongue Thickness0.15 in
Tongue Width0.38 in
TypeOpen-Faced
UNSPSC39121408
UPC781810558478
UPC Code781810352342
Use WithCopper Conductors
Width0.85 in
Wire Size Ranges14 AWG - 4 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomSpecialized Products109X0685.1816Burndy5.18 @ 6
us.rs-online.com714861439.87188BURNDY9.87 @ 6
thumbzoomGalcoCL501TN-BURN10.231006Burndy0.0610.23 @ 100
kirbyrisk.com245864010.9616Burndy10.96 @ 6
thumbzoomZoroG467217564.59140Burndy0.6564.59 @ 6
thumbzoomsimsupply.comZO-G467217576.55122Burndy76.55 @ 6
grainger.caWWG22C010104.6684832616BURNDY0.65104.66848326 @ 6
thumbzoomRaptor SuppliesAB6QXG146.316982516BURNDY146.3169825 @ 6
thumbzoomgordonelectricsupply.comCL501TN783.016BURNDY783.0 @ 6
