Burndy YA1CLB

B00BKAGQP2

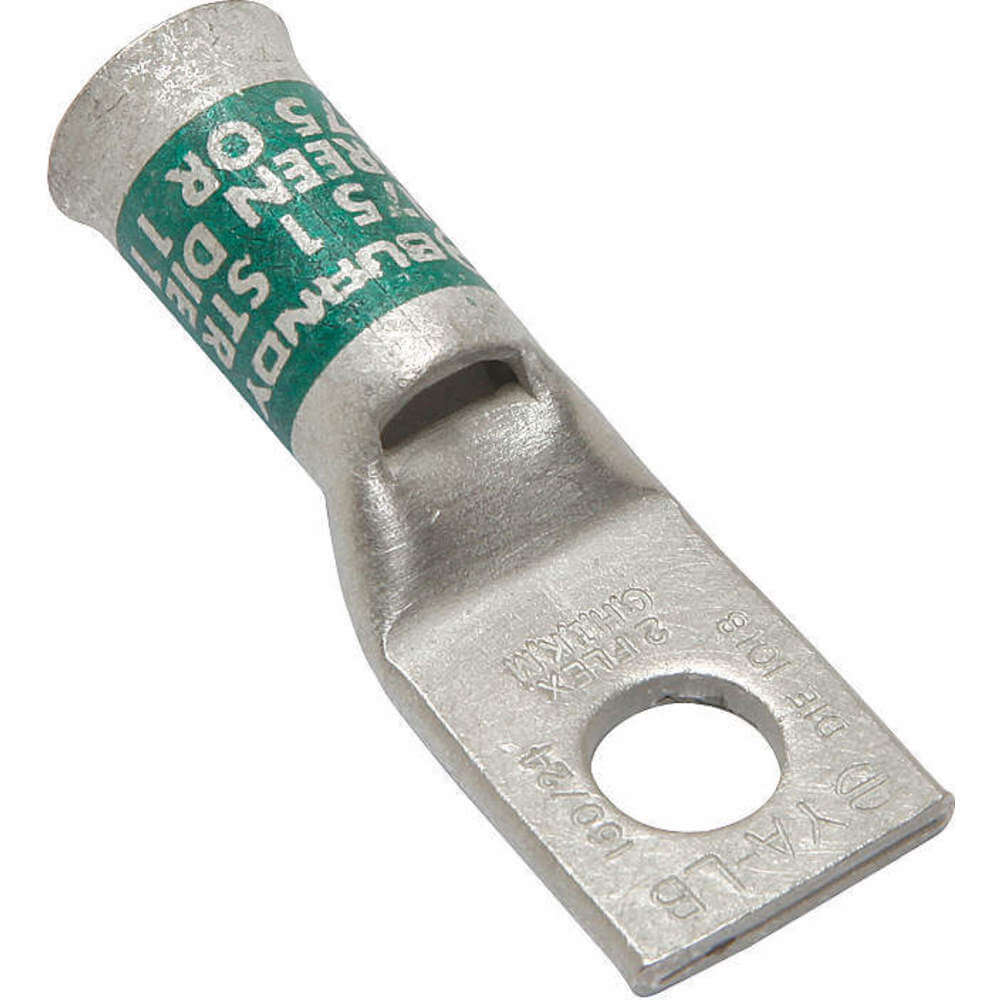

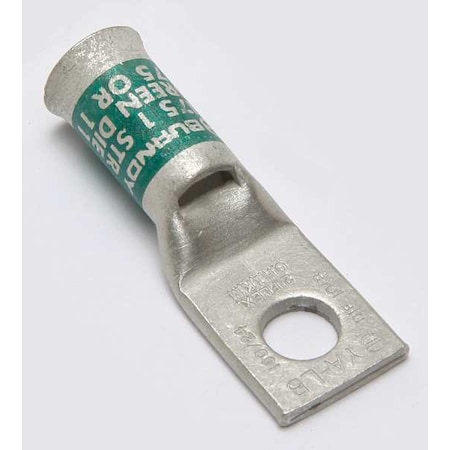

One Hole Lug Compression Connector, 2 AWG

One Hole Lug Compression Connector, 2 AWGzoom

Attributes

Key Value
ApplicationFor Flex Conductor
ApprovalsCSA, UL
Barrel LengthShort
BrandBurndy
Cable Size2 AWG
ColorGreen
Color CodeGreen
Conductor - Copper DLO .2 (150/#24) DLO
Conductor - Copper DLO .2 (150/#24) DLO
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Flex.2 AWG
Conductor - Copper Soli.1 AWG
Conductor - Copper Soli.1 AWG
Conductor - Copper Str .75 (37) Navy
Conductor - Copper Str .1 AWG
Conductor - Copper Str .1 AWG
Conductor Size1 AWG
Connector TypeTerminal, Short Barrel
Current Stock3
Die Code1,018
Die Index11
Dimension - B Length fr.7/8 in
Dimension - B Length in.0.87 in
Dimension - Bolt Hole S.0.33 in
Dimension - Bolt Size f.2023-05-16
Dimension - Bolt Size i.0.3125
Dimension - Hole Size f.2023-05-16
Dimension - Hole Size i.0.331 in
Dimension - Hole Size mm8 mm
Dimension - L Length Ov.50 mm
Dimension - Length Over.1.97 in
Dimension - N inch0.34 in
Dimension - Outside Dia.0.46 in
Dimension - Pad Width i.0.68 in
Dimension - Strip Lengt.15/16
Dimension - Stud Size f.2023-05-16
Dimension - Z inch0.36 in
Family SeriesBurndy Terminals, YA-LB.
Feature - Barrel StyleBelled
Feature - Barrel TypeStandard
For Wire Size1 AWG
Gross Weight0.0029 lbs
Hole Center to End0.34 in
InsulatedNon-Insulated
International ShippingNo
ItemOne-Hole Lug Compressio.
Item NumberYA1CLB
Lead TimeExpected to ship in 1-2.
Length1.97"
Length (Straight Wirewa.1.97 in
ManufacturerBurndy
Manufacturer Part NumberYA1CLB
MaterialCopper, Tin-Electro Pla.
Max Temp194 ?F
MpnYA1CLB
Net Weight0 lbs
Peep HoleYes
Physical Attribute - Nu.1
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating MaterialElectro-Tin
Plating TypeElectro-Tin plated
Product SeriesYA-LB
SKUZO-G4650527
StandardsCSA Certified, UL Liste.
Standards - Industry St.UL468A-468B
Stud Size5/16 in
SubCategoryElectrical
Terminal MaterialCopper
Terminal TypeBarrel - Standard
Tongue StyleStandard
Tongue Width Ranges0.51 - 0.75 inches
Trade NameHYLUG?
TypeStandard Belled Barrel,.
UPC781810555958
UPC Code781810500521
Volts600 V
Width0.68"
Wire Size1 AWG
Wire Size (AWG)1 AWG
Wire Size Range1 AWG - 1 AWG
Wire Size Ranges1 AWG - 1 AWG
Wire Strip Length0.3125 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepotYA1CLB9.581In StockBurndy9.58 @ 1
thumbzoomusmegastore.comYA1CLB9.581In StockBurndy9.58 @ 1
thumbzoomZoroG465052712.19186Burndy0.0112.19 @ 1
us.rs-online.com7148698012.2310In StockBURNDY12.23 @ 10
thumbzoomGalcoYA1CLB-BURN13.3810In StockBurndy0.002913.38 @ 10
thumbzoomRaptor SuppliesAB6RMD17.33009851In StockBURNDY17.3300985 @ 1
thumbzoomsimsupply.comZO-G465052720.8713Burndy20.87 @ 1
