Burndy YA2C-2N

B008SDDIVY

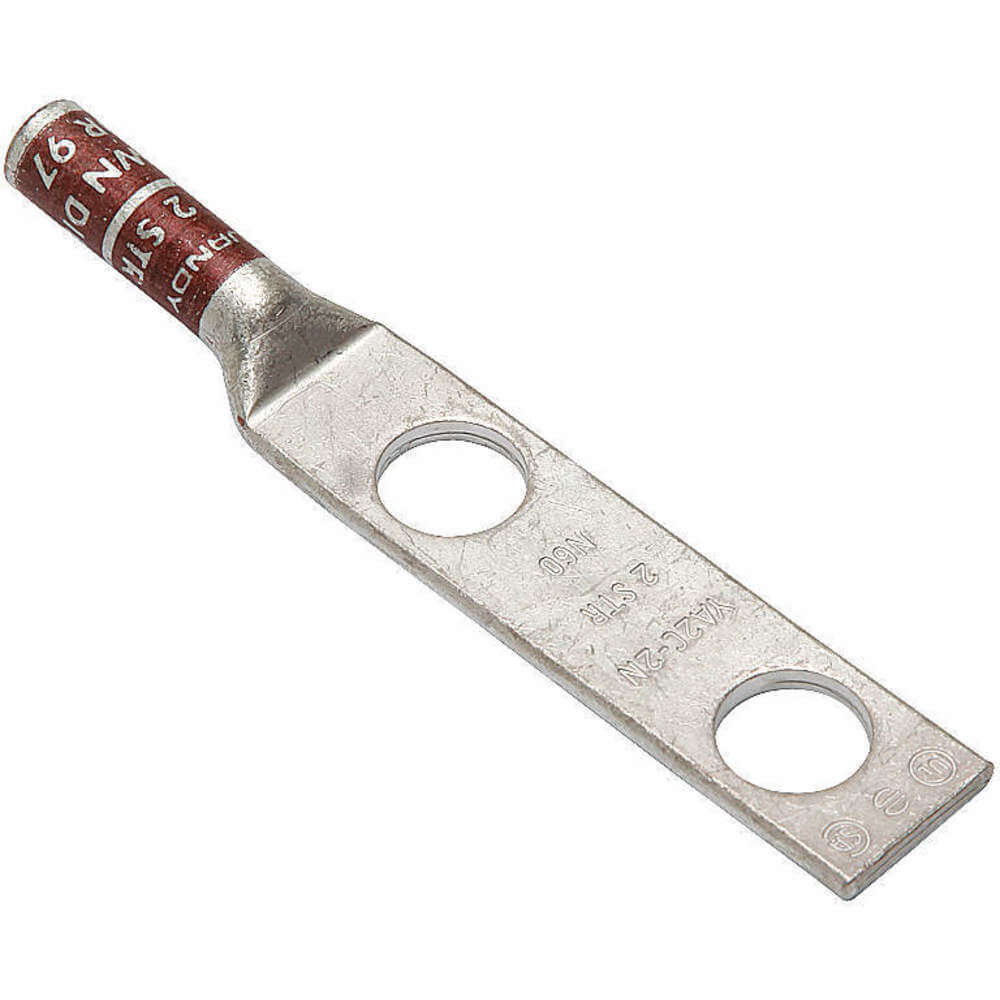

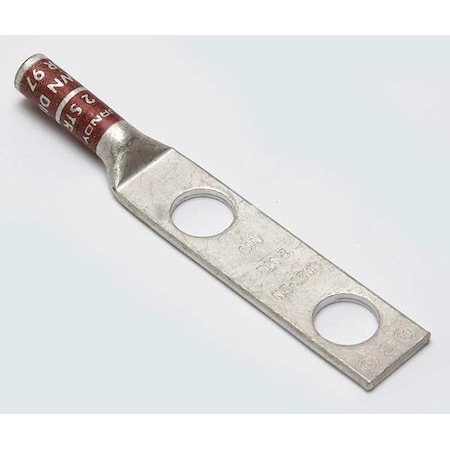

BURNDY YA2C-2N 50/pkg 2 STR N60

BURNDY YA2C-2N 50/pkg 2 STR N60zoom

Attributes

Key Value
ApplicationFor Code Conductor, Wir.
ApprovalsCSA, UL
Barrel Diameter1.25 Inch
Barrel LengthLong, 1.25
Barrel Outside Diameter0.42 in
Barrel SizeLong
Barrel StyleChamfered
Barrel TypeLong, Chamfered, withou.
BrandBurndy-US, a Hubbell af.
Brand NameBurndy
Cable Size2 AWG
Catalog NumberYA2C2N
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorBrown
Color CodeBrown
Color FamilyBrown
Colour CodeBrown
Conductor - Copper Str .60 (37) Navy
Conductor - Copper Str .2 AWG
Conductor - Copper Str .2 AWG
Conductor - MaterialCopper
Conductor Size2 AWG
Connector TypeTerminal, Straight Barr.
Contact FinishTin
Country of OriginUnited States, US - Uni.
Country Of OriginUnited States of America
Cross Reference Products54811BE
Current Stock197
Die Code10
Die ColorBrown
Die Index10

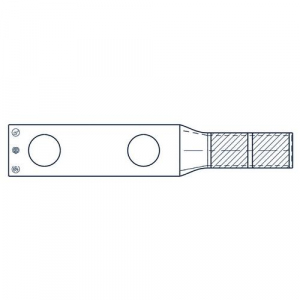

Dimension - B Length in.1.25 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1 to 2, 1/2
Dimension - Bolt Size i.0.5
Dimension - D inch3.02 in
Dimension - Hole Size f.1 to 2
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.118 mm
Dimension - Length Over.4.64 in
Dimension - N inch0.63 in
Dimension - Outside Dia.0.42 in
Dimension - Pad Width i.0.83 in
Dimension - Strip Lengt.42374, 1-5/16
Dimension - Stud Size f.1 to 2
Dimension - Stud Size i.1 to 2, 1/2
Dimension - Z inch0.64 in
E1.75
ECCNEAR99
Energy Star FlagNo
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
FinishTin-Plated, Electro Tin.
For Conductor MaterialCopper
For Stranded Copper Wir.2 AWG
For Stranded Copper Wir.2 AWG
For Stud Size1/2 in
For Wire Size2 AWG
For Wire TypeStranded
Gross Weight0.105 lbs
GTIN00781810500866
Hole Center to Center1.75 in
Hole Center to End0.63 in
Hole Size0.56 in
Industry Standard(s)UL468A-468B
Inspection HoleNo
InsulatedNon-Insulated
Insulation MaterialNo
International ShippingNo
ItemTwo-Hole Lug Compressio.
Item NameCompression Lug
Item NumberYA2C2N
Item Type3A, Long Barrel, Tin Pl.
Lead TimeExpected to ship in 1-2.
Length4.64"
Length (Straight Wirewa.4.65 in
Lug Compression Connect.Two-Hole Lug Compressio.
Lug Wire Size2 AWG
Made In AmericaYes
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer NameBurndy
Manufacturer Part NumberYA2C2N
MaterialCopper
Maximum Operating Tempe.194 Degrees F
Maximum Voltage35 kVAC, 35 kV AC
Minimum Pack Quantity1
MpnYA2C2N
Net Weight0.105 lbs
Number of Holes2, 2.0000
Overall Length4.64, 4.64 in
Overall Width0.83 in
Peep HoleNo
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYA
Rating - KVA35 kV
Rating - Minimum Voltage600
RoHS CompliantYes
RoHS FlagYes
SKUZO-G4706107
Special FeaturesTerminal, Features: UL .
StandardUL 486A-486B
StandardsCSA Certified, UL 486A-.
Standards - Industry St.UL468A-468B
Standards - RoHS Compli.CM
Strip Length1-5/16 Inch, 1 5/16 in
Stud Hole Spacing1.75 in., 1.75
Stud Size1/2 in., 1/2 in, 1/2 In.
Stud Spacing1.75
Sub BrandHylug?, HYLUG
SubCategoryElectrical
Temperature Rating194, 194 deg F (90 deg .
Terminal MaterialCopper
Terminal TypeRing
Termination StyleCrimp
Tongue AngleStraight
Tongue Length1.27 in
Tongue Size0.83 Inch Width x 0.12 .
Tongue StyleStandard
Tongue Thickness0.12 in
Tongue TypeStraight, Standard
Tongue Width0.81 ", 0.83 in
Tongue Width Ranges0.76 - 1.00 inches
Trade NameHylug?, HYLUG?
TypeYA-2N, Long Barrel, Tin.
UL ListedYes
UNSPSC39121405
UPC781810500866, 781810559.
UPC 12 Digit7818105008666
UPC Code781810500866
Use WithCopper
Voltage - Maximum35000
Voltage Rating600 Volt - 35 Kilo-Volt.
Width0.83"
Wire Size2 AWG
Wire Size (AWG)2 AWG
Wire Size Range2 AWG - 2 AWG
Wire Strip Length1.437 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com195127.08150BURNDY7.08 @ 50
thumbzoomSpecialized Products109X3547.6715025Burndy7.67 @ 50
thumbzoomgordonelectricsupply.comYA2C-2N9.11150BURNDY9.11 @ 50
Graybar880485859.78881149Burndy9.7888 @ 50
Monarch Electric7381010.94150Burndy10.94 @ 50
thumbzoomZoroG470610712.551136Burndy0.0512.55 @ 50
thumbzoomGalcoYA2C2N-BURN13.78150Burndy0.10513.78 @ 50
us.rs-online.com7148707813.99150BURNDY13.99 @ 50
thumbzoomMegadepotYA2C2N14.87150Burndy14.87 @ 50
thumbzoomusmegastore.comYA2C2N14.87150Burndy14.87 @ 50
grainger.caWWG22C34019.87256828150BURNDY0.0519.87256828 @ 50
thumbzoomsimsupply.comZO-G470610720.821197Burndy20.82 @ 50
thumbzoommayerelectric.comBURYA2C2N22.69150BURNDY22.69 @ 50
thumbzoomRaptor SuppliesAB6RKE22.9168485150BURNDY22.9168485 @ 50
thumbzoomcrescentelectric.com9742457.33150Burndy-US, a Hubbell affiliate57.33 @ 50
