Burndy YA38L-2TC12

B00CBNQA6W

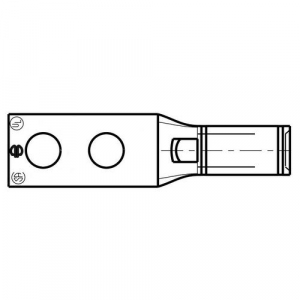

Burndy YA38L-2TC12 Two Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 700 kcmil Conductor, 1/2" Stud Hole Size, 1-1/2" Stud Hole Spacing, 1.81" Tongue Width, 4.67" Length, Pink (Pack of 6)

Burndy YA38L-2TC12 Two Hole Hylug Code Conductor Standard Barrel Copper Compression Terminal, 700 kcmil Conductor, 1/2" Stud Hole Size, 1-1/2" Stud Hole Spacing, 1.81" Tongue Width, 4.67" Length, Pink (Pack of 6)zoom

Attributes

Key Value
ApprovalsCSA, UL
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorPink
Color CodePink
Conductor - Copper DLO .N/A
Conductor - Copper Str .700 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Die Index400
Dimension - B Length fr.1-7/16 in
Dimension - B Length in.1.45 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - Hole Size i.0.52 in
Dimension - Hole Size mm13 mm
Dimension - L Length Ov.119 mm
Dimension - Length Over.4.67 in
Dimension - N inch0.53 in
Dimension - Outside Dia.1.25 in
Dimension - Pad Width i.1.84 in
Dimension - Strip Lengt.1-15/16
Dimension - Stud Size i.1/2
Dimension - Z inch0.55 in
Family SeriesBurndy Terminals, YA-L-.
Feature - Barrel TypeStandard
Gross Weight0 lbs
Industry Standard(s)UL468A-468B
InsulatedNon-Insulated
Item NumberYA38L2TC12
ManufacturerBurndy
Manufacturer Part NumberYA38L2TC12
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYA-L-2TC
Rating - KVA35 kV
Rating - Minimum Voltage600
Standards - RoHS Compli.CM
Stud Spacing1.5
Terminal MaterialCopper
Terminal TypeBarrel - Standard, Two .
Tongue Width1.81 "
Trade NameHYLUG?
TypeStandard Barrel, Tin Pl.
UL ListedYes
Voltage - Maximum35000
Volts600 V
Wire Size700 kcmil
Wire Size (kcmil)700 kcmil
Wire Strip Length1.9375 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com91462139.116BURNDY39.1 @ 6
thumbzoomSpecialized Products109X37743.2916Burndy43.29 @ 6
thumbzoomMegadepotYA38L2TC1285.3816Burndy85.38 @ 6
thumbzoomusmegastore.comYA38L2TC1285.3816Burndy85.38 @ 6
thumbzoomGalcoYA38L2TC12-BURN115.0666Burndy115.06 @ 6
