Burndy YA3C2N

B002FYCDMM

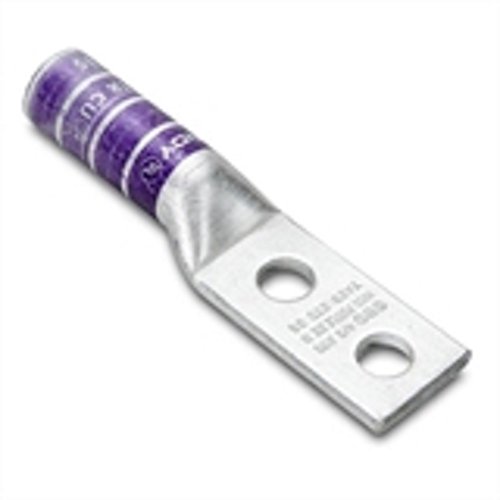

Burndy YA3C2N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, #3 Str. - #3 AWG - #2 Sol. Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 0.81" Tongue Width, 4.62" Length

Burndy YA3C2N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, #3 Str. - #3 AWG - #2 Sol. Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 0.81" Tongue Width, 4.62" Lengthzoom

Attributes

Key Value
ApplicationFor Code Conductor, Wir.
ApprovalsCSA, UL
BrandBurndy-US, a Hubbell af.
Catalog NumberYA3C2N
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorWhite
Color CodeWhite
Color FamilyWhite
Conductor - Copper Soli.2 AWG
Conductor - Copper Str .50 (19) Navy
Conductor - Copper Str .3 AWG
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Country of Origin (subj.United States
Die ColorWhite
Die Index9
Dimension - B Length fr.1-1/4 in
Dimension - B Length in.1.25 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.117 mm
Dimension - Length Over.4.62 in
Dimension - N inch0.63 in
Dimension - Outside Dia.0.38 in
Dimension - Pad Width i.0.83 in
Dimension - Strip Lengt.1-5/16
Dimension - Stud Size i.1/2
Dimension - Z inch0.64 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-2N.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
FinishElectro Tin-Plated
Gross Weight0.1 lbs
Industry Standard(s)UL468A-468B
InsulatedNon-Insulated
Item NumberYA3C2N
Item TypeLong Barrel, Tin Plated
Lug Wire Size2 AWG
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA3C2N
MaterialCopper
Max Temp194 ?F
Minimum Pack Quantity1
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin - Electro Plated
Product SeriesYA-2N
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
Standards - Industry St.UL468A-468B
Standards - RoHS Compli.CM
Stud Hole Spacing1.75 in.
Stud Size1/2 in.
Stud Spacing1.75
Sub BrandHYLUG
Terminal MaterialCopper
Terminal TypeBarrel - Long, Two Hole
Tongue Width0.81 "
Trade NameHYLUG?, HYLUG?
TypeLong Barrel, Tin Plated
UL ListedYes
UNSPSC39121405
UPC781810019375
UPC Code781810019375
Voltage - Maximum35000
Voltage Rating35
Volts600 V
Wire Size3 AWG
Wire Size (AWG)3 AWG
Wire Strip Length1.3125 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com855357.141In StockBURNDY7.14 @ 1
thumbzoomgordonelectricsupply.comYA3C2N10.381In StockBURNDY10.38 @ 1
thumbzoomKelly HayesYA3C2N11.04158Burndy11.04 @ 1
thumbzoomZoroG40243793714.341In StockBurndy14.34 @ 1
thumbzoomGalcoYA3C2N-BURN16.651In StockBurndy0.116.65 @ 1
thumbzoomusmegastore.comYA3C2N18.221In StockBurndy18.22 @ 1
Graybar9213373022.25441In StockBurndy22.2544 @ 1
us.rs-online.com7148724024.1611BURNDY24.16 @ 1
thumbzoommayerelectric.comBURYA3C2N24.731In StockBURNDY24.73 @ 1
thumbzoomcrescentelectric.com18122274.651In StockBurndy-US, a Hubbell affiliate74.65 @ 1
