Burndy YA3CLB

B00BKAFI7E

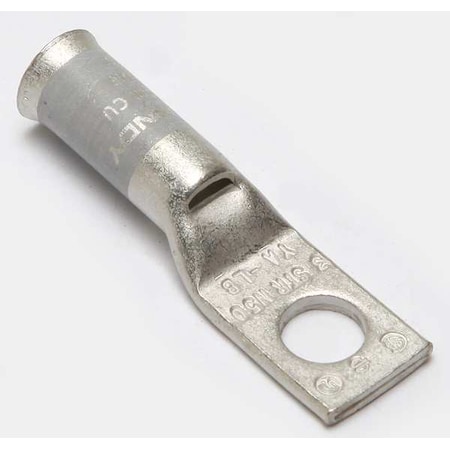

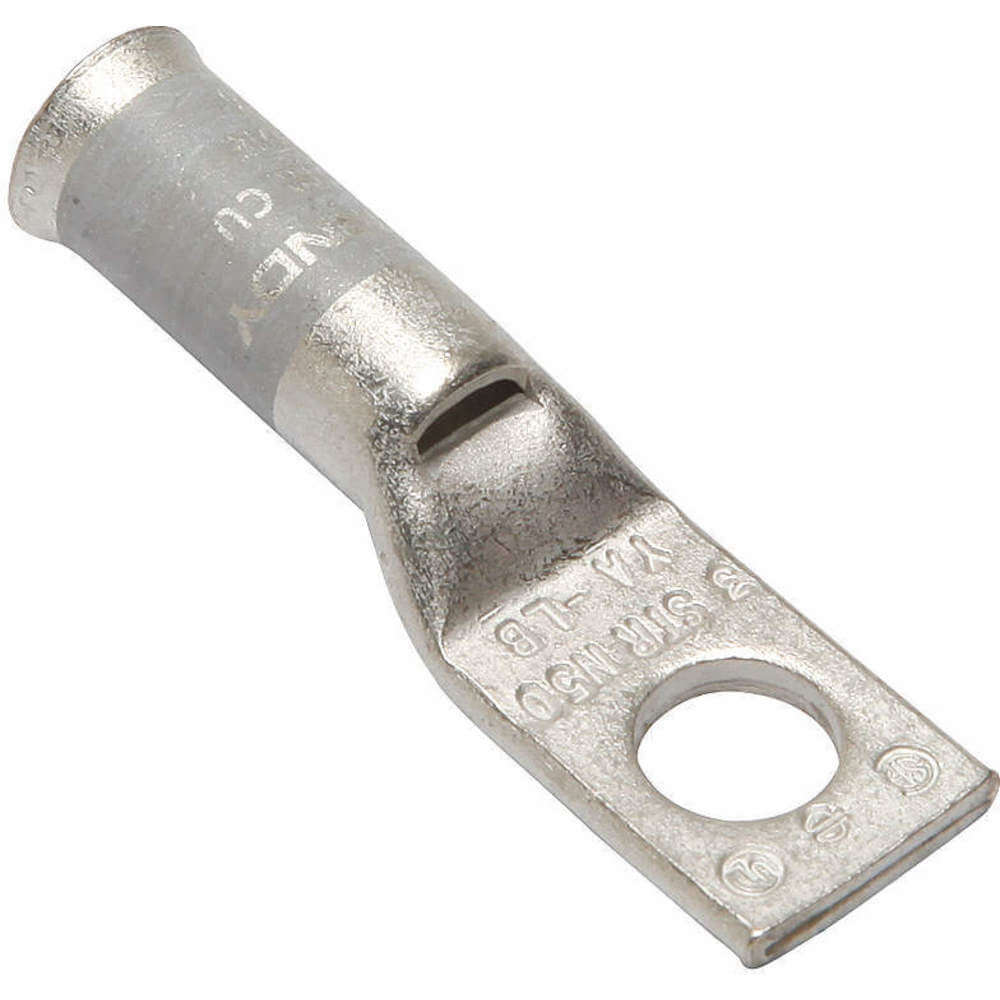

One Hole Lug Compression Connector, 4 AWG

One Hole Lug Compression Connector, 4 AWGzoom

Attributes

Key Value
ApplicationWire Termination, For F.
ApprovalsCSA, UL
Barrel LengthShort
BrandBurndy-US, a Hubbell af.
Cable Size4 AWG
Catalog NumberYA3CLB
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
ColorWhite
Color CodeWhite
Color FamilyWhite
Colour CodeWhite
Conductor - Copper DLO .4 (105/#24) DLO
Conductor - Copper Flex.4 AWG
Conductor - Copper Flex.4 AWG
Conductor - Copper Flex.4 AWG
Conductor - Copper Flex.4 AWG
Conductor - Copper Flex.4 AWG
Conductor - Copper Flex.4 AWG
Conductor - Copper Str .50 (19) Navy
Conductor - Copper Str .50 (19) Navy
Conductor - Copper Str .3 AWG
Conductor - Copper Str .3 AWG
Conductor - MaterialCopper
Conductor Size3 AWG
Conductor TypeCU C DLO-Size
Connector TypeTerminal, Belled Straig.
Country of OriginUnited States, US - Uni.
Cross Reference Products19000A, 19002A
Current Stock197
Die Code1,016
Die ColorWhite
Die Index9;1016

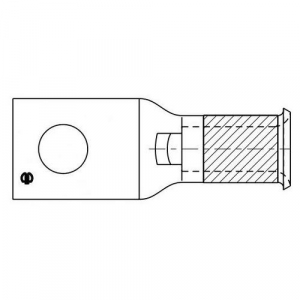

Dimension - B Length in.0.88 in
Dimension - Bolt Hole S.0.33 in
Dimension - Bolt Size f.2023-05-16
Dimension - Bolt Size i.0.3125
Dimension - D inch0.70 in
Dimension - Hole Size f.2023-05-16
Dimension - Hole Size i.0.33 in
Dimension - Hole Size mm8 mm
Dimension - L Length Ov.49 mm
Dimension - Length Over.1.92 in
Dimension - N inch0.34 in
Dimension - Outside Dia.0.38 in
Dimension - Pad Width i.0.55 in
Dimension - Strip Lengt.15/16
Dimension - Stud Size f.2023-05-16
Dimension - Z inch0.36 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-LB.
Feature - Barrel StyleBelled
Feature - Barrel TypeStandard
FinishElectro Tin-Plated
For Wire Size3 AWG
Gross Weight0.0017 lbs
GTIN00781810501306
Hole Center to End0.34 in
Industry Standard(s)UL468A-468B
InsulatedNon-Insulated
International ShippingNo
ItemOne-Hole Lug Compressio.
Item NumberYA3CLB
Item TypeStandard Belled Barrel,.
Lead TimeExpected to ship in 1-2.
Length1.92"
Length (Straight Wirewa.1.92 in
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA3CLB
MaterialCopper, Tin-Plated Copp.
Max Temp194 ?F
Minimum Pack Quantity1
MpnYA3CLB
Net Weight0 lbs
Peep HoleYes
Physical Attribute - Nu.1
Physical Attribute - To.Straight
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating MaterialElectro-Tin
Plating TypeTin Plated
Product SeriesYA-LB
Rating - KVA35 kV
Rating - Minimum Voltage600
SeriesYA-LB Series
SKUZO-G4697357
Special FeaturesFeatures: UL Listed 90 .
StandardUL 486A-486B
StandardsUL, CSA, UL467, CSA Cer.
Standards - Industry St.UL468A-468B
Standards - RoHS Compli.CM
Stud Size5/16 in., 5/16 in
Sub BrandHYLUG
SubCategoryElectrical
Temperature Rating194
Terminal MaterialCopper
Terminal TypeBarrel - Standard
Tongue StyleStandard
Tongue Width Ranges0.51 - 0.75 inches
Trade NameHYLUG?, HYLUG?
TypeStandard Belled Barrel,.
UL ListedYes
UNSPSC39121405
UPC781810501306, 781810555.
UPC 12 Digit7818105013066
Use WithCopper Conductor
Voltage - Maximum35000
Voltage Rating35
Volts600 V
Width0.55"
Wire Size3 AWG
Wire Size (AWG)3 AWG
Wire Size Range3 AWG - 3 AWG
Wire Size Ranges3 AWG - 3 AWG
Wire Strip Length0.3125 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMegadepotYA3CLB9.581In StockBurndy9.58 @ 1
thumbzoomZoroG46973579.791407Burndy0.019.79 @ 1
thumbzoomusmegastore.comYA3CLB9.981In StockBurndy9.98 @ 1
thumbzoommayerelectric.comBURYA3CLB11.621In StockBURNDY11.62 @ 1
grainger.caWWG22C38312.215314981In StockBURNDY0.0112.21531498 @ 1
thumbzoomGalcoYA3CLB-BURN13.381In StockBurndy0.001713.38 @ 1
thumbzoomcrescentelectric.com19009514.041In StockBurndy-US, a Hubbell affiliate14.04 @ 1
thumbzoomRaptor SuppliesAB6RMB17.48652751In StockBURNDY17.4865275 @ 1
thumbzoomsimsupply.comZO-G469735718.391197Burndy18.39 @ 1
kirbyrisk.com345310624.271In StockBurndy24.27 @ 1
Graybar90000961648.68161In StockBurndy648.6816 @ 1
