Burndy YA444N

B00CBKSANG

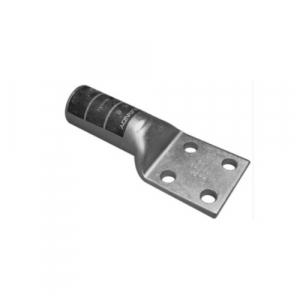

Burndy YA444N Four Hole Hylug Code Conductor, 1000 kcmil Conductor, 1/2" Stud Hole Size, 1.75" Stud Hole Spacing, 3" Tongue Width, 7.14" Length

Burndy YA444N Four Hole Hylug Code Conductor, 1000 kcmil Conductor, 1/2" Stud Hole Size, 1.75" Stud Hole Spacing, 3" Tongue Width, 7.14" Lengthzoom

Attributes

Key Value
ApplicationWire Termination
ApprovalsUL
BrandBurndy-US, a Hubbell af.
Catalog NumberYA444N
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorWhite
Color CodeWhite
Color FamilyWhite
Conductor - Copper Str .1000 kcmil
Conductor - Copper Str .1000 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Country of OriginUnited States, US - Uni.
Die ColorWhite
Die Index27
Dimension - B Length fr.3 in
Dimension - B Length in.3.00 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2 in
Dimension - D inch3.02 in
Dimension - F Width Cen.1.75 in
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.181 mm
Dimension - Length Over.7.14 in
Dimension - N inch0.63 in
Dimension - Outside Dia.1.50 in
Dimension - Pad Width i.3.00 in
Dimension - Strip Lengt.3-1/16 in
Dimension - Stud Size i.1/2 in
Dimension - Z inch0.64 in
ECCNEAR99
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
FinishTin-Plated
Gross Weight0.105 lbs
Industry Standard(s)UL468A-468B
InsulatedNon-Insulated
Item NumberYA444N
Item Type3B, Long Barrel, Tin Pl.
Lug Wire Size1000 kcmil
Made in USAYes
ManufacturerBurndy, Burndy, a Hubbe.
Manufacturer Part NumberYA444N
MaterialCopper
Net Weight0 lbs
Physical Attribute - Nu.4
Physical Attribute - To.Straight
PlatedY
Plating TypeTin
Product SeriesYA
Rating - KVA35 kV
Rating - Minimum Voltage600
Special FeaturesFeatures: 45 DEG And 90.
StandardUL 486A-486B
Standards - RoHS Compli.CM
Stud Hole Spacing1.75 in.
Stud Size1/2 in.
Stud Spacing1.75
Sub BrandHYLUG
Temperature Rating194
Terminal MaterialCopper
Terminal TypeBarrel - Standard, Four.
Tongue Width3 "
Trade NameHYLUG?
TypeLong Barrel, Tin Plated
UL ListedYes
UNSPSC39121405
UPC781810524015
Use WithCopper
Voltage - Maximum35000
Voltage Rating35
Wire Size1,000 kcmil
Wire Size (kcmil)1,000 kcmil
Wire Strip Length3.0625 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com85979100.561In StockBURNDY100.56 @ 1
AmazonB00CBKSANG109.771In StockBurndy109.77 @ 1
thumbzoomGalcoYA444N-BURN176.51In StockBurndy0.105176.5 @ 1
kirbyrisk.com2010882246.121In StockBurndy246.12 @ 1
thumbzoomMegadepotYA444N271.61In StockBurndy271.6 @ 1
thumbzoomusmegastore.comYA444N271.61In StockBurndy271.6 @ 1
Graybar95072396348.1521In StockBurndy348.152 @ 1
thumbzoomcrescentelectric.com3037121168.681In StockBurndy-US, a Hubbell affiliate1168.68 @ 1
