Burndy YA462N

B00CBNSMI6

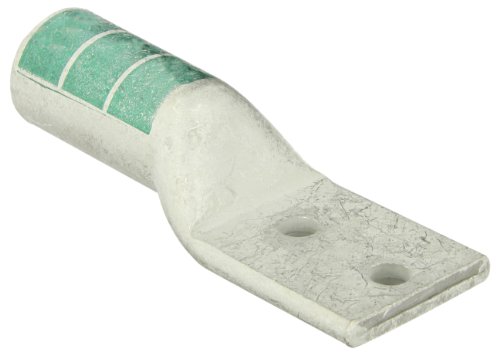

Burndy YA462N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 1500 kcmil Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 2.67" Tongue Width, 7.55" Length

Burndy YA462N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 1500 kcmil Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 2.67" Tongue Width, 7.55" Lengthzoom

Attributes

Key Value
ApprovalsCSA, UL
Certification - CSA App.Yes
Certification - cULusNo
Certification - UL Reco.No
ColorGreen
Color CodeGreen
Conductor - Copper Str .1500 kcmil
Conductor - MaterialCopper
Connector TypeTerminal
Die Index31
Dimension - B Length in.3.19 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - Hole Size i.0.56 in
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.192 mm
Dimension - Length Over.7.55 in
Dimension - N inch0.63 in
Dimension - Outside Dia.1.84 in
Dimension - Pad Width i.2.69 in
Dimension - Strip Lengt.3-1/4
Dimension - Stud Size i.1/2
Dimension - Thread Size1/2
Dimension - Z inch0.64 in
Family SeriesBurndy Terminals, YA Se.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Gross Weight0.155 lbs
Industry Standard(s)UL468A-468B
InsulatedNon-Insulated
Item NumberYA462N
ManufacturerBurndy
Manufacturer Part NumberYA462N
MaterialCopper
Net Weight0 lbs
Physical Attribute - Nu.2
Physical Attribute - To.Straight
Physical Attribute - To.Standard
PlatedY
Plating MaterialTin
Plating TypeTin plated
Product SeriesYA
Rating - KVA35 kV
Rating - Minimum Voltage600
RoHS CompliantYes
Standards - RoHS Compli.CM
Stud Spacing1.75
Terminal MaterialCopper
Terminal TypeRing
Tongue Width2.67 "
Trade NameHYLUG?
TypeLong Barrel, Tin Plated
UL ListedYes
Voltage - Maximum35000
Wire Size1,500 kcmil
Wire Size (kcmil)1,500 kcmil
Wire Strip Length3.25 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesYA462N147.64110Burndy147.64 @ 1
thumbzoomGalcoYA462N-BURN216.131In StockBurndy0.155216.13 @ 1
thumbzoomusmegastore.comYA462N266.71In StockBurndy266.7 @ 1
