Burndy YA472N

B00CBNSNIK

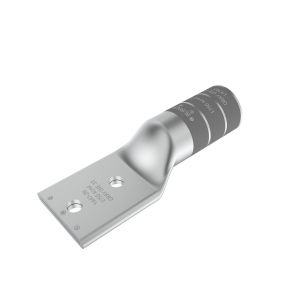

Burndy YA472N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 1750 kcmil Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 2.90" Tongue Width, 7.89" Length (Pack of 5)

Burndy YA472N Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 1750 kcmil Conductor, 1/2" Stud Hole Size, 1-3/4" Stud Hole Spacing, 2.90" Tongue Width, 7.89" Length (Pack of 5)zoom

Attributes

Key Value
ApplicationWire Termination
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL Reco.No
Color CodeGray
Conductor - Copper Str .1750 KCMIL
Conductor - Copper Str .1750 KCMIL
Conductor - MaterialCOPPER
Conductor Size1750 KCMIL
Conductor TypeCODE
Connector TypeLONG BARREL
Die Index33
Dimension - B Length in.3.44 in
Dimension - Bolt Hole S.0.52 in
Dimension - Bolt Size f.1/2
Dimension - Bolt Size i.0.5
Dimension - Hole Size f.1/2
Dimension - Hole Size i.0.56
Dimension - Hole Size mm14 mm
Dimension - L Length Ov.200 mm
Dimension - Length Over.7.89 in
Dimension - N inch0.63 in
Dimension - Outside Dia.1.98 in
Dimension - Pad Width i.2.90 in
Dimension - Strip Lengt.3-1/2
Dimension - Stud Size f.1/2
Dimension - Stud Size i.1/2
Dimension - Thread Size1/2
Dimension - Z inch0.64 in
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
Finish TypeTin-Plated
Industry Standard(s)UL 486A-486B
MaterialCOPPER
Physical Attribute - Nu.2
Physical Attribute - To.Straight
PlatedY
Plating TypeTin plated
Rating - KVA35 kV
Standards - Industry St.UL 486A-486B
Standards - RoHS Compli.CM
TypeLong Barrel, Tin Plated
UL ListedYes
Voltage - Maximum35000
Voltage Rating35 kV
