Burndy YA8C2TC38

B00CBNQXQE

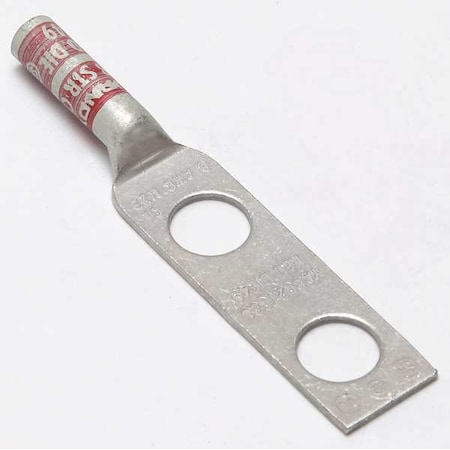

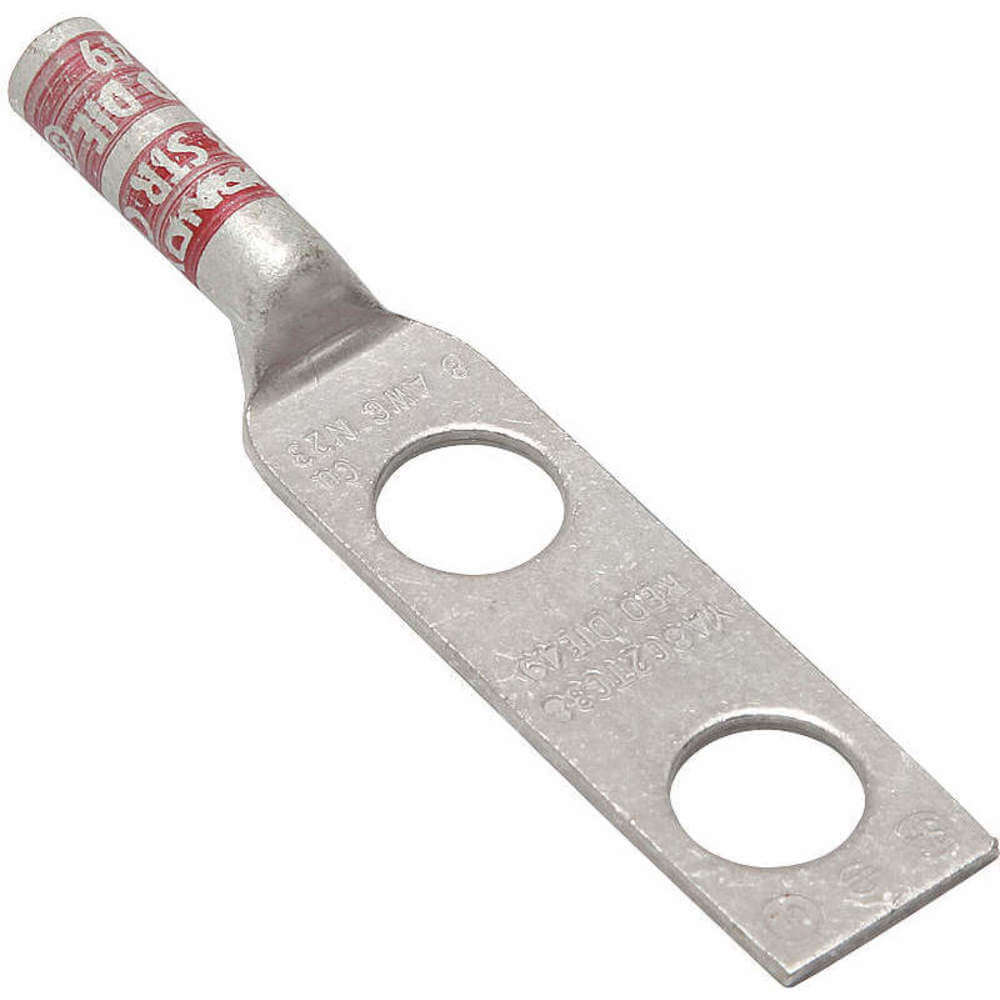

Burndy YA8C2TC38 Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 8 Str. - #6 Sol. 37/24 Conductor, 3/8" Stud Hole Size, 1" Stud Hole Spacing, 0.73" Tongue Width, 2.89" Length

Burndy YA8C2TC38 Two Hole Hylug Code Conductor Long Barrel Copper Compression Terminal, 8 Str. - #6 Sol. 37/24 Conductor, 3/8" Stud Hole Size, 1" Stud Hole Spacing, 0.73" Tongue Width, 2.89" Lengthzoom

Attributes

Key Value
ApplicationFor Code Conductor
Barrel LengthLong
Barrel Outside Diameter0.27 in
Barrel SizeLong
Barrel StyleChamfered
Cable Size8 AWG
Color CodeRed
Color FamilyRed
Colour CodeRed
Conductor - Copper DLO .8 AWG
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Flex."8 AWG"
Conductor - Copper Soli.8 AWG
Conductor - Copper Soli.8 AWG
Conductor - Copper Str ."8 AWG"
Conductor - Copper Str .23 (7) Navy
Conductor - Copper Str .23 (7) Navy
Conductor - Copper Str .8 AWG
Conductor - Copper Str .8 AWG
Conductor Size8 AWG
Connector TypeTerminal, Straight Barr.
Contact FinishTin
Country of OriginUS - United States
Die Code49
Die ColorRed
Die Index49
Dimension - B Length in.0.81 in
Dimension - Bolt Hole S.0.39 in
Dimension - Bolt Size f.2023-03-08
Dimension - Bolt Size i.0.38
Dimension - D inch1.84 in
Dimension - Hole Size f.2023-03-08
Dimension - Hole Size i.0.41 in
Dimension - Hole Size mm10 mm
Dimension - L Length Ov.73 mm
Dimension - Length Over.2.89 in
Dimension - N inch0.41 in
Dimension - Outside Dia.0.27 in
Dimension - Pad Width i.0.58 in
Dimension - Strip Lengt.45115
Dimension - Stud Size f.2023-03-08
Dimension - Stud Size i.44993
Dimension - Z inch0.43 in
ECCNEAR99
Family SeriesBurndy Terminals, YA-2T.
Feature - Barrel StyleChamfered
Feature - Barrel TypeLong
FinishElectro Tin-Plated
For Conductor MaterialCopper
For Stranded Copper Wir.8 AWG
For Stranded Copper Wir.8 AWG
For Stud Size3/8 in
For Wire Size8 AWG
For Wire TypeSolid, Stranded
Gross Weight0.02 lbs
Hole Center to Center1 in
Hole Center to End0.41 in
Hole Size0.41 in
Inspection HoleNo
ItemTwo-Hole Lug Compressio.
Item NumberYA8C2TC38
Item Type3B
Length2.89"
Length (Straight Wirewa.2.89 in
Lug Compression Connect.Two-Hole Lug Compressio.
Lug Wire Size6 AWG
ManufacturerBurndy
Manufacturer Part NumberYA8C2TC38
MaterialCopper
Material/CompositionCopper
Max Conductor Range8 AWG
Maximum Operating Tempe.194 Degrees F
Maximum Voltage35 kVAC
Min Conductor Range8 AWG
Net Weight0 lbs
Number of Conductors1
Number of Holes2
Overall Length2.89 in
Overall Width0.59 in
Peep HoleNo
Physical Attribute - Nu.2
Physical Attribute - To.Standard
Plate MaterialElectro Tin
PlatedY
Plating TypeTin - Electro Plated
Product SeriesYA-2TC
RoHS CompliantYes
Special FeaturesCorrosion Resistant, No.
StandardsCSA Certified, UL 486A-.
Strip Length7/8 in
Stud Hole Spacing1 in.
Stud Size3/8 in, 3/8 in.
Temperature Rating194
Termination StyleCrimp
Tongue AngleStraight
Tongue Length0.84 in
Tongue StyleStandard
Tongue Thickness0.06 in
Tongue Width0.58 in
Tongue Width Ranges0.51 - 0.75 inches
Trade NameHYLUG?
TypeLong Barrel, Tin Plated
UNSPSC39121405
UPC Code781810019719
Width0.58"
Wire Size8 AWG
Wire Size Range8 AWG - 8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com3068074.821In StockBURNDY4.82 @ 1
Graybar910110186.540812Burndy6.5408 @ 1
grainger.caWWG22C3747.316124481In StockBURNDY0.017.31612448 @ 1
thumbzoomZoroG46650717.791100Burndy0.017.79 @ 1
thumbzoomusmegastore.comYA8C2TC388.161In StockBurndy8.16 @ 1
thumbzoomGalcoYA8C2TC38-BURN8.51In StockBurndy0.028.5 @ 1
us.rs-online.com7149565410.981In StockBURNDY10.98 @ 1
kirbyrisk.com54327415.061In StockBurndy15.06 @ 1
thumbzoomRaptor SuppliesAB6RLR15.5311651In StockBURNDY15.531165 @ 1
