Description:

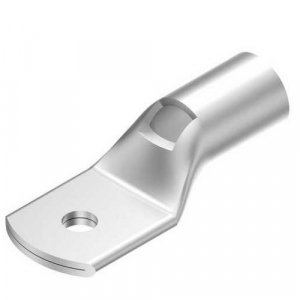

<p>Cu tubing Compression Terminal, 1 Hole W/Insp Window, AN-4/0, 5/8 " Stud, Nickel Plated. </p>
Attributes
| Key ^ | Value |
|---|---|
| Certification - CSA Approved, Certification - cULus, Certification - ETL, Certification - UL Recognized, UL Listed | No |
| Conductor - Copper Str Aircraft Size, Conductor - Copper Str Aircraft Size Range | AN 0000 |
| Conductor - Material, Material | Copper |
| Connector Type | Terminal |
| Die Index | 46 |
| Dimension - B Length fraction | 7/8 in |
| Dimension - B Length inch | 0.85 in |
| Dimension - Bolt Hole Size inch, Dimension - Hole Size inch | 0.66 in |
| Dimension - Bolt Size fraction | 5/8 |
| Dimension - D inch | 1.16 in |
| Dimension - Hole Size mm | 17 mm |
| Dimension - L Length Overall mm | 69 mm |
| Dimension - Length Overall inch | 2.72 in |
| Dimension - N inch | 0.56 in |
| Dimension - Pad Width inch | 1.12 in |
| Dimension - Strip Length inch | 7/8 |
| Dimension - Thread Size | 5/8 in |
| Dimension - Z inch | 0.60 in |
| Feature - Barrel Style | Chamfered |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Physical Attribute - Tongue Angle | Straight |
| Physical Attribute - Tongue Type | Ring |
| Plated | Y |
| Plating Type | Nickel |
| Rating - KVA | 35 kV |
| Rating - Minimum Voltage | 600 |
| Standards - RoHS Compliance Status | CM |
| Temperature Rating | 194 |
| Trade Name | HYLUG? |
| Type | Standard Barrel, Nickel Plated |
| Voltage - Maximum | 35000 |
