Burndy YGHC29C26

B008KNKKP4

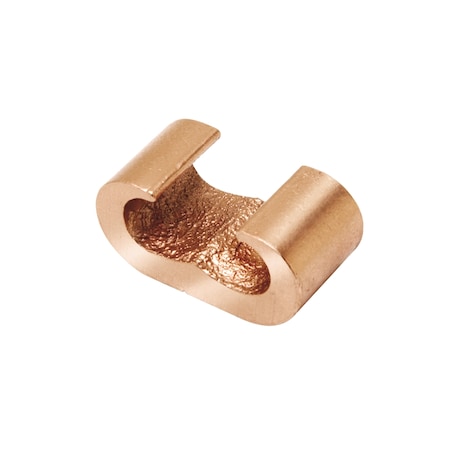

Burndy YGHC29C26 Hytap Connector, 3/0 Str. 250 kcmil, 1/2" or 5/8" Run, 6 Sol. 2/0 Str. Tab, 0.75" Width, 1.97" Length

Burndy YGHC29C26 Hytap Connector, 3/0 Str. 250 kcmil, 1/2" or 5/8" Run, 6 Sol. 2/0 Str. Tab, 0.75" Width, 1.97" Lengthzoom

Attributes

Key Value
ApprovalsCSA, DB, UL
BrandHytap
Certification - CSA App.Yes
Certification - cULusNo
Certification - ETLNo
Certification - UL List.Yes
Certification - UL Reco.No
Comments1 Crimp
Conductor - Copper Soli.6 AWG; 5 AWG; 4 AWG; 3 .
Conductor - Copper Soli.6 AWG-3/0 AWG
Conductor - Copper Str .3/0 AWG; 4/0 AWG; 250 k.
Conductor - Copper Str .3/0 AWG-250 kcmil
Conductor - Copper Str .7 AWG; 6 AWG; 5 AWG; 4 .
Conductor - Copper Str .7 AWG-2/0 AWG
Conductor - Rod Run1/2 in;5/8 in
Conductor - Rod Run Ran.1/2 in-5/8 in
Connector TypeTap
Country of OriginUS - United States
Die Index997
Dimension - B Length fr.0.75 in
Dimension - B Length in.0.75 in
Dimension - Height frac.1-32/33 in
Dimension - Height inch1.97 in
Dimension - L Length Ov.19 mm
Dimension - Length Over.0.75 in
ECCNEAR99
Family SeriesBurndy Terminals, YGHC-.
Gross Weight0.0138 lbs
Industry Standard(s)UL467,486A; IEEE 837; C.
InsulatedNon-Insulated
Item NumberYGHC29C26
Item Type3A
Main Conductor Size3/0 AWG to 250 kcmil
ManufacturerBurndy
Manufacturer Part NumberYGHC29C26
MaterialCopper, Copper Alloy
Max Temp221 ?F
Net Weight0 lbs
Package Quantity1
Physical Attribute - Nu.1
PlatedN
Plating TypeUnplated
Product SeriesYGHC-C
Standards - RoHS Compli.CM
Tap Conductor Size6 Sol AWG to 2/0 Str AWG
Terminal MaterialCopper
Terminal TypeC-Tap
TypeTaps
UL ListedYes
UNSPSC39121427
UPC Code781810221044
Use WithCopper
Wire Size6-2/0 AWG
Wire Size (AWG)1 AWG, 1/0 AWG, 2 AWG, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com8571213.861In StockBURNDY13.86 @ 1
thumbzoomKelly HayesYGHC29C2621.4512431Burndy21.45 @ 1
thumbzoomZoroG143968228.795In Stock30Burndy28.79 @ 5
thumbzoomusmegastore.comYGHC29C2634.31In StockBurndy34.3 @ 1
kirbyrisk.com53930535.591In StockBurndy35.59 @ 1
thumbzoomgordonelectricsupply.comYGHC29C2636.361In StockBURNDY36.36 @ 1
Graybar8804900545.2816190Burndy45.2816 @ 1
Newark14R817445.6513In StockBURNDY45.65 @ 1
thumbzoomGalcoYGHC29C26-BURN46.71In StockBurndy0.013846.7 @ 1
us.rs-online.com7149617651.72160BURNDY51.72 @ 1
