- mpnYGHC29C29
- brandname: Burndy
- manufacturername: Burndy

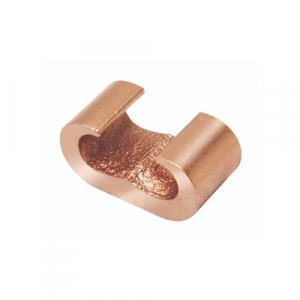

Burndy YGHC29C29 Hytap Connector, 3/0 Str. 250 kcmil, 1/2" or 5/8" Run, 3/0 Str. 250 kcmil Tab, 0.88" Width, 2.06" Length
- Brand: Burndy
- PartNumber: YGHC29C29
- Model: YGHC29C29
- PackageQuantity: 1
- Binding: Personal Computers
- Manufacturer: Burndy
- Label: Burndy
Attributes
| Key | Value |
|---|
| Application | For Direct Burial Cables |
| Approvals | CSA, DB, UL |
| Brand | Hytap |
| Certification - CSA App. | Yes |
| Certification - cULus | No |
| Certification - ETL | No |
| Certification - UL List. | Yes |
| Certification - UL Reco. | No |
| Comments | 1 Crimp |
| Conductor - Copper Str . | 3/0 AWG; 4/0 AWG; 250 k. |
| Conductor - Copper Str . | 3/0 AWG-250 kcmil |
| Conductor - Copper Str . | 3/0 AWG; 4/0 AWG; 250 k. |
| Conductor - Copper Str . | 3/0 AWG-250 kcmil |
| Conductor - Rod Run | 1/2 in;5/8 in, 1/2 in; . |
| Conductor - Rod Run Ran. | 1/2 in-5/8 in |
| Conductor Size | 3/0 AWG |
| Connector Type | Tap |
| Country of Origin | US - United States |
| Die Index | 997 |
| Dimension - B Length in. | 0.88 in |
| Dimension - Height frac. | 2-3/50 in |
| Dimension - Height inch | 2.06 in |
| Dimension - L Length Ov. | 22 mm |
| Dimension - Length Over. | 0.88 in |
| ECCN | EAR99 |
| Family Series | Burndy Terminals, YGHC-. |
| Gross Weight | 0.0154 lbs |
| Industry Standard(s) | Direct Burial, UL467,48. |
| Insulated | Non-Insulated |
| Item Number | YGHC29C29 |
| Item Type | 3A |
| Main Conductor Size | 3/0 AWG to 250 kcmil |
| Manufacturer | Burndy |
| Manufacturer Part Number | YGHC29C29 |
| Material | Copper, Copper Alloy |
| Max Temp | 221 ?F |
| Minimum Pack Quantity | 1 |
| Net Weight | 0 lbs |
| Physical Attribute - Nu. | 1 |
| Plated | N |
| Plating Type | Unplated |
| Product Series | YGHC-C |
| Series | HyTap Series |
| Standards - RoHS Compli. | CM |
| Sub Brand | HYGROUND, HYTAP |
| Tap Conductor Size | 3/0 AWG Str to 250 kcmil |
| Terminal Material | Copper |
| Terminal Type | C-Tap |
| Trade Name | HYTAP? |
| Type | Taps, Tap |
| UL Listed | Yes |
| UNSPSC | 39121427 |
| UPC | 781810221051 |
| UPC 12 Digit | 7818102210511 |
| UPC Code | 781810221051 |
| Use With | Copper |
| Wire Size | 3/0 AWG-250 kcmil |
| Wire Size (AWG) | 3/0 AWG, 4/0 AWG |
| Wire Size (kcmil) | 250 kcmil |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Kelly Hayes | YGHC29C29 | 22.43 | 1 | 2928 | | Burndy | | 22.43 @ 1 |
 | usmegastore.com | YGHC29C29 | 35.7 | 1 | In Stock | | Burndy | | 35.7 @ 1 |
| Newark | 36K3940 | 36.32 | 1556 | In Stock | | BURNDY | | 36.32 @ 1556 |
| kirbyrisk.com | 539306 | 36.56 | 1 | 90 | | Burndy | | 36.56 @ 1 |
 | gordonelectricsupply.com | YGHC29C29 | 37.33 | 1 | In Stock | | BURNDY | | 37.33 @ 1 |
| Graybar | 88049006 | 41.6864 | 1 | 265 | | Burndy | | 41.6864 @ 1 |
 | mayerelectric.com | BURYGHC29C29 | 48.26 | 1 | In Stock | | BURNDY | | 48.26 @ 1 |
 | Galco | YGHC29C29-BURN | 48.81 | 1 | In Stock | | Burndy | 0.0154 | 48.81 @ 1 |
| us.rs-online.com | 71496177 | 52.67 | 1 | In Stock | | BURNDY | | 52.67 @ 1 |
 | NRI Industrial | D520942 | 117.73 | 1 | In Stock | | BURNDY | | 117.73 @ 1 |
