Burndy YPC2A8U

B00CBKKPH0

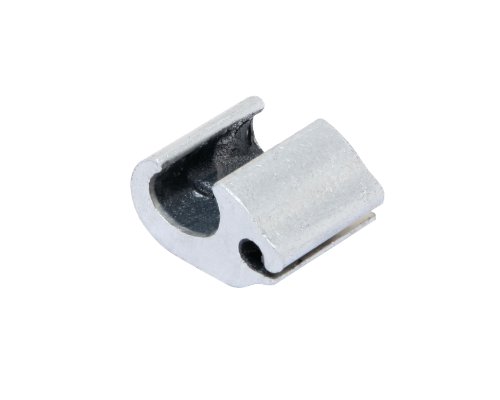

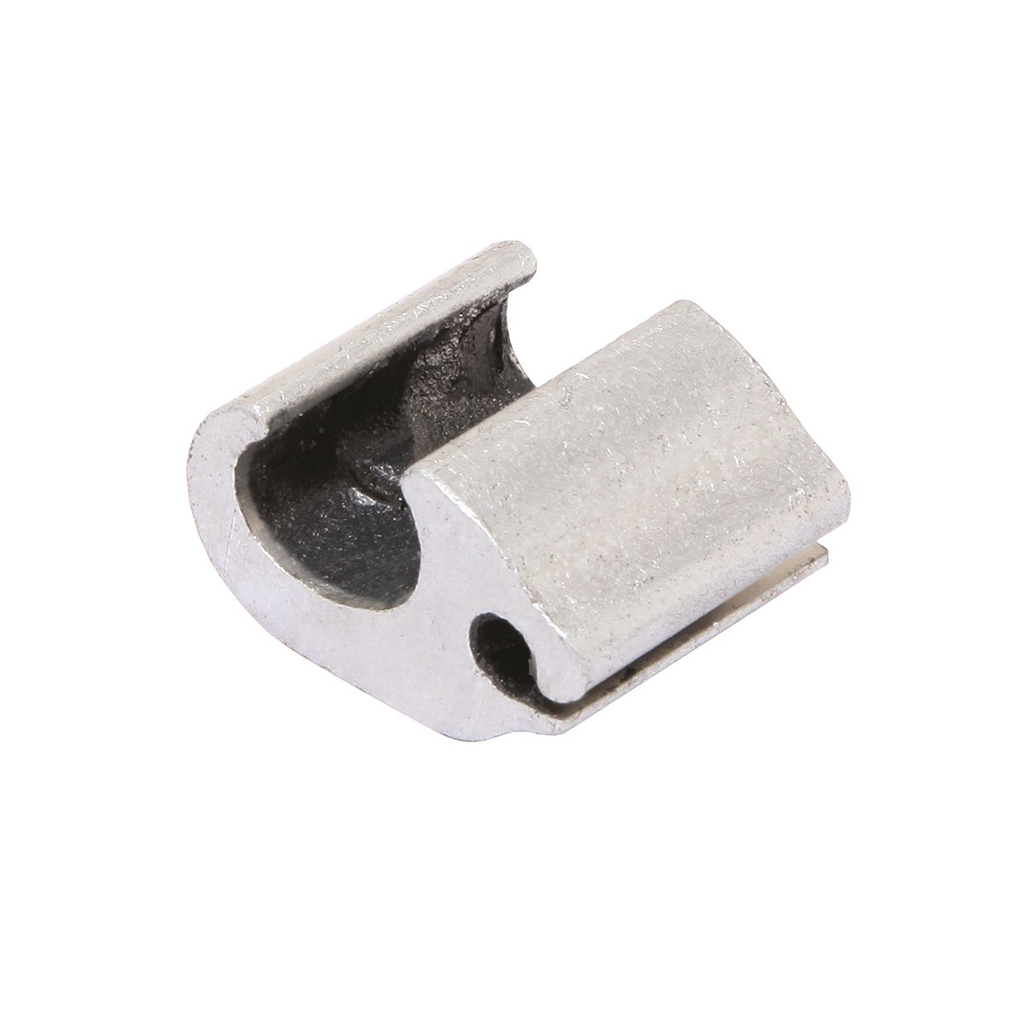

Burndy YPC2A8U Crimpit, 4-2 Sol, 6-2 Str. Aluminum and Copper Run, 14 Sol. - 8 Str. Aluminum and Copper Tap, 5/8" Length, for Combinations of Copper, Aluminum, ACSR, Compressed and Compact Conductors

Burndy YPC2A8U Crimpit, 4-2 Sol, 6-2 Str. Aluminum and Copper Run, 14 Sol. - 8 Str. Aluminum and Copper Tap, 5/8" Length, for Combinations of Copper, Aluminum, ACSR, Compressed and Compact Conductorszoom

Attributes

Key Value
ApplicationFor Combinations Of Cop.
Class CodeB30
Compact Compression Con.6
Conductor - ACSR Str Run6 (6/1) Turkey AWG;5 (6.
Conductor - ACSR Str Ru.6 (6/1) Turkey AWG-4 (7.
Conductor - AL Str Run6 AWG;4 AWG;3 AWG;2 AWG
Conductor - AL Str Run .6 AWG-2 AWG
Conductor - AL Str Tap8 AWG
Conductor - Copper Soli.4 AWG;3 AWG;2 AWG
Conductor - Copper Soli.4 AWG-2 AWG
Conductor - Copper Soli.14 AWG
Conductor - Copper Str .6 AWG;5 AWG;4 AWG;3 AWG.
Conductor - Copper Str .6 AWG-2 AWG
Conductor - Copper Str .14 AWG;12 AWG;10 AWG;9 .
Conductor - Copper Str .14 AWG-8 AWG
Conductor TypeAL C Str-Run;CU C Str-R.
Country of OriginMX - Mexico, MX
CSA ApprovedNo
cULusNo
Die IndexBG or 5/8
Dimension - Height inch0.97 in
Dimension - L Length Ov.18 mm
Dimension - Length Over.0.69 in
Dimension - Width inch0.56 in
ECCNEAR99
ETLNo
EU RoHS IndicatorYes
Family SeriesBurndy Terminals, YPC-A.
Freight Class Code16027000
Gross Weight0.02 lbs
Harmonization Code8535909020
Image Actual Or Represe.A
InsulatedNon-Insulated
Item NumberYPC2A8U
Lead Time10 wk
ManufacturerBurndy
Manufacturer Part NumberYPC2A8U
MaterialAluminum
Max Temp221 ?F
MSDS FlagNo
Net Weight0.023 lbs
Order Multiple1 EA
PlatedN
Plating TypeUnplated
Product SeriesYPC-A-U
Product TypeCompression
Standards - RoHS Compli.CM
Sub BrandCRIMPIT
Sub Class CodeB30B3PF
Tap Conductor Size14 to 8 AWG
Terminal MaterialAluminum
Terminal Type6-Tap
Trade NameCRIMPIT?
TypeYPC-A-U
UL ListedNo
UL RecognizedNo
UNSPSC39121427
UPC Code781810135686
Use WithACSR, Aluminum, Copper
Wire Size14-8 AWG, 4-2 AWG
Wire Size (AWG)10 AWG, 11 AWG, 12 AWG,.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommayerelectric.comBURYPC2A8U1.07193BURNDY1.07 @ 1
steinerelectric.com1128431.57193BURNDY1.57 @ 1
thumbzoomRadwellYPC2A8U4.012BURNDY4.0 @ 1
thumbzoomgordonelectricsupply.comYPC2A8U5.61193BURNDY5.61 @ 1
Graybar880490916.4064134Burndy6.4064 @ 1
us.rs-online.com714962917.26111BURNDY7.26 @ 1
thumbzoomGalcoYPC2A8U-BURN8.11In StockBurndy0.0238.1 @ 1
kirbyrisk.com23199918.441In StockBurndy8.44 @ 1
