| Amps | 1 kA |
| Basic Material | Nonmetallic |
| Chase Nipple Size | 3/4 in |
| Color | Gray |
| Country of Origin (subject to change) | Mexico |
| Depth | 3.19 in |
| Enclosure Material | Thermoplastic |
| Enclosure NEMA Rating | 4X |
| Filtering / Nonfiltering | Nonfiltering |
| Filtering, Modular | No |
| Includes | LED Status Indicator |
| IP Rating | 20 |

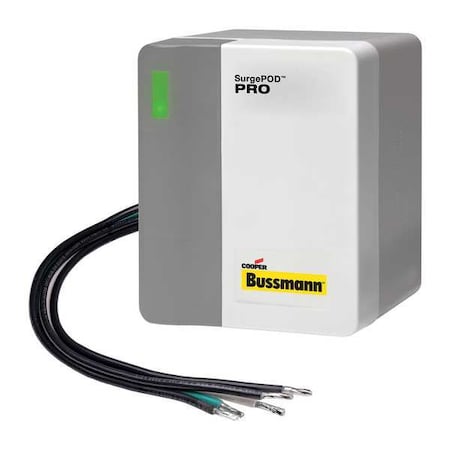

| Item | Surge Protection Device |
| Length, Length (Straight Wireway) | 3.38 in |
| Max. Continuing Operating Voltage | 150V AC |
| Max. Operating Temp. | 149 Degrees F |
| Max. Surge Current per Mode, Max. Surge Current Per Mode, Max. Surge Current Per Phase | 40kA |
| Max. Surge Current per Phase | 40 kA |
| Min. Operating Temp. | -40 Degrees F |
| Modes of Protection | L-N |
| Modular / Nonmodular | Nonmodular |
| Mounting Style | Chase Nipple |
| Nominal Discharge Current | 10 kA |
| Number of Poles | 1 |
| Number of Wires | 2 Wires |
| Phase | Single |
| Short Circuit Current Rating | 200kA |
| Standards | CSA Certified, RoHS compliant, Type 1, UL Listed |
| System Connection | Parallel |
| UL SPD Type | Type 1 |
| Voltage | 120V AC |
| Voltage Protection Rating | 700V (L-N) |
| Width | 4.13 in |
| Wire Gauge | 10 AWG |
