- mpnP18-4
- brandname: Canarm
- manufacturername: Canarm

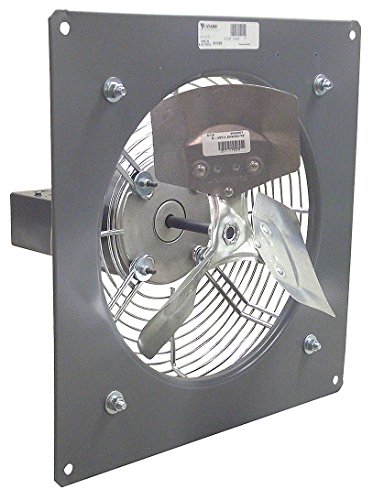

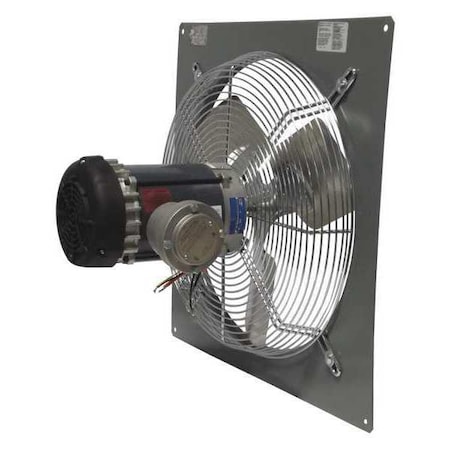

Canarm Explosion-Proof, Single-Speed Exhaust Panel Fan - 18in. Model Number P18-4


- Brand: Canarm
- PartNumber: P18-4
- PackageQuantity: 1
- Manufacturer: Canarm
- Label: Canarm
Attributes
Key | Value |
---|
Agency Compliance | cETLus |
Assembled | Fully Assembled |
Bearing Type | Ball |
Blade Dia. | 18 in |
Blade Diameter | 18 in |
Blade Material | Aluminum |
CFM @ 0.000-In. SP | 3,200 cfm |
CFM @ 0.125-In. SP | 2,950 cfm |
CFM @ 0.250-In. SP | 2,625 cfm |
Control Type | Toggle Switch |
Dimension A (In.) | 23 1/4 in |
Dimension B (In.) | 14 in |
Dimension C (In.) | 22 in |
Dimension D (In.) | 22 in |
Discharge Direction | Horizontal |
Drive Package Included | No |
Drive Package With Moto. | No |
Drive Type | Direct Drive |
Duct Diameter | Not Applicable |
Duct Height | Not Applicable |
Duct Shape | Not Applicable |
Duct Width | Not Applicable |
Electrical Connection | Hardwired |
Exhaust Airflow @ 0.000. | 3,200 cfm |
Exhaust Airflow @ 0.100. | 3,050 cfm |
Exhaust Airflow @ 0.125. | 2,950 cfm |
Exhaust Airflow @ 0.250. | 2,625 cfm |
Exhaust/Supply Fan Item | Exhaust Fan |
Exhaust/Supply Fan Moto. | 1/3 hp |
Fan Style | Panel |
Fan Voltage | 115/208-230V AC |
Flange Width | 1 1/2 in |
Flange Width (In.) | 1 1/2 in |
For Cut-Out Diameter | 22 in |
For Cut-Out Height | 22 in |
For Cut-Out Width | 22 in |
For Use With | General Ventilation App. |
Frame Finish | Powder Coated |
Frame Material | Steel |
Frequency | 60 Hz |
Full Load Amps | 6.6/3.1-3.3 |
Full Load Current | 0.5 A |
Guard Finish | Chrome |
Guard Material | Steel |
Guard Type | Intake |
Guard Type_Subheads | With Intake Guards |
Hazardous Location Class | Class I, Div 1, Group C. |
Height (In.) | 23 1/4 in |
Housing Finish | Powder-Coated |
Housing Material | Steel |
Hz | 60 |
Includes | Aluminum Blades, EPFC M. |
Includes Dehumidistat | No |
Includes Grill | No |
Includes Motor | No |
Inside Dia. (In.) | 22 in |
Item | Panel Mounted Hazardous. |
Manufacturer Warranty L. | 1 yr |
Max. Ambient Temp. (F) | 104 Degrees F |
Max. Depth (In.) | 14 in |
Maximum Airflow | 3,200 cfm |
Maximum Ambient Operati. | 104 Degrees F, 104 Deg. |
Maximum Exhaust Airflow. | 0 to 10,000 cfm |
Maximum Noise Level | 23 sones |
Maximum Noise Level @ 0. | Greater than 50 sones |
Method of Construction | Stamped |
Motor Enclosure | Totally Enclosed Air Ov. |
Motor Enclosure Design | Totally Enclosed Air Ov. |
Motor Horsepower | 1/3 hp |
Motor Insulation | Class B |
Motor RPM | 1,725 RPM |
Motor Speed | 1,725 RPM |
Motor Speed Range | 1601 to 1800 RPM |
Motor Type | Explosion Proof |
Mounting Holes O.C. (In. | 22 in |
Mounting Location | Wall |
Mounting Orientation | Horizontal |
Mounting Position | Horizontal |
Nameplate Voltage | 115/208-230V AC |
Noise Level @ 0.000 in . | 23 sones |
Noise Level @ 0.100 in . | 23 sones |
Nominal Voltage | 115/208-230V AC |
Number of Blades | 3 |
Number of Fans | 1 |
Number of Speeds | 1 |
Outside Dia. (In.) | 23 1/4 in |
Overall Depth | 14 in |
Overall Diameter | 23 1/4 in |
Overall Height | 23 1/4 in |
Overall Width | 23 1/4 in |
Phase | 1 |
Propeller Material | Aluminum |
Shaft Dia. (In.) | 1/2 in |
Shaft Diameter | 1/2 in |
Sones @ 0.000-In. SP @ . | 23 |
Speed Controllable | No |
Square Opening Required | 20-1/2 to 30 in |
Supply Airflow @ 0.000 . | 3,200 cfm |
Type | Explosion Proof |
Vent Design | Ductless |
Ventilation Type | Exhaust |
Venturi Clearance Dia. . | 1/8 in |
Venturi Depth (In.) | 5/8 in |
Venturi Diameter | 1/8 in |
Wattage | 250 W |
Watts | 250 W |
Width (In.) | 23 1/4 in |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Zoro | G6547326 | 858.99 | 1 | In Stock | | Canarm | 61.0 | 858.99 @ 1 |
| h-mac.com | CANARM-P18-4 | 916.99 | 1 | In Stock | | CANARM | | 916.99 @ 1 |
  | sustainablesupply.com | C1123787 | 1013.13 | 1 | In Stock | | Canarm | 61.0 | 1013.13 @ 1 |
  | Raptor Supplies | AF8ZAJ | 1413.604179 | 1 | In Stock | | CANARM | | 1413.604179 @ 1 |
| grainger.ca | LDRP184 | 1711.57393502 | 1 | In Stock | | CANARM | 61.0 | 1711.57393502 @ 1 |
