- mpnCD34CNFLFPCT5
- brandname: Carlo Gavazzi, Inc.
- manufacturername: Carlo Gavazzi, Inc.

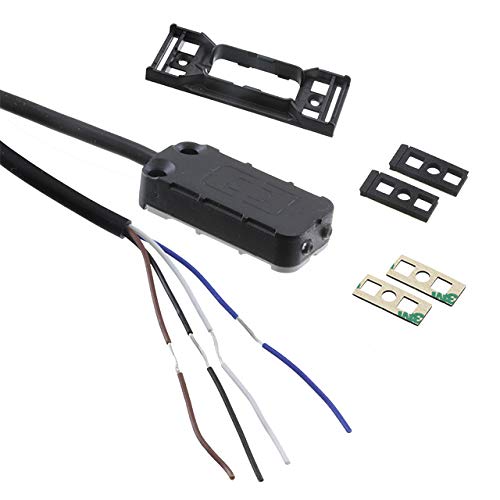

Capacitive Sensor; Foreground supression; 10-30VDC; PNP; N/C; Pigtail
- Brand: CARLO GAVAZZI
- PartNumber: CD34CNFLFPCT5
- Model: CD34CNFLFPCT5
- Manufacturer: CARLO GAVAZZI
- Label: CARLO GAVAZZI
Attributes
| Key | Value |
|---|
| +80?C (+176?F) | Start Temp. (Max) |
| -25?C (-13?F) | Start Temp. (Min) |
| 0.3m, M8, 4-pin, male | Sensor Plug Style |
| 10 to 30 VDC (ripple in. | Voltage (V) |
| 34mm | Sensor Housing |
| Approvals | CE, UL |
| Body Composition | Non-Metallic |
| Body dimensions | 8x16x34mm |
| Body material | PBT, |
| Break (N.C.) | Sensor Switching |
| Capacitive Proximity | Sensor Sensing |
| Carlo Gavazzi | Brand |
| Category | Sensors, Transducers |
| CD34CNFLFPCT5 | Stock Code |
| CE, cULus, ECOLAB | UL Listed |
| Configuration | PNP ; NC |
| Connection | M8 terminal |
| Connection Type | Cable Connection |
| Current | 100 mA |
| Current Rating | 102 mA |
| Description | SENSOR LEVEL SWITCH PNP |
| Detailed Description | Liquid Level Sensor Swi. |
| Diameter | 34 mm |
| Digi-Key Part Number | 1864-1437-ND |
| Enclosure | IP65, IP66, IP67, IP68,. |
| Family Series | Carlo Gavazzi Sensors |
| Flush | Mounting |
| For Use With | Liquid Level Sensing |
| Gross Weight | 0 lbs |
| Indication | LED |
| IP65, IP66, IP67, IP68,. | IP Rating |
| Item Number | CD34CNFLFPCT5 |
| Manufacturer | CARLO GAVAZZI, Carlo Ga. |
| Manufacturer Part Number | CD34CNFLFPCT5 |
| Manufacturer Product Nu. | CD34CNFLFPCT5 |
| Manufacturer series | CD34CNF |
| Manufacturer Standard L. | 17 Weeks |
| Material | Polycarbonate |
| Material - Housing & Pr. | Polycarbonate |
| Mfr | Carlo Gavazzi Inc. |
| Mounting Type | Flange Mount |
| Net Weight | 0 lbs |
| Nominal Voltage | 12 VDC, 24 VDC |
| Operating Temperature | -25?C ~ 80?C, -25 to 80. |
| Operating temperature | -25...80?C |
| Operating Voltage | 10-30 VDC |
| Output Circuit | NC |
| Output configuration | PNP / NC |
| Output Configuration | PNP |
| Output Type | PNP, Switch |
| Package | Bulk |
| Pigtail | Sensor Connection |
| PNP | Sensor Output |
| Product Status | Active |
| Range | 10 mm |
| RoHS | No |
| Series | CD34 Series, - |
| Status Indicator | Yes |
| Switch Actuation Level | - |
| Switching frequency max | 10Hz |
| Type | capacitive, Liquid |
| Type of sensor | capacitive |
| Voltage (DC) | 10-30 VDC |
| Voltage Rating | 10V ~ 30V, 10 to 30 V |
