CARLO GAVAZZI ICB30L50F15NCM1

B095XC4DBF

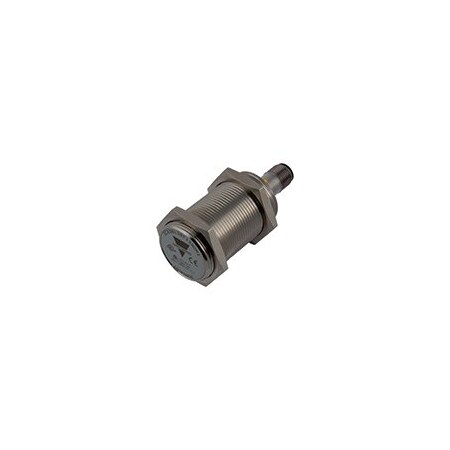

Inductive Proximity Sensor,M30,Plug,50mm,NPN,NC,Flush

Inductive Proximity Sensor,M30,Plug,50mm,NPN,NC,Flushzoom

Attributes

Key Value
+70?C (+158?F)Start Temp. (Max)
-40?C (-40?F)Start Temp. (Min)
10 to 36 VDC (ripple in.Voltage (V)
15 mmSensor Range
30mmSensor Housing
ApprovalsCE, UL
Body CompositionMetallic
Body materialnickel plated brass
Carlo GavazziBrand
CE, cULus, cCSAusUL Listed
Connectionconnector M12
Diameter30 mm
Family SeriesCarlo Gavazzi Inductive.
FlushMounting
Gross Weight0 lbs
Housing: Nickel-plated .Material
ICB30L50F15NCM1Stock Code
Inductive ProximitySensor Sensing
IP ratingIP67
IP67IP Rating
Item NumberICB30L50F15NCM1
Kind of foreheadembedded
M12 X 1Sensor Plug Style
ManufacturerCARLO GAVAZZI
Manufacturer Part NumberICB30L50F15NCM1
Max Load Current0.2 A
Max. operating current200mA
NC (Normally Close)Sensor Switching
Net Weight0 lbs
Nominal Voltage12 VDC, 24 VDC
NPNSensor Output
Number of pins4
Operating temperature-40...70?C
Operating Voltage Range10-36 VDC
Output configurationNPN / NC
Output TypeNC NPN
Overall length75mm
Package Quantity1
PlugSensor Connection
Power TypeDC
Primary TypeInductive Proximity Sen.
Range2-22 mm, 0...15mm
Reverse Polarity Protec.Yes
RoHSNo
Sensing TypeEnd
ShieldingUnshielded
Short Circuit ProtectionYes
Status IndicatorYes
Switch housingM30
Switching frequency max1000Hz
Type of sensorinductive
Weld Field ImmuneNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomCARLO GAVAZZI ICB30L50F15NCM150.4815CARLO GAVAZZI50.48 @ 1
electricautomationnetwork.comICB30L50F15NCM158.621In StockCARLO GAVAZZI58.62 @ 1
TMEICB30L50F15NCM173.081In StockCARLO GAVAZZI73.08 @ 1
thumbzoomZoroG20591844277.991In StockCarlo Gavazzi77.99 @ 1
us.rs-online.com7122949082.9510In StockCarlo Gavazzi, Inc.82.95 @ 10
Newark14AC423684.6410In StockCARLO GAVAZZI84.64 @ 10
thumbzoomGalcoICB30L50F15NCM1-ELMC88.8810In StockCarlo Gavazzi88.88 @ 10
thumbzoombulbspro.comICB30L50F15NCM1103.01In StockCarlo Gavazzi103.0 @ 1
