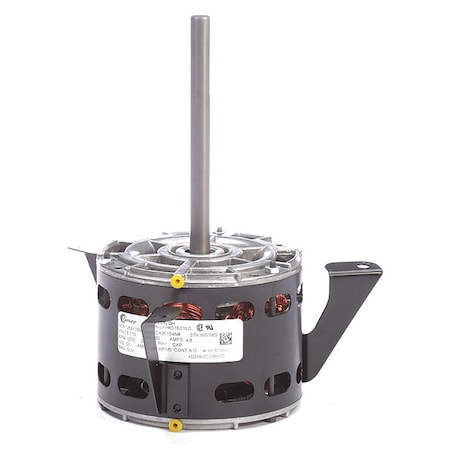

A.O. Smith 689 1/5 HP, 1070 RPM, 1 Speed, 42 Frame, CWSE Rotation, 1/2-Inch x 5-3/4-Inch Shaft OEM Direct Replacement

A.O. Smith 689 1/5 HP, 1070 RPM, 1 Speed, 42 Frame, CWSE Rotation, 1/2-Inch x 5-3/4-Inch Shaft OEM Direct Replacementzoom

Attributes

Key Value
689 is listed in Centur.Miller 305306, Miller 3.
Amps4.8
ApplicationFans and Blowers
BearingsSleeve
Body Dia.5"
Capacitor RequiredNo
Country of Origin (subj.Mexico
DutyContinuous Air Over
Duty CycleContinuous
Enclosure TypeOAO (Open Air Over)
Extended Thru-BoltsNo
Frame42
Full Load Amps4.8A
HP1/5, 1/5 HP
Hz60, 60 Hz
Ins. ClassA
Insulation ClassA
ItemMotor
Length Less Shaft3 11/16 in
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Diameter5"
Motor Enclosure DesignOpen Air-Over
Motor Frame MaterialSteel
Motor Mounting TypeLug
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationClockwise Shaft End
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAutomatic
MountingBracket
Mounting Stud LengthNot Applicable
Nameplate RPM1070 rpm
No. of Speeds1
Number of Shafts1
Number of Speeds1
OEM Replacement BrandMiller/LSI
Overall Length9.45"
Phase1
Product TypeShaded Pole
Replacement For305313
RotationCW Shaft End
RPM1070
RPM Range1001-1100
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2"
Shaft Length5-3/4"
Ship Weight8 lbs.
StandardsUL Recognized, CSA Cert.
Usable @ 200VNo
Usable @ 208VNo
Voltage115V
Voltage Compatibility115V AC, 120V AC
Volts115
Weight8 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
hvacdiscountstore.comCEN--689179.071In StockCENTURY MOTORS179.07 @ 1
thumbzoomemotorpro.com689206.741In StockCentury8.0206.74 @ 1
thumbzoommidwestapplianceparts.com689-AO-P209.51In StockAO Smith209.5 @ 1
thumbzoomZoroG2033976210.281In StockCentury8.45210.28 @ 1
