AO Smith 693

B007ATNQLO

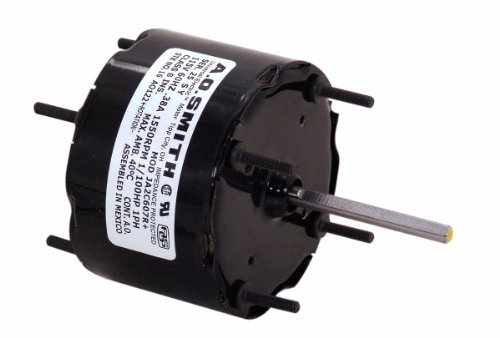

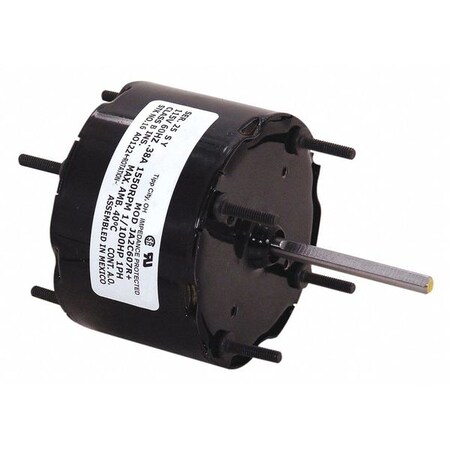

AO Smith 693 3.3-Inch 1/100 HP, TEAO Enclosure, Sleeve Bearing, CCWSE Rotation, 2-1/4-Inch by 1/4-Inch Shaft General Purpose Shaded Pole Motor

AO Smith 693 3.3-Inch 1/100 HP, TEAO Enclosure, Sleeve Bearing, CCWSE Rotation, 2-1/4-Inch by 1/4-Inch Shaft General Purpose Shaded Pole Motorzoom

Attributes

Key Value
ApplicationNutone
Body Dia.3-3/8"
Bolt Circle Dia.2.84"
Capacitor RequiredNo
Country of Origin (subj.Mexico
DutyContinuous
Frame3.3
Full Load Amps0.73
HP1/100
Hz60
IncludesLead and Plug Assembly
Ins. ClassA
ItemDirect Drive Blower Mot.
Length Less Shaft2-9/16"
Manufacturers Warranty .1 yr.
Max. Ambient Temp.40 Degrees C
Motor ApplicationHVAC/R
Motor BearingsSleeve
Motor DesignShaded Pole
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Mounting PositionHorizontal
Motor Mounting TypeStud
Motor Service Factor1.00
Motor Shaft DesignFlat
Motor Shaft RotationCCWSE
Motor Sub ApplicationDirect Drive Fan/Blower
Motor Thermal ProtectionAuto
Mounting Stud Length3/4"
Mounting Stud LocationBoth Ends
Mounting Stud Pattern2" x 2"
Nameplate RPM1550
No. of Speeds1
Overall Length4-1/2"
Phase1
RPM Range1501-1600
Shaft Dia.1/4"
Shaft Length2-1/4"
StandardsUL Recognized (E46412),.
Stud Size#8-32
Voltage115
Voltage Compatibility115, 120, 115/208-230, .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG265106541.141In Stock26Century41.14 @ 1
