Century 9428A

B0091BBMGA

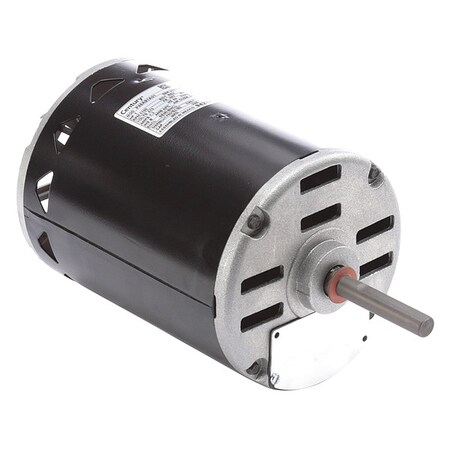

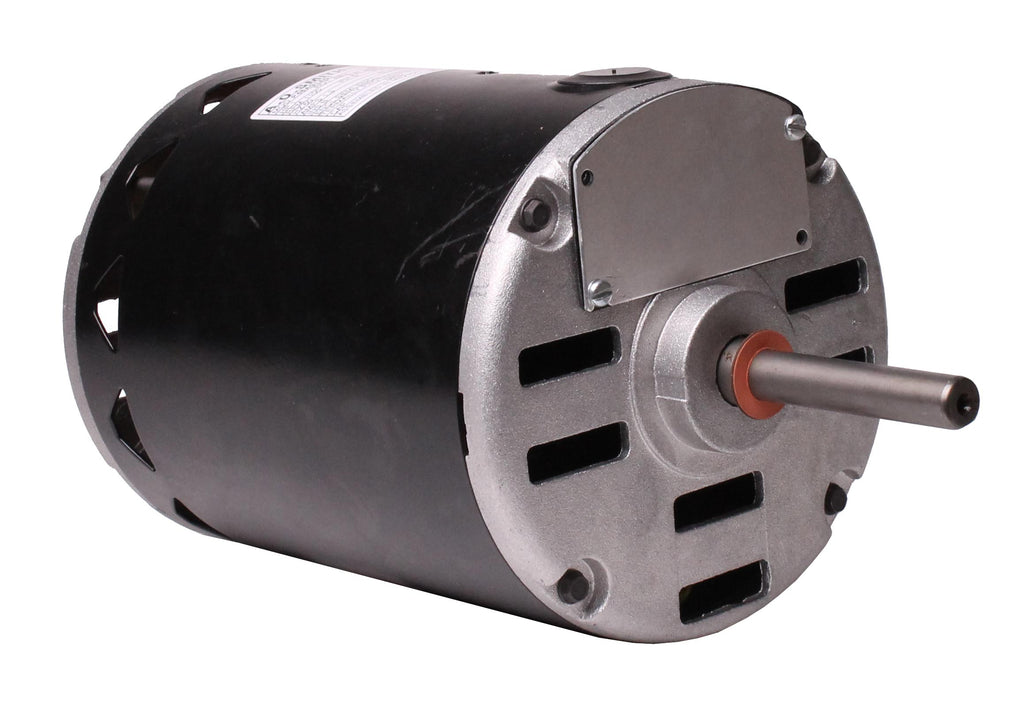

Century 9428A Fan Canopy, 5.6-Inch Frame Diameter, 1-HP, 1100-RPM, 575-Volt, 1.3-Amp, Ball Bearing Motor

Century 9428A Fan Canopy, 5.6-Inch Frame Diameter, 1-HP, 1100-RPM, 575-Volt, 1.3-Amp, Ball Bearing Motorzoom

Attributes

Key Value
Amps1.3
ApplicationCondenser Fan
Body Dia.5.7"
BrandCentury
C-Dimemsion11.10 (in.)
Catalog Number9428A
CEN
Country of Origin (subj.Mexico
CSAN
DE Bearing TypeBall
DEM ReferenceNOHP
DutyAir Over
Electrical TypeThree Phase
EnclosureSemi Enclosed
FrameF48Y, 48Y
Frame MaterialRolled Steel
Frequency60
Full Load Amps1.3A
HP1, 1 HP
Hz60 Hz
Ins. ClassB
Insulation ClassB
IP Code-
ItemMotor
KVA Code-
Manufacturers Warranty .1 yr.
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Motor ApplicationOEM Replacement
Motor BearingsBall
Motor DesignThree Phase
Motor Enclosure DesignSemi Enclosed
Motor Mounting TypeExtended Studs
Motor OrientationVertical Shaft Up
Motor Service Factor1
Motor Shaft DesignDouble Flat
Motor Shaft RotationReversible
Motor Sub ApplicationCondenser Fan Motor
Motor Thermal ProtectionManual
Mounting TypeExtended Studs
Nameplate RPM1100 rpm
Number of Shafts1
ODE Bearing TypeBall
Overall Length11.1"
Phase3
Product CategoryHVAC/R Motors > Conden.
RotationReversible
RPM (Nameplate)1100
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Dia.1/2"
Shaft Diameter1/2 (in.)
Shaft Extension3.18 (in.)
Shaft Length3.18"
Shaft TypeDouble Flat
Speeds1
StandardsNEMA
Type of Overload Protec.Thermally Protected
ULNo
Voltage575V
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonSCB0091BBMGA56.021In StockCentury56.02 @ 1
thumbzoomZoroG0794276477.771In Stock15Century20.0477.77 @ 1
thumbzoompatrickssupply.com9428A495.01In StockCENTURY495.0 @ 1
thumbzoommidwestapplianceparts.com9428A-AO-P593.831In StockAO Smith593.83 @ 1
thumbzoomsustainablesupply.comC2090779614.691In StockCentury15.0614.69 @ 1
thumbzoomindustrialstores.com9428A620.621In Stock19Century Motors by Regal Beloit620.62 @ 1
thumbzoomDreisilkerCE-RBC-9428A635.711In StockCentury635.71 @ 1
