A. O. Smith 9432A

B007ATNNDA

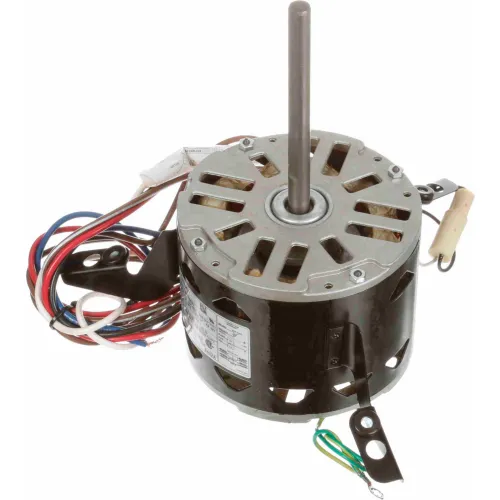

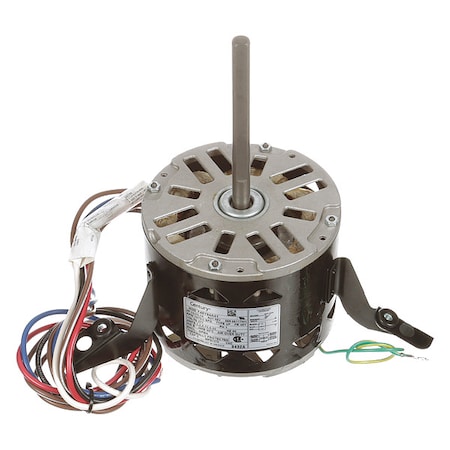

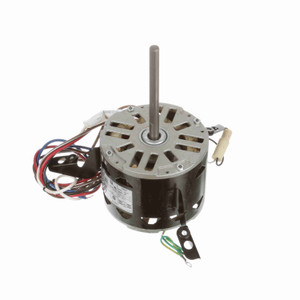

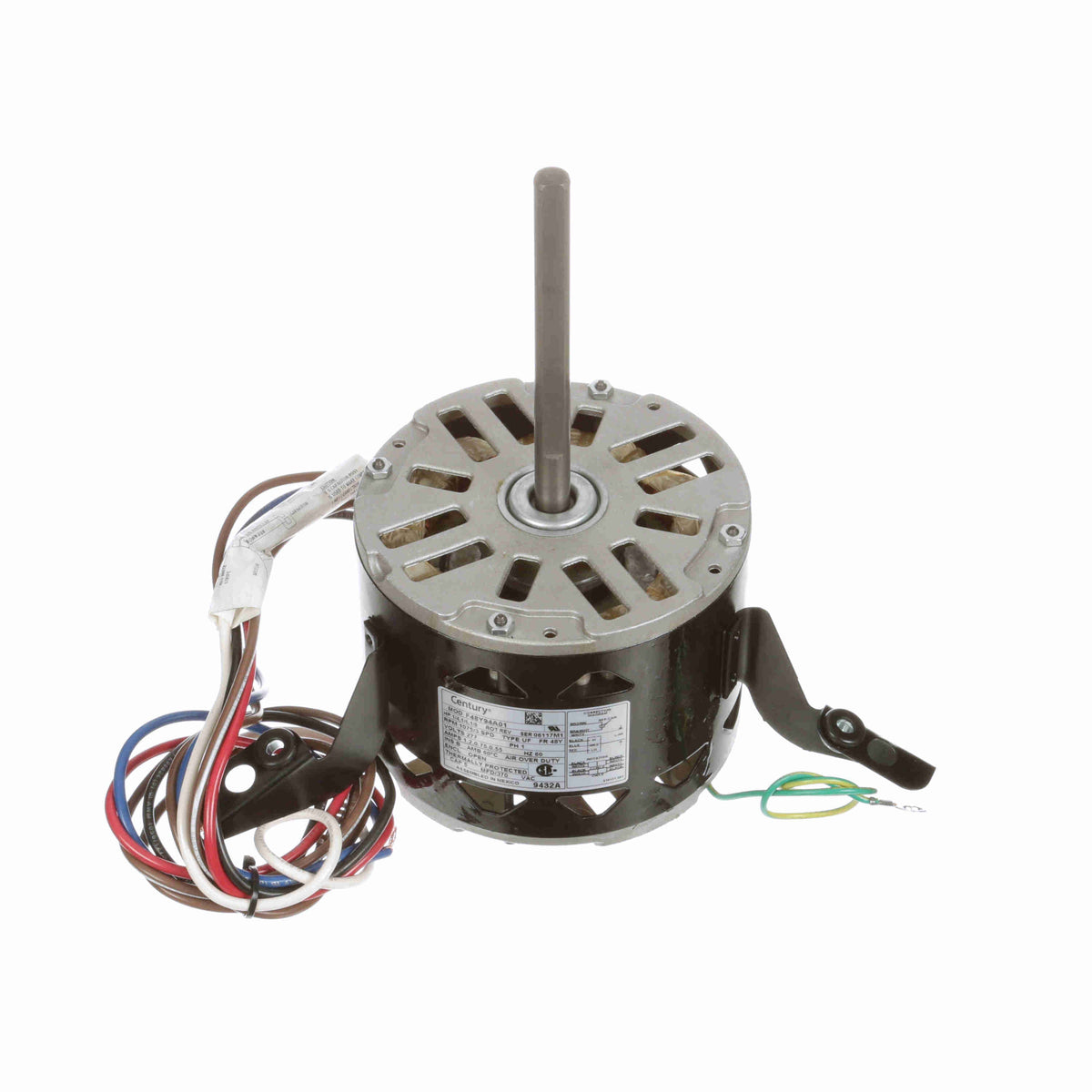

A.O. Smith 9432A 1/4 HP, 1075 RPM, 3 Speed, 277 Volts1.2 Amps, 48 Frame, Sleeve Bearing Direct Drive Blower Motor

A.O. Smith 9432A 1/4 HP, 1075 RPM, 3 Speed, 277 Volts1.2 Amps, 48 Frame, Sleeve Bearing Direct Drive Blower Motorzoom

Attributes

Key Value
9432A is listed in Cent.A.O. Smith 9432, A.O. S.
Amps1.2/0.75/0.55, 1.2, .75.
BearingsSleeve
Body Dia.5.7"
BrandCentury
C-Dimension9.74 (in.)
Capacitor5MFD @ 370VAC Required
Catalog Number9432A
CEN
CSAY
DE Bearing TypeSleeve
DEM ReferenceNOHP
DutyAir Over
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
Enclosure TypeOpen Enclosed, OAO (Ope.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
Full Load Amps1.2, 0.75, 0.55A
HP1/4, 1/8, 1/6, 1/4, 1/4.
Hz60
Ins. ClassB
Insulation ClassB
IP Code-
ItemMotor
KVA Code-
Manufacturers Warranty .1 yr.
Max Ambient60?C
Max. Ambient Temp.60 Degrees C
Maximum Ambient Tempera.60? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Enclosed
Motor Mounting TypeLug
Motor OrientationHorizontal
Motor Shaft RotationReversible
Motor Thermal ProtectionAutomatic
MountingFlex Bracket
Mounting TypeLug
Nameplate RPM1075 rpm
No. of Speeds3
Number of Shafts1
Number of Speeds3
ODE Bearing TypeSleeve
Overall Length9.74"
Phase1
Product CategoryHVAC/R Motors > Fan Co.
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension5.5 (in.)
Shaft Length5-1/2"
Shaft TypeFlat
Ship Weight12 lbs.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Voltage277V
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00VKL0XK0205.681In Stock2Century Electric Motor205.68 @ 1
thumbzoomemotorpro.com9432A291.331In StockCentury12.0291.33 @ 1
thumbzoomDreisilkerCE-RBC-9432A296.941In StockCentury296.94 @ 1
thumbzoommidwestapplianceparts.com9432A-AO-P297.751In StockAO Smith297.75 @ 1
thumbzoomsustainablesupply.comC2090640298.191In StockCentury15.0298.19 @ 1
thumbzoomZoroG3262345299.991In StockCentury12.0299.99 @ 1
thumbzoomNational Supply NetworkB2776411322.741In StockAO SMITH322.74 @ 1
hvacdiscountstore.comCEN--9432A339.751In StockCENTURY MOTORS339.75 @ 1
thumbzoomGlobal IndustrialWBB2776411339.951In StockCentury339.95 @ 1
thumbzoomptacsolutions.com9432A364.491In StockA.O. Smith364.49 @ 1
uri.comUE9432A648.621In StockCentury1.0099648.62 @ 1
