A. O. Smith 9434A

B0042GB5PM

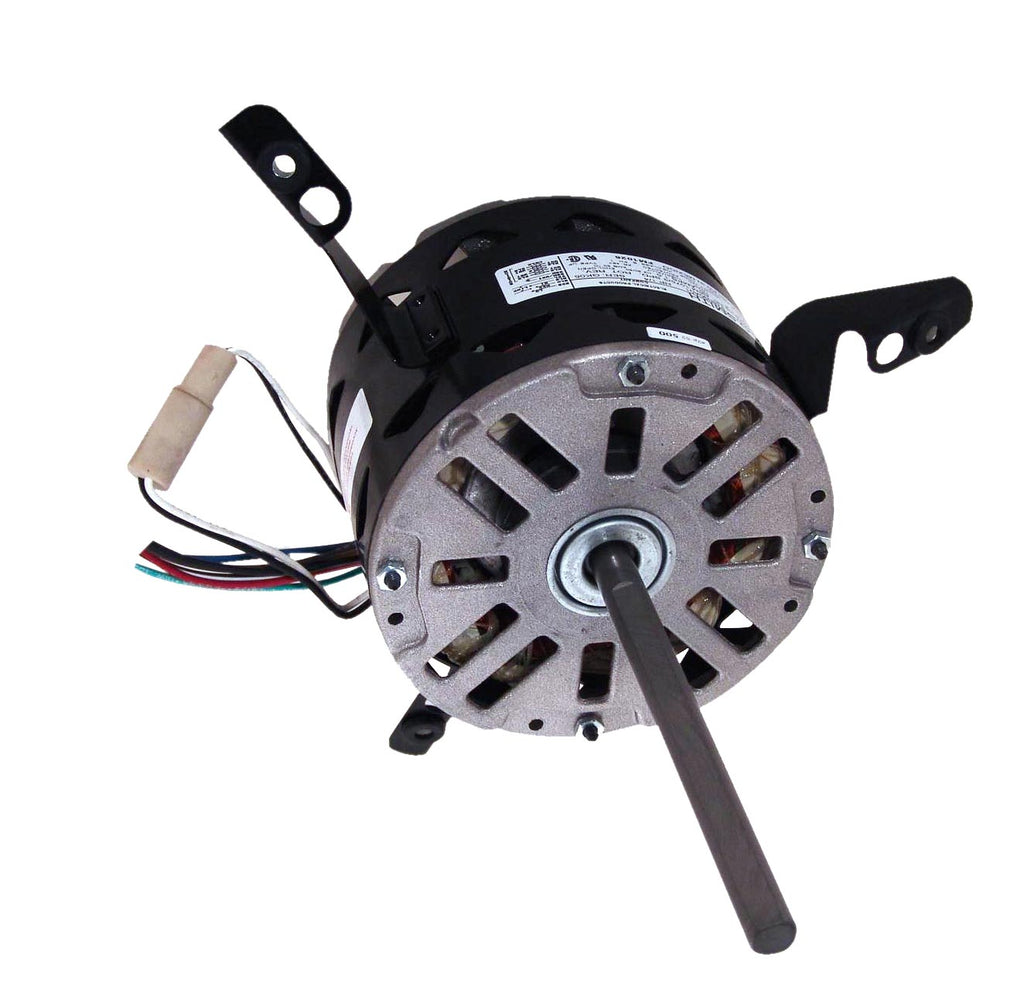

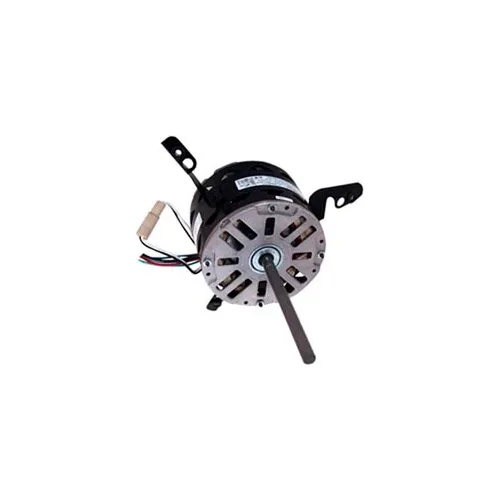

A.O. Smith 9434A 1/2 HP 277 Volt 1075 RPM Blower Motor 9434A

A.O. Smith 9434A 1/2 HP 277 Volt 1075 RPM Blower Motor 9434Azoom

Attributes

Key Value
9434A is listed in Cent.A.O. Smith 9434, A.O. S.
Amps2.1,1.3,1.1, 2.1/1.3/1.1
BearingsSleeve
BrandCentury
C-Dimension10.99 (in.)
Capacitor7.5MFD @ 370VAC Required
Catalog Number9434A
CEN
CSAY
DE Bearing TypeSleeve
DEM ReferenceAOS#9434A
DutyAir Over
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
Enclosure TypeOAO (Open Air Over), Op.
FrameF48Y, 48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
Full Load Amps2.1, 1.3, 1.1A
HP1/2, 1/3, 1/4 HP, 1/4, .
Hz60
Ins. ClassB
Insulation ClassB
International ShippingNo
IP Code-
ItemMotor
KVA Code-
Lead TimeExpected to ship in 1-2.
Manufacturers Warranty .1 yr.
Max Ambient60?C
Max. Ambient Temp.60 Degrees C
Maximum Ambient Tempera.60? C
Motor ApplicationOEM Replacement
Motor BearingsSleeve
Motor DesignPermanent Split Capacit.
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Air-Over
Motor Mounting TypeFlexible Arms
Motor OrientationAny
Motor Shaft RotationReversible
Motor Sub ApplicationFan Coil / Room Air Con.
Motor Thermal ProtectionAutomatic
MountingFlex Bracket
Mounting TypeFlexible Arms
Mpn9434A
Nameplate RPM1075 rpm
No. of Speeds3
Number of Shafts1
Number of Speeds3
ODE Bearing TypeSleeve
Overall Length10.99"
Phase1
Product CategoryHVAC/R Motors > Fan Co.
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Dia.1/2"
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension5.5 (in.)
Shaft Length5-1/2", 5.52"
Shaft TypeFlat
Ship Weight10 lbs.
SKUZO-G3262388
Speeds3
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
UPC0663001452607
Voltage277V
Volts277

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00VKL181I247.11In Stock2Century Electric Motor247.1 @ 1
thumbzoomktool.net9434A286.511In StockCentury286.51 @ 1
thumbzoomZoroG3262388351.9916Century17.52351.99 @ 1
thumbzoomemotorpro.com9434A353.61In StockCentury10.0353.6 @ 1
thumbzoommidwestapplianceparts.com9434A-AO-P358.121In StockAO Smith358.12 @ 1
thumbzoomDreisilkerCE-RBC-9434A360.261In StockCentury360.26 @ 1
thumbzoomsustainablesupply.comC2090646361.931In StockCentury15.0361.93 @ 1
thumbzoomVoomi Supply9434A369.661In StockCentury Motors369.66 @ 1
thumbzoomGlobal IndustrialWBB244553385.951In StockCentury385.95 @ 1
thumbzoomNational Supply NetworkB244553392.081In StockAO SMITH392.08 @ 1
hvacdiscountstore.comCEN--9434A408.541In StockCENTURY MOTORS408.54 @ 1
thumbzoomptacsolutions.com9434A418.3514A.O. Smith418.35 @ 1
thumbzoomsimsupply.comZO-G3262388419.01In StockCentury419.0 @ 1
uri.comUE9434786.881In StockCentury15.0786.88 @ 1
