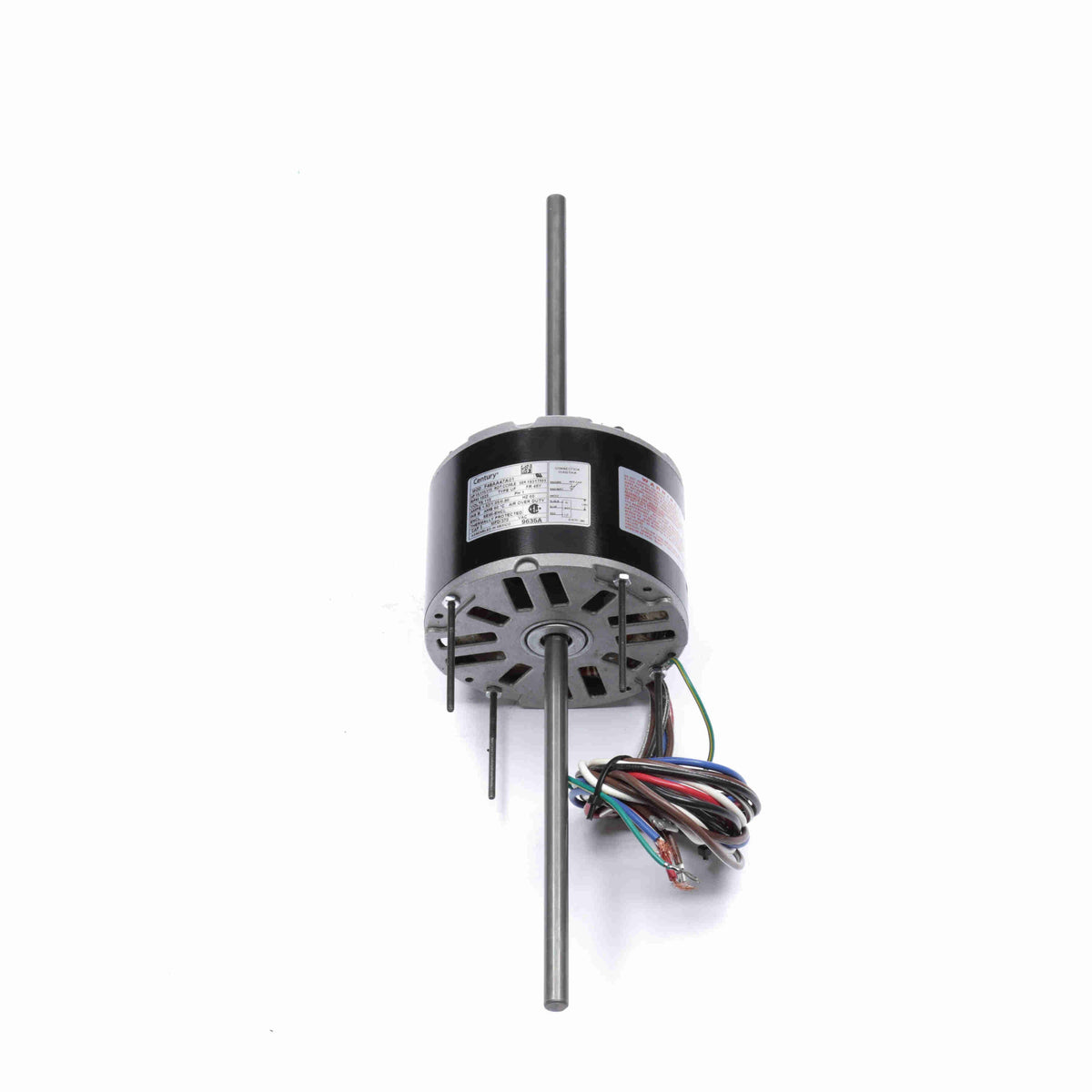

Century 9635A

B007IC40OU

Century Room Air Cond Mtr PSC OAO 1625 RPM

Century Room Air Cond Mtr PSC OAO 1625 RPMzoom

Attributes

Key Value
9635A is listed in Cent.A.O. Smith 9635, A.O. S.
Amps1.92/1.05/0.8, 1.92/1.0.
BearingsSleeve
BrandCentury
C-Dimension20.75 (in.)
Capacitor5MFD @ 370VAC Required
Catalog Number9635A
CEN
CSAY
DE Bearing TypeSleeve
DEM ReferenceNOHP
DutyAir Over
Duty CycleContinuous
Electrical TypePermanent Split Capacit.
Enclosure TypeOAO (Open Air Over), Se.
Frame48Y
Frame MaterialRolled Steel
Frame Type48Y
Frequency60
HP1/6, 1/15, 1/10, 1/6
Hz60
Insulation ClassB
IP Code-
KVA Code-
Max Ambient60?C
Maximum Ambient Tempera.60? C
Motor Diameter5-5/8"
Motor OrientationVertical Shaft Up Or Do.
MountingBand/Ring/Stud
Mounting TypeExtended Studs
Number of Speeds1
ODE Bearing TypeSleeve
Phase1
Product CategoryHVAC/R Motors > Fan Co.
Product TypePSC (Permanent Split Ca.
RotationDouble Shafted, Counter.
RPM1625
RPM (Nameplate)1625
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Diameter1/2 (in.), 1/2"
Shaft Extension8.5 X.5X 8.4 (in.)
Shaft Length8-1/2" x 8-1/2"
Shaft TypeFlat
Ship Weight12 lbs.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic
ULRecognized
Volts115

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
hvacdiscountstore.comCEN--9635A221.21In StockCENTURY MOTORS221.2 @ 1
thumbzoomRaptor SuppliesAE3LAB244.0962811In StockCENTURY244.096281 @ 1
thumbzoommidwestapplianceparts.com9635A-AO-P249.631In StockAO Smith249.63 @ 1
thumbzoomsustainablesupply.comC1563126254.991In StockCentury11.45254.99 @ 1
thumbzoomemotorpro.com9635A261.071In StockCentury12.0261.07 @ 1
thumbzoomindustrialstores.com9635A267.351In Stock19Century Motors by Regal Beloit267.35 @ 1
thumbzoompatrickssupply.com9635A271.251In StockCENTURY271.25 @ 1
thumbzoomDreisilkerCE-RBC-9635A321.971In StockCentury321.97 @ 1
