Century B386

B007ATNHR2

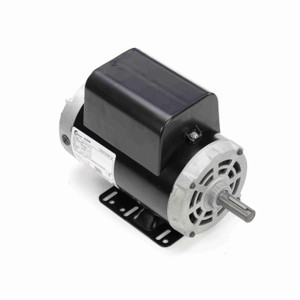

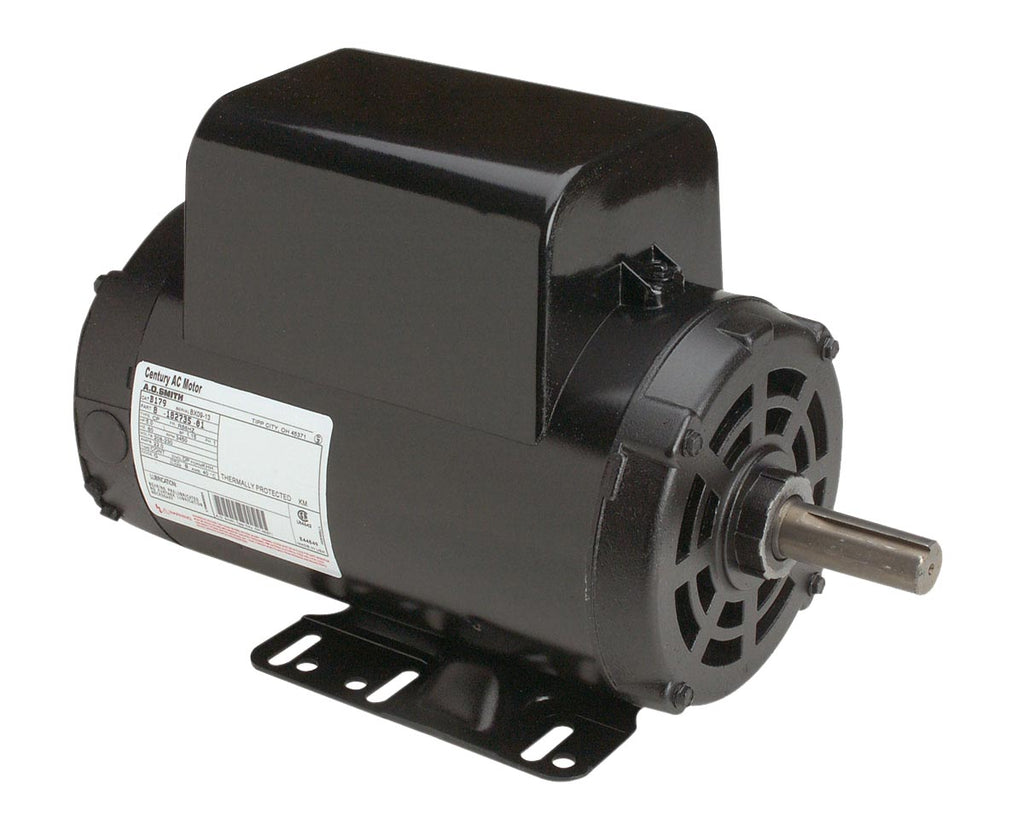

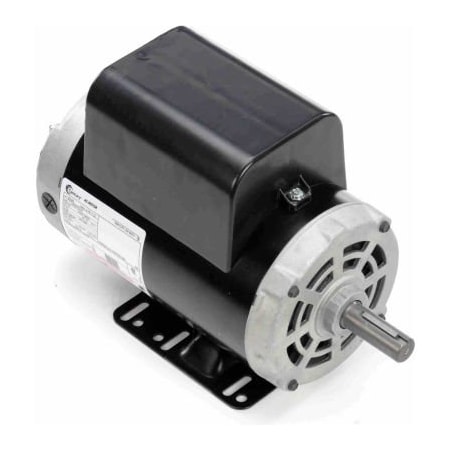

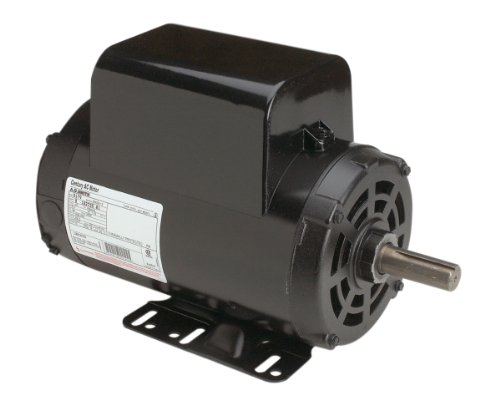

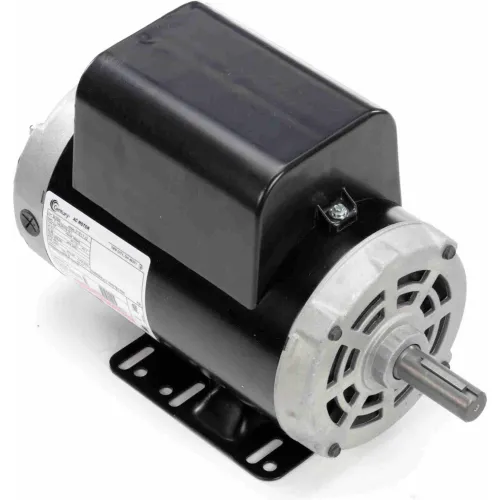

A.O. Smith B386 5 HP, 3600 RPM, 208-230 Volts, 56HZ Frame, 1.15 Service Factor, CWLE Rotation, 7/8-Inch x 2.31-Inch Flat Shaft Compressor Motor

A.O. Smith B386 5 HP, 3600 RPM, 208-230 Volts, 56HZ Frame, 1.15 Service Factor, CWLE Rotation, 7/8-Inch x 2.31-Inch Flat Shaft Compressor Motorzoom

Attributes

Key Value
Amperage22 Amps
Amps22.0, 22
B386 is listed in Centu.A.O. Smith 182679, Cent.
Base MountSix 1-1/8" x 5/16" elli.
BearingsBall
BrandCentury
C-Dimemsion14.56 (in.)
CapacitorIncluded
Catalog NumberB386
CategoryElectric Motor
CEN
Country of Origin (subj.Mexico
CSAY
Current Stock3
DE Bearing TypeBall
DEM ReferenceAOS#B386
DutyContinuous
Duty CycleContinuous
Electrical TypeCapacitor Start, Capaci.
EnclosureODP, DP
Enclosure TypeODP (Open Dripproof), D.
FrameR56HZ, 56HZ
Frame MaterialRolled Steel
Frame Type56HZ
Frequency60, 60 Hz
HP5.0, 5
Hz60
Insulation ClassB
International ShippingNo
IP Code-
ItemAir Compressor Motor
Item ConditionFACTORY NEW
KVA Code-
ManufacturerCentury
Max Ambient40?C
Maximum Ambient Tempera.40? C
ModelB386
Motor Diameter6-1/2"
Motor Orientation-
MountingRigid
mountingRigid Base
Mounting TypeRigid Base
MpnB386
Number of Speeds1
ODE Bearing TypeBall
Phase1
Power5 HP Definite Purpose S.
Product CategoryNEMA Definite Purpose A.
Product TypeCapacitor Start, Capaci.
RotationCCW, Clockwise, CCW Sha.
RPM3450, 3600, 3400 - 3600
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
Service Factor (SF)1.15
Shaft7/8" dia. x 2-1/4" w/ 3.
Shaft Diameter7/8" Keyed, 7/8 (in.)
Shaft Extension2.31 (in.)
Shaft TypeKeyed
Ship Weight47 lbs.
Shpg.50 lbs.
Size12-3/8" x 9" x 10"
SKUZO-G3261119
Speed3450 RPM
Speeds1
SubCategoryMotors/Ac Motors
Thermal Overload Protec.Manual
Thermal ProtectionManual
Type of Overload Protec.Thermally Protected
ULRecognized
UPC0663001193142
Voltage208-230, 208-230 AC
Volts208-230, 208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsurpluscenter.com10-3328362.95138Century362.95 @ 5
thumbzoomktool.netB386429.3315Century429.33 @ 5
thumbzoomcompressor-source.comB386429.9515Century429.95 @ 5
thumbzoomcshincorporated.comUB386460.015AO Smith / Century57.0460.0 @ 5
thumbzoomDreisilkerCE-RBC-B386464.015Century464.0 @ 5
thumbzoomemotorpro.comB386483.0515Century47.0483.05 @ 5
thumbzoomMRO Supply5812192493.015Century493.0 @ 5
thumbzoomsustainablesupply.comC2091457510.5715Century15.0510.57 @ 5
thumbzoommidwestapplianceparts.comB386-AO-P520.5215AO Smith520.52 @ 5
thumbzoomDealers ElectricB386542.315Century56.0542.3 @ 5
thumbzoomVoomi SupplyB386547.6815Century Motors547.68 @ 5
hvacdiscountstore.comCEN--B386555.2715CENTURY MOTORS555.27 @ 5
grainger.caAOSB386557.8109432415CENTURY1.0557.81094324 @ 5
thumbzoomNational Supply NetworkB2776604568.94815AO SMITH568.948 @ 5
thumbzoomsimsupply.comZO-G3261119577.5715Century577.57 @ 5
thumbzoomGlobal IndustrialWBB2776604639.015Century639.0 @ 5
thumbzoomZoroG704968467834.9915A.O. Smith834.99 @ 5
