A.O. Smith Corporation B590

B079Q8CCL8

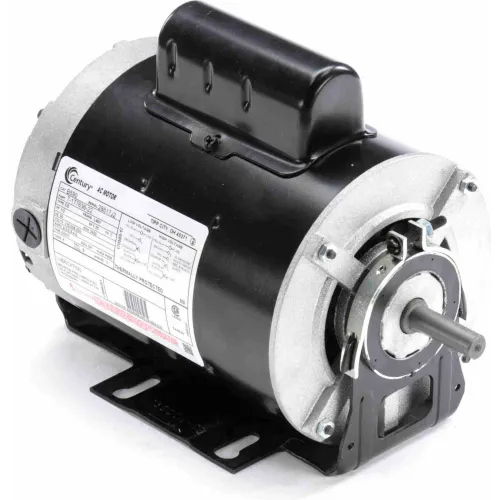

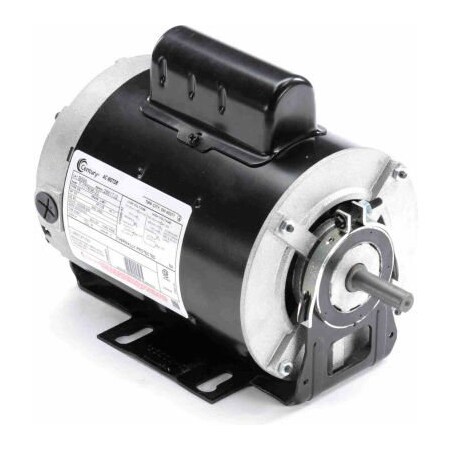

A.O. Smith Corporation A. O. Smith Corporation B590 Motor 48FR

A.O. Smith Corporation A. O. Smith Corporation B590 Motor 48FRzoom

Attributes

Key Value
Amps8/3.8/4
ASINB0091BBUTY
B590 is listed in Centu.A.O. Smith C48J2C1, A.O.
Batteries Required?No
BearingsBall
Best Sellers Rank#1,855,142 in Tools & H.
Body Dia.5 5/8 in
BrandCentury
CapacitorIncluded
CategoryElectric Motor
Country of Origin (subj.Mexico
Customer Reviews4.0 out of 5 stars1 rat.
Date First AvailableAugust 23, 2012
DutyContinuous
Duty CycleContinuous
EnclosureODP
Enclosure TypeODP (Open Dripproof)
Footnotes275
Frame48Y
Frame MaterialRolled steel
Frame RemarksResilient Base
Full Load Amps8.0/4.0-3.8
HP0.5, 1/2
Hz60
Includes5/8 in dia Shaft Bushing
Includes Shaft BushingYes
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemBelt Drive Motor
Item ConditionFACTORY NEW
Item Dimensions LxWxH11.75 x 8.75 x 9.25 inc.
Item model numberB590
Item Package Quantity1
Item Weight17.7 pounds
Length Less Shaft8 3/8 in
ManufacturerCentury
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Diameter5-5/8"
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Motor Mounting TypeCradle Base
Motor Service Factor1.25
Motor Shaft RotationCW/CCW
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
mountingResilient Base
MountingCradle
Mounting Stud Pattern3 5/8 in x 3 5/8 in
MpnB590
Nameplate RPM3,450
National Stock Number6105-01-264-4059
No. of Speeds1
Nominal Efficiency61 %
Number of Speeds1
Overall Length9 15/16 in
Part NumberB590
Phase1, Single
Product Dimensions11.75 x 8.75 x 9.25 inc.
Product TypeCapacitor Start
Product with faster shi.true
Resilient Ring Dia.2 1/2 in
Ring to Ring Center7 15/16 in
RotationReversible
RPM3450, 3600
RPM Range3,001-3,600
Service Factor (SF)1.25
Shaft Dia.5/8 in
Shaft Diameter1/2"
Shaft Length1 9/16 in
Ship Weight20 lbs.
Shippingundefined (Fixed Shippi.
SKUZO-G1976712
StandardsCSA, UL Recognized
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
UNSPSC Code39120000
Usable @ 200VNo
Usable @ 208VYes
Voltage115/208-230V AC
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208/230, 115/208-230
Weight20 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comUB590168.191In StockAO Smith / Century20.0168.19 @ 1
AmazonSCB01BV9D960178.491In StockCentury178.49 @ 1
thumbzoomemotorpro.comB590195.821In StockCentury20.0195.82 @ 1
thumbzoomsustainablesupply.comC1561725200.431In StockCentury19.4200.43 @ 1
AmazonTPB01BV9D960202.491In Stock2CENTURY202.49 @ 1
thumbzoommidwestapplianceparts.comB590-AO-P203.3812AO Smith203.38 @ 1
AmazonB0091BBUTY213.161In StockCentury213.16 @ 1
thumbzoomNational Supply NetworkB2776677216.31In StockAO SMITH216.3 @ 1
thumbzoomhomeessentialsdirect.comB590217.671In StockCentury17.7217.67 @ 1
thumbzoomGlobal IndustrialWBB2776677219.951In StockCentury219.95 @ 1
thumbzoomVoomi SupplyB590220.921In StockCentury Motors220.92 @ 1
thumbzoomDealers ElectricB590239.041In StockCentury20.0239.04 @ 1
thumbzoomsimsupply.comZO-G1976712262.081In StockCentury262.08 @ 1
thumbzoomZoroG604954225313.991In StockA.O. Smith313.99 @ 1
hvacdiscountstore.comCEN--B590324.681In StockCENTURY MOTORS324.68 @ 1
