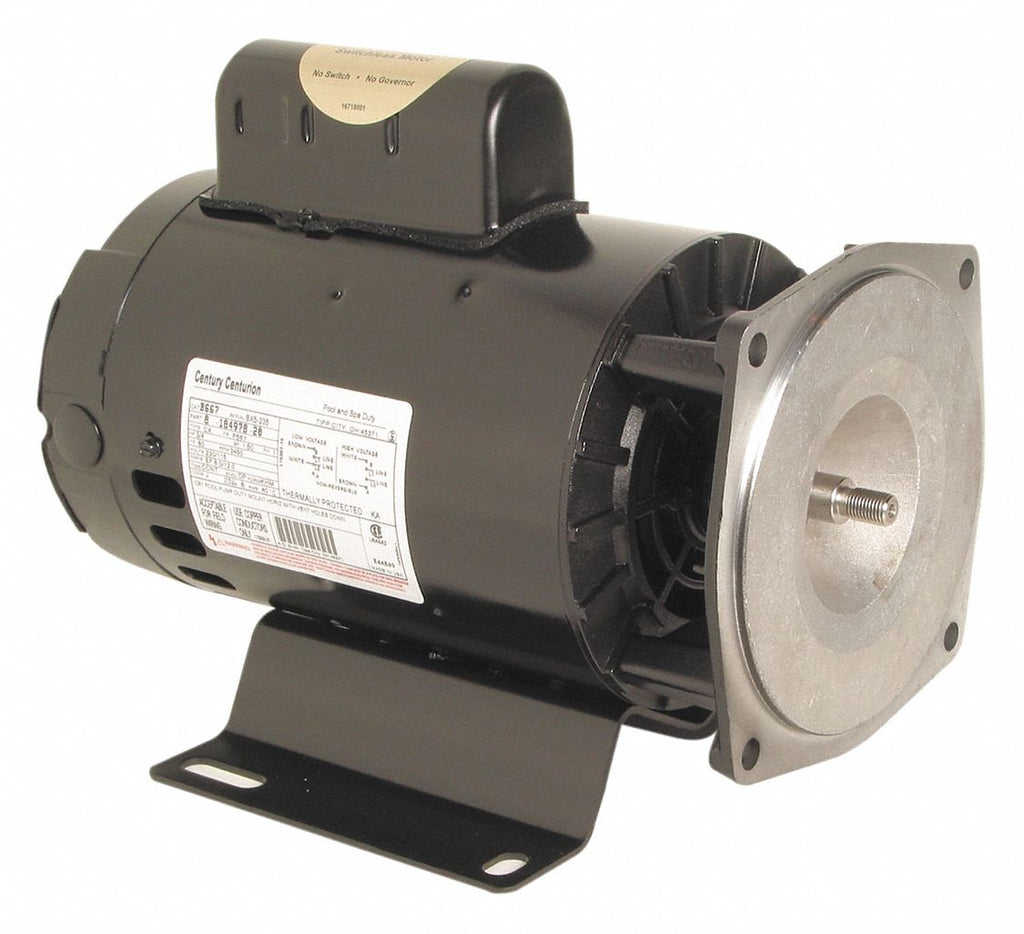

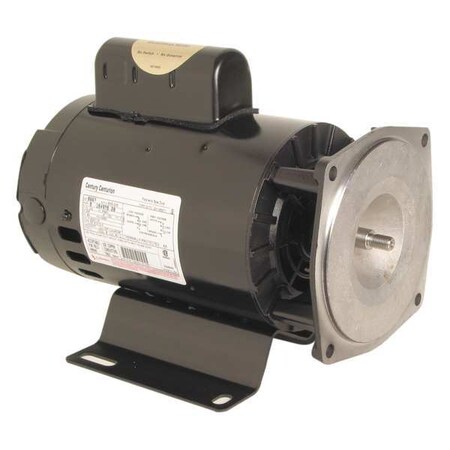

A.O. Smith B667 0.75HP 115V/230V P56Y Frame Single-Speed Motor

A.O. Smith B667 0.75HP 115V/230V P56Y Frame Single-Speed Motorzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
Amps6/12
ApplicationPool/Spa Motor
B667 is listed in Centu.A.O. Smith 184978, Cent.
BearingsBall
Bolt Circle Dia.7 3/16 in
CapacitorIncluded
Conduit Box PositionF3
Country of Origin (subj.Mexico
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
FinishBlack
Frame56Y
Full Load Amps12.8/6.4
Height10 1/2 in
HP3/4
Hz60
Ins. ClassB
Insulation ClassB
ItemPool Pump Motor
Length Less Shaft12 9/16 in
Max. Ambient Temp.40 Degrees C
Max. SF Amps12.0
Maximum Ambient Tempera.40? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Efficiency GroupStandard Efficient
Motor Enclosure DesignOpen Dripproof
Motor Flange MaterialAluminum
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.5
Motor Shaft DesignThreaded
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingRigid
Nameplate RPM3,450
No. of Speeds1
Number of Speeds1
Overall Length13 in
Phase1, Single
Product TypePSC (Permanent Split Ca.
RotationCCW Pump End
RPM3450
RPM Range3,001-3,600
Service Factor (SF)1.50
ShaftThreaded 7/16-20 UNF-2.
Shaft Dia.5/8 in
Shaft DiameterThreaded
Shaft Length7/16 in
Shaft Material303 Stainless Steel
Ship Weight26 lbs.
StandardsCSA, UL
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage115/230V AC
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/230
Weight26 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4479054231.511In Stock26Century26.0231.51 @ 1
thumbzoompatrickssupply.comB667276.381In StockCENTURY276.38 @ 1
thumbzoomemotorpro.comB667321.61In StockCentury26.0321.6 @ 1
thumbzoomsustainablesupply.comC1543462328.711In StockCentury26.35328.71 @ 1
thumbzoommidwestapplianceparts.comB667-AO-P346.511In StockAO Smith346.51 @ 1
thumbzoomindustrialstores.comB667349.671In Stock12Century Motors by Regal Beloit349.67 @ 1
lesliespool.com620070349.991In StockCentury A.O. Smith349.99 @ 1
ptacsolutions.comB667399.691In StockA.O. Smith399.69 @ 1
hottubworks.com620070445.991In StockCentury A.O. Smith445.99 @ 1
Pool Supply World620070479.991In StockCentury A.O. Smith479.99 @ 1
