AO Smith B808

B000LE41M8

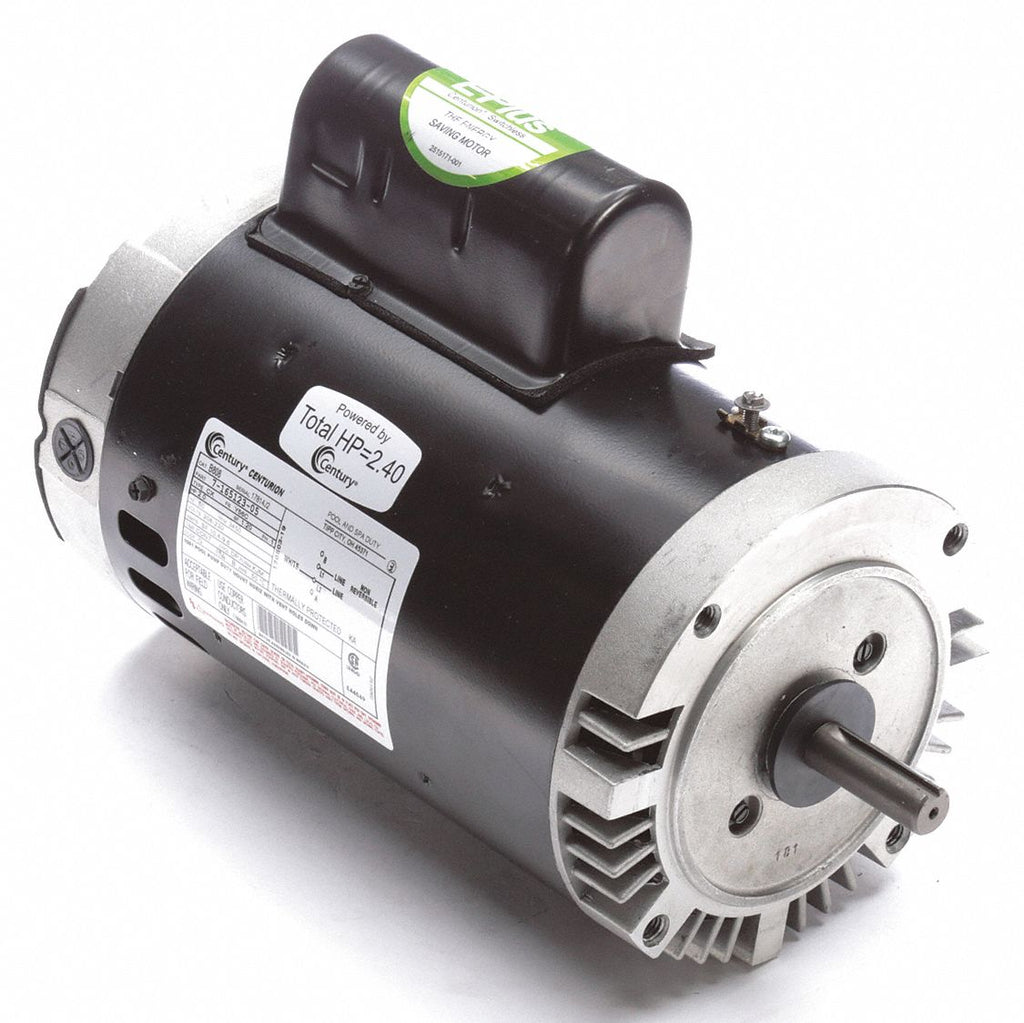

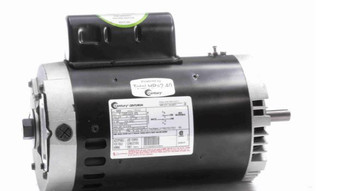

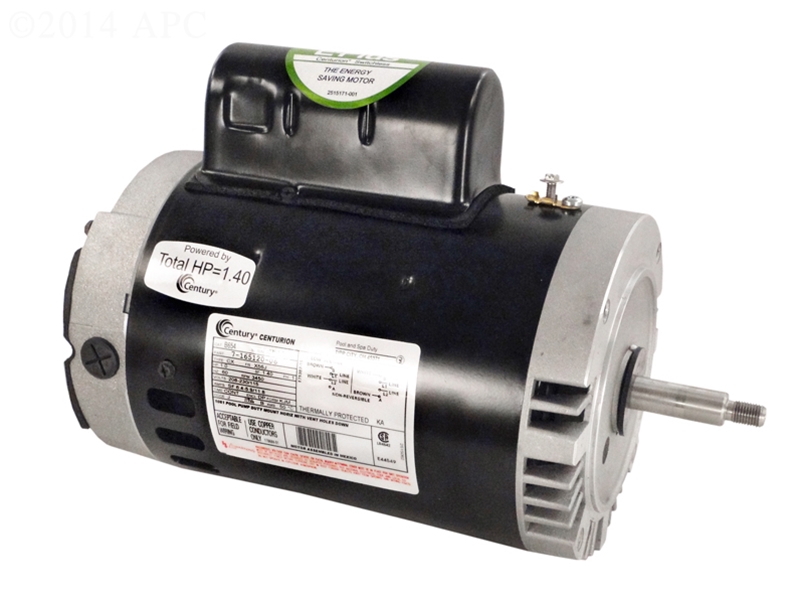

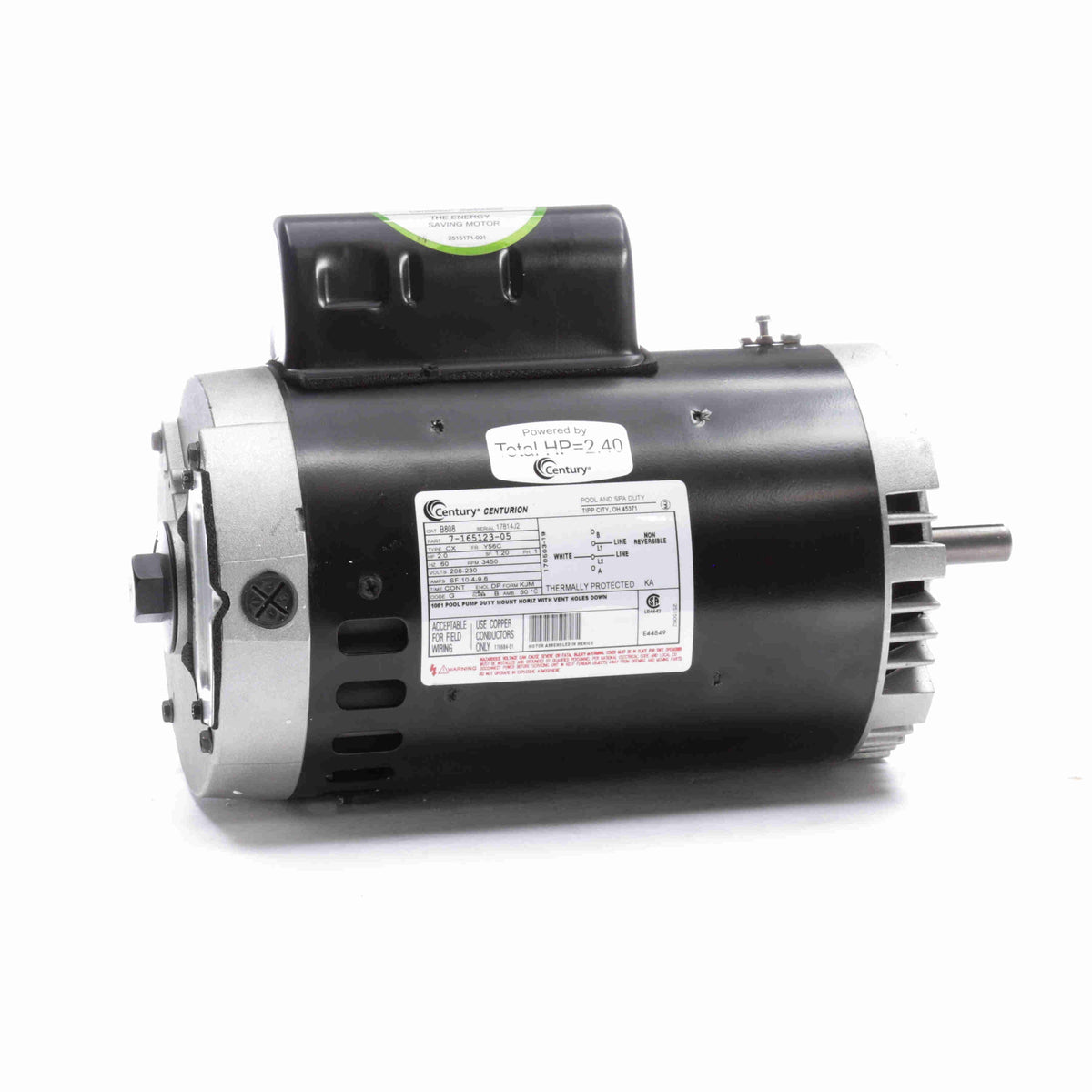

A.O. Smith B808 2HP 230V 1-Speed SF-1.30 56C Frame C-Face Motor

A.O. Smith B808 2HP 230V 1-Speed SF-1.30 56C Frame C-Face Motorzoom

Attributes

Key Value
<span style="color#ff0000;">We cannot shi.
Amps10.4/9.6
B808 is listed in Centu.A.O. Smith K48N2N113, E.
BearingsBall
Body Dia.6.5 in
CapacitorIncluded
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
Frame56C
Full Load Amps10.4
Height11 in
HP2
Hz60
Insulation ClassB
ItemPool Pump Motor
Length Less Shaft11 9/16 in
Maximum Ambient Tempera.50? C
Motor BearingsBall
Motor DesignPermanent Split Capacit.
Motor Diameter6-1/2"
Motor Efficiency GroupHigh Efficient
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeFace
Motor Service Factor1.2
Motor Shaft RotationCCWSE
MountingC-Face
Nameplate RPM3,450
Number of Speeds1
Overall Length13 5/8 in
Phase1, Single
Product TypePSC (Permanent Split Ca.
RotationCCW Pump End
RPM3450
RPM Range3,001-3,600
Service Factor (SF)1.20
Shaft Dia.5/8 in
Shaft Dia. (In.)5/8
Shaft Diameter5/8" Keyed
Shaft Length2 1/16 in
Shaft MaterialAISI 1215 Steel
Ship Weight39 lbs.
StandardsCSA (LR43341/LR94643), .
Thermal ProtectionAutomatic
Voltage208-230V AC
Volts208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comUB808477.71In StockAO Smith / Century39.0477.7 @ 1
thumbzoomZoroG1525097479.991In StockCentury38.8479.99 @ 1
thumbzoomgetpoolparts.comB808531.611In StockCentury Motors531.61 @ 1
thumbzoomemotorpro.comB808531.931In StockCentury39.0531.93 @ 1
thumbzoomsustainablesupply.comC1530297561.091In StockCentury38.8561.09 @ 1
thumbzoommidwestapplianceparts.comB808-AO-P563.361In StockAO Smith563.36 @ 1
thumbzoomRaptor SuppliesAE6ATX936.48455551In StockCENTURY936.4845555 @ 1
