A. O. Smith B869

B0042GAWK6

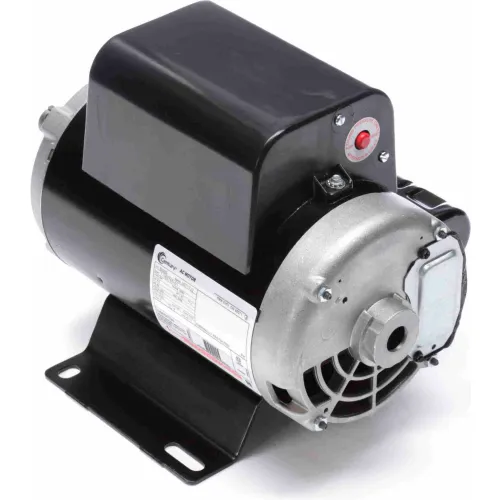

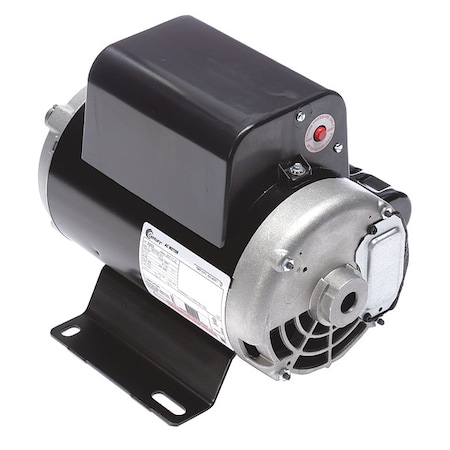

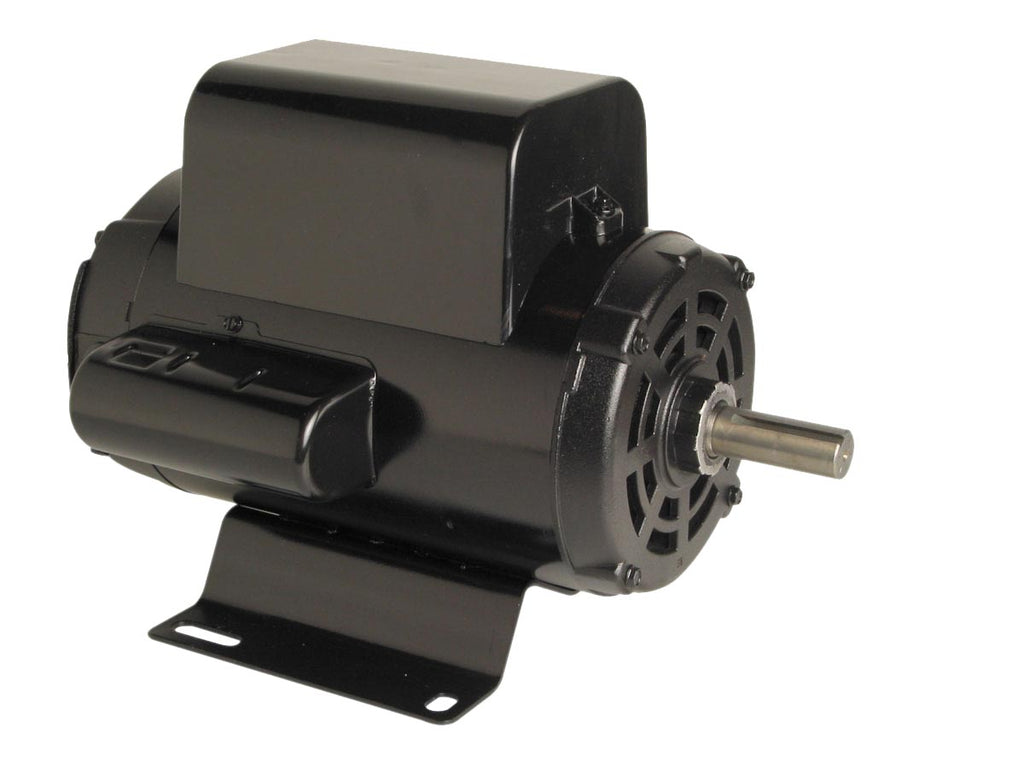

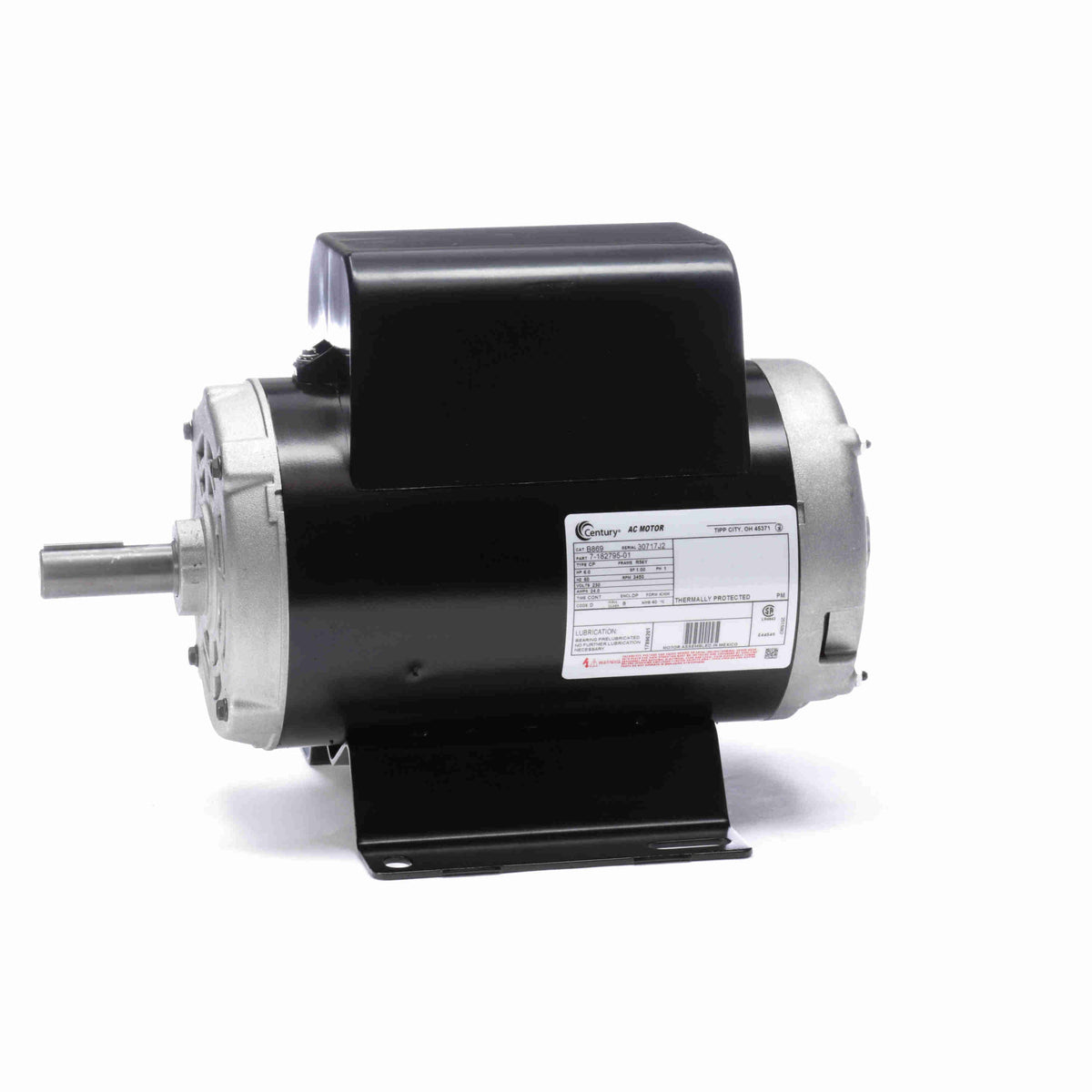

A.O. Smith High Pressure Washer Motor 3600 RPM 230 Volts

A.O. Smith High Pressure Washer Motor 3600 RPM 230 Voltszoom

Attributes

Key Value
Amps24, 24.0
B869 is listed in Centu.Century 193058, A.O. Sm.
BearingsBall
BrandCentury
C-Dimemsion14.56 (in.)
CapacitorIncluded
Catalog NumberB869
CategoryElectric Motor
CEN
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Electrical TypeCapacitor Start, Capaci.
EnclosureODP, DP
Enclosure TypeODP (Open Dripproof), D.
Frame56Y
Frame MaterialRolled Steel
Frame Type56Y
Frequency60
HP6.0, 6
Hz60
Insulation ClassB
IP Code-
ItemPressure Washer Motor
Item ConditionFACTORY NEW
KVA Code-
ManufacturerCentury
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter6-1/2"
Motor Orientation-
MountingC-Face/Rigid
mountingRigid Base
Mounting TypeRigid Base
Number of Speeds1
ODE Bearing TypeBall
Phase1
Product CategoryNEMA Definite Purpose A.
Product TypeCapacitor Start, Capaci.
RotationClockwise, CCW Shaft End
RPM3450, 3600
RPM (Nameplate)3450
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1
Service Factor (SF)1.00
Shaft Diameter7/8" Keyed, 7/8 (in.)
Shaft Extension2.31 (in.)
Shaft TypeKeyed
Ship Weight50 lbs.
Speeds1
Thermal ProtectionManual
Type of Overload Protec.Thermally Protected
ULRecognized
Voltage230
Volts230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comUB869525.781In StockAO Smith / Century55.0525.78 @ 1
thumbzoomZoroG0681077556.9411Century48.4556.94 @ 1
thumbzoomMRO Supply5810924559.91In StockCentury559.9 @ 1
thumbzoomemotorpro.comB869595.061In StockCentury50.0595.06 @ 1
thumbzoomsustainablesupply.comC2090304628.961In StockCentury15.0628.96 @ 1
thumbzoommidwestapplianceparts.comB869-AO-P641.231In StockAO Smith641.23 @ 1
thumbzoomNational Supply NetworkB2776952673.681In StockAO SMITH673.68 @ 1
thumbzoomDealers ElectricB869688.531In StockCentury50.0688.53 @ 1
thumbzoomDreisilkerCE-RBC-B869689.111In StockCentury689.11 @ 1
thumbzoomGlobal IndustrialWBB2776952699.01In StockCentury699.0 @ 1
