Century C426V1

B000CDTMJ0

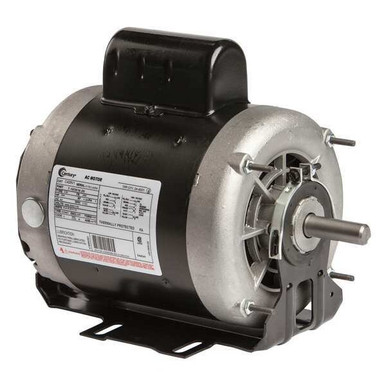

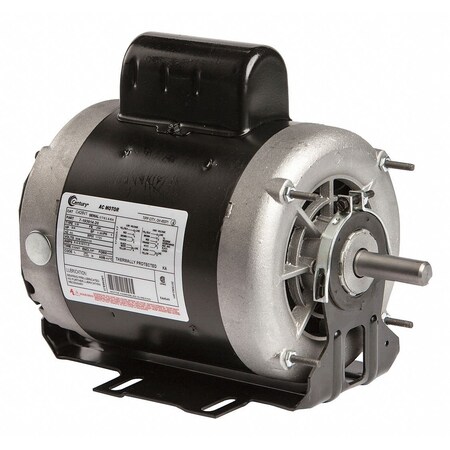

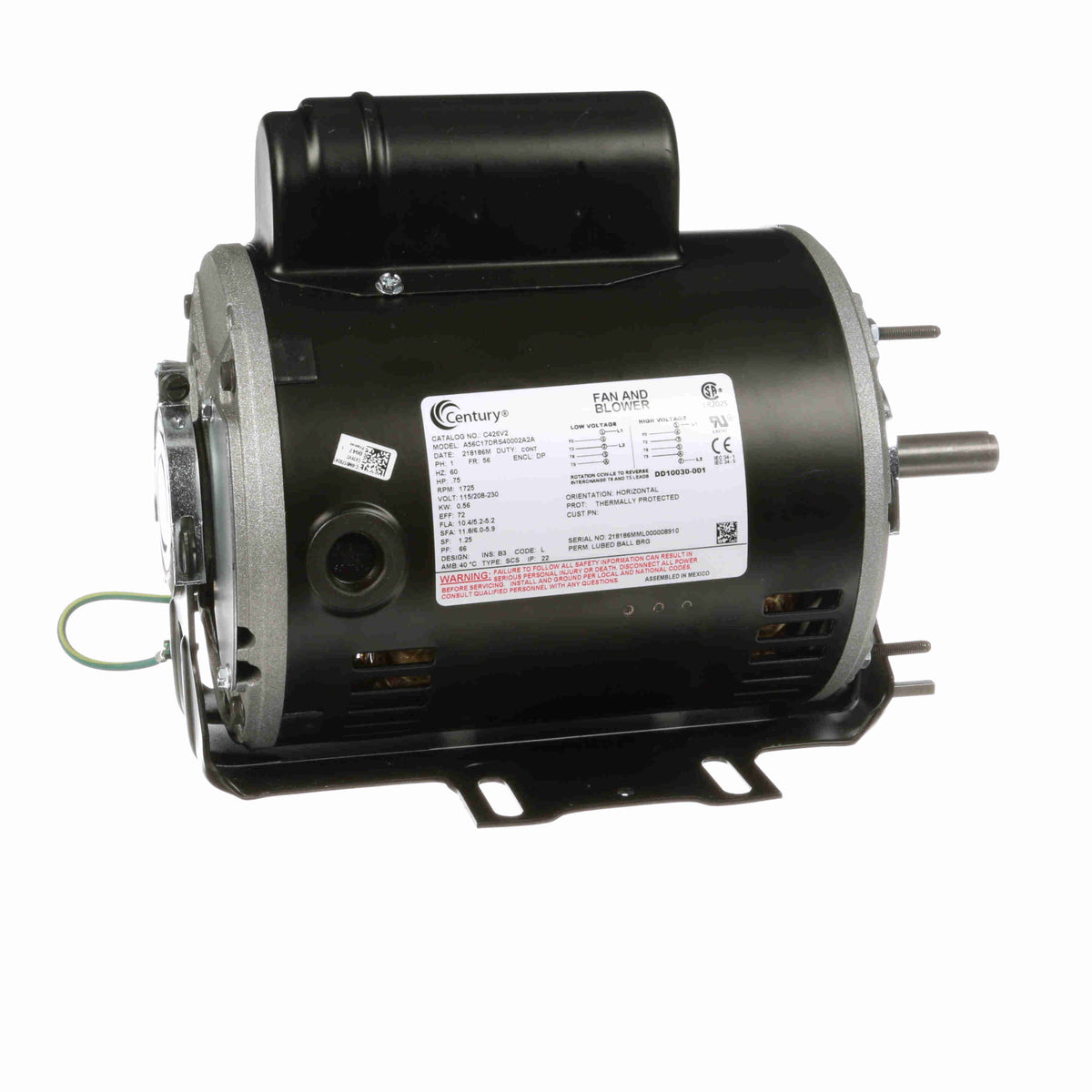

Motor, Cap St, 3/4 HP, 1725, 115/208-230V, 56

Motor, Cap St, 3/4 HP, 1725, 115/208-230V, 56zoom

Attributes

Key Value
Amps10.4/5.2/5.2
BearingsBall
Body Dia.6 9/16 in, 6-1/2", 6 1/.
BrandCentury
CategoryElectric Motor
Country of Origin (subj.Mexico
Current Stock197
DutyContinuous
Duty CycleContinuous
EnclosureODP, DP
Enclosure MaterialRolled steel
Enclosure TypeODP (Open Dripproof)
Footnotes26
Frame56
Frame MaterialRolled steel
Frame RemarksResilient Base
Full Load Amps11.0/5.4-5.5, 10.4/5.2-.
HP3/4, 0.75
Hz60
IncludesResilient Base
Ins. ClassB
Insulation ClassB
International ShippingNo
ItemBelt Drive Motor
Item ConditionFACTORY NEW
Lead TimeExpected to ship in 1-2.
Length Less Shaft9 1/2 in, 9-3/16"
ManufacturerCentury
Manufacturer Model #OL56100071-001
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C, 40 Degre.
Maximum Ambient Tempera.40? C
Motor ApplicationHVAC/R
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel, Rolled steel
Motor Mounting PositionHorizontal, All Angle
Motor Mounting TypeCradle Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length7.15"
Motor Sub ApplicationBelt Drive Fan/Blower
Motor Thermal ProtectionAuto
mountingResilient Base
MountingBase
Mounting Stud Pattern4-1/8" x 4-1/8", 4-1/8 .
MpnC426V2
Nameplate RPM1,725
No. of Speeds1
Nominal Efficiency68.0%, 72 %
Overall Length11-1/16", 11 1/2 in, 11.
Phase1, Single
Product TypeCapacitor Start
Resilient Ring Dia.2-1/2", 2 1/2 in
Ring to Ring Center9 3/16 in, 8-11/16"
RotationReversible
RPM1725, 1800
RPM Range1,701-1,800, 1,400 - 1,.
Service Factor1.25
Shaft Dia.5/8 in, 5/8"
Shaft Diameter5/8"
Shaft Length1.96, 2 in, 1-7/8"
Ship Weight30 lbs.
SKUZO-G7787616
StandardsCE, CSA, UL Recognized,.
SubCategoryMotors/Ac Motors
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VYes
Voltage115/208-230V AC, 115/20.
Voltage Compatibility115, 120, 208, 230, 240.
Volts115, 208, 230, 115/208/.
Weight27 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG7787616223.991289Century27.1223.99 @ 1
AmazonTPB000CDTMJ0268.541In Stock3CENTURY268.54 @ 1
industrialautomationparts.comMOT-2246-E273.511In StockCentury273.51 @ 1
thumbzoomsimsupply.comZO-G7787616278.191197Century278.19 @ 1
thumbzoomktool.netC426V2323.091In StockCentury323.09 @ 1
thumbzoomemotorpro.comC426V2378.121In StockCentury30.0378.12 @ 1
thumbzoomMRO Supply5918199383.621In StockCentury383.62 @ 1
thumbzoommidwestapplianceparts.comC426V2-AO-P404.661In StockAO Smith404.66 @ 1
grainger.caAOSC426V1408.683476151In StockCENTURY27.1408.68347615 @ 1
thumbzoomVoomi SupplyC426V2418.741In StockCentury Motors418.74 @ 1
thumbzoomDealers ElectricC426V2473.131In StockCentury36.0473.13 @ 1
uri.comC426V2898.661In StockCentury34.0898.66 @ 1
