Description:

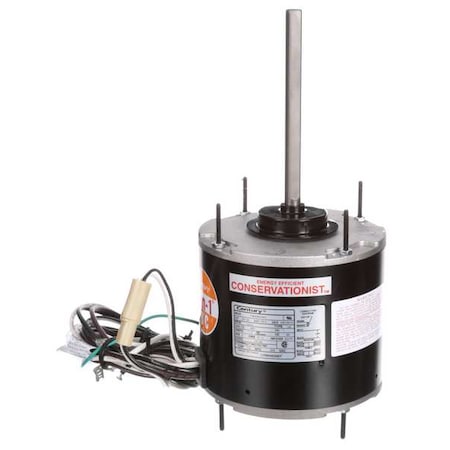

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 to 1/6 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, 1.20 Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz, Replacement For Mfr. No. 796A, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
Weight:
16.0
Weight:
13.2 LB
Preferred Price:
382.3
Price:
382.3
Min Simple Price:
215.99
Absolute Min Price:
306.7
Min Price:
306.7
Dimensions:
[17.0, 8.0, 8.0]
qty:
21
simpleSku:
NjIzOQ:::ORM4658BF
sku:
NjIzOQ::0S:ORM4658BF@y0
condition:
11
seller:
Zoro
amzMan:
ao smith
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amps | 1.2 |
| Bearings | Ball |
| Body Dia. | 5 5/8 in |
| Bolt Circle Dia. | 5 1/8 in |
| Brand, Manufacturer | Century |
| Capacitor | 7.5MFD @ 370VAC Required |
| Current Stock | 3 |
| Date First Available | November 24, 2014 |
| Duty Cycle | Continuous |
| Enclosure Type | TEAO (Totally Enclosed Air Over) |
| Frame | 48 |
| GTIN | 696334120301 |
| HP | 1/6, 1/3, 1/3 to 1/6 |
| Hz | 60 |
| Insulation Class | F |
| International Shipping | No |
| Item | Condenser Fan Motor |
| Item model number, Mpn | ORM4658BF |
| Lead Length | 48 in |
| Lead Time | Expected to ship in 1-2 business days |
| Length Less Shaft | 5 3/4 in |
| Max. Ambient Temp. | 70 Degrees C |
| Maximum Ambient Temperature | 70? C |
| Motor Design | Permanent Split Capacitor |
| Motor Diameter | 5-5/8" |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Mounting Type | Stud |
| Motor Service Factor, No. of Speeds, Number of Speeds, Phase | 1 |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Mounting | Band/Hole/Ring/Stud |
| Mounting Stud Length | 1 1/8 in |
| ORM4658BF is listed in Century's cross reference as a substitute for the following | A.O. Smith F48AB82A01, Emerson 3735, York 024-276532, A.O. Smith F48SN6L40, A.O. Smith F48SN6V24, A.O. Smith F48SQ6V67, Emerson 3736H, Emerson 3737H, Dayton 4ME14, Dayton 4ME16, Marathon 3737, York 024-25050, Emerson 3736, GE 3736, Emerson 3737, GE 3737, Emerson 1881 |
| Overall Length | 12 1/4 in |
| Phase | Single |
| Product Dimensions | 16.2 x 7.2 x 7.9 inches; 16 Pounds |
| Product Type | PSC (Permanent Split Capacitor) |
| Product with faster shipping | true |
| Promotion Restriction | Not eligible for promotion |
| Rotation | Reversible |
| RPM | 1075 |
| RPM Range | 1,001-1,100 |
| Service Factor (SF) | 1.00 |
| Shaft Dia. | 1/2 in |
| Shaft Diameter | 1/2" |
| Shaft Length | 6 1/2 in, 6-1/2" |
| Ship Weight | 13 lbs. |
| Shipping | undefined (Fixed Shipping Cost), Calculated at Checkout |
| SKU | ZO-G1452193 |
| Stud Size | #8-32 |
| SubCategory | Motors/Ac Motors |
| Thermal Protection | Automatic |
| Voltage | 460V AC |
| Volts | 460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G1452193 | 215.99 | 215.99 | 1 | 18 | Century | 16.39 | 215.99 @ Qty: 1+ | |
 | Voomi Supply | ORM4658BF | 227.38 | 227.38 | 1 | In Stock | Century Motors | 227.38 @ Qty: 1+ | ||
 | emotorpro.com | ORM4658BF | 238.47 | 238.47 | 1 | In Stock | Century | 13.0 | 238.47 @ Qty: 1+ | |
 | midwestapplianceparts.com | ORM4658BF-AO-P | 254.35 | 254.35 | 1 | In Stock | AO Smith | 254.35 @ Qty: 1+ | ||
 | simsupply.com | ZO-G1452193 | 258.07 | 258.07 | 1 | 3 | Century | 258.07 @ Qty: 1+ | ||
 | National Supply Network | B2776583 | 263.15 | 263.15 | 1 | In Stock | AO SMITH | 263.15 @ Qty: 1+ | ||
 | homeessentialsdirect.com | ORM4658BF | 265.16 | 265.16 | 1 | In Stock | CENTURY | 265.16 @ Qty: 1+ | ||
 | industrialstores.com | ORM4658BF | 278.47 | 278.47 | 1 | 1 | Century Motors by Regal Beloit | 278.47 @ Qty: 1+ | ||
 | Global Industrial | WBB2776583 | 285.95 | 285.95 | 1 | In Stock | Century | 285.95 @ Qty: 1+ | ||
| hvacdiscountstore.com | CEN--ORM4658BF | 286.72 | 286.72 | 1 | In Stock | CENTURY MOTORS | 286.72 @ Qty: 1+ | |||
 | sustainablesupply.com | C2763153 | 337.94 | 337.94 | 1 | In Stock | Century | 16.39 | 337.94 @ Qty: 1+ | |
 | Raptor Supplies | AE3LAX | 416.749203 | 416.749203 | 1 | In Stock | CENTURY | 416.749203 @ Qty: 1+ | ||
| uri.com | ORM4658BF | 554.0 | 554.0 | 1 | In Stock | Century | 14.0 | 554.0 @ Qty: 1+ |
