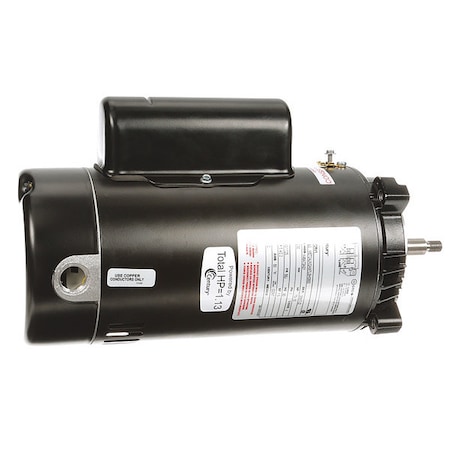

A. O. Smith STS1072RV1

B004UHNIAI

3/4-1/10 Hp Threaded Shaft 2 Speed Motor 3450/1725 230 5.4/2.2 1.5 56

3/4-1/10 Hp Threaded Shaft 2 Speed Motor 3450/1725 230 5.4/2.2 1.5 56zoom

Attributes

Key Value
Ambient Temperature50 Degrees C
Amps5.4/2.2
BearingsBall
CapacitorIncluded
Conduit Box PositionF3
Country of Origin (subj.Mexico
Duty CycleContinuous
Enclosure TypeODP (Open Dripproof)
FinishUnfinished
Frame56J
Full Load Amps5.4/2.2
HP3/4, 1/10, 1/10, 3/4
Hz60
Ins. ClassB
Insulation ClassB
ItemPool Pump Motor
Length Less Shaft12 1/8 in
Max. Ambient Temp.50 Degrees C
Maximum Ambient Tempera.50? C
Motor ApplicationPump
Motor BearingsBall
Motor DesignCapacitor-Start/Run
Motor Diameter6-1/2"
Motor Enclosure DesignOpen Dripproof
Motor Flange MaterialAluminum
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.5
Motor Shaft DesignThreaded
Motor Shaft RotationCCWSE
Motor Sub ApplicationPool and Spa Pump
Motor Thermal ProtectionAuto
MountingC-Face
Nameplate RPM3,450/1,725
No. of Speeds2
Number of Speeds2
Overall Length14 11/16 in
Phase1, Single
Product TypeCapacitor Start, PSC (P.
RotationCCW Pump End
RPM1725/3450
RPM Range3,001-3,600
Service Factor (SF)1.50
ShaftThreaded
Shaft Dia.5/8 in
Shaft DiameterThreaded
Shaft Length2 9/16 in
Shaft MaterialStainless Steel
Ship Weight27 lbs.
StandardsCalifornia Energy Commi.
Thermal ProtectionAutomatic
Usable @ 200VNo
Usable @ 208VNo
Voltage230V AC
Voltage Compatibility115/200-230V AC, 115/20.
Volts230
Weight28 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcshincorporated.comSTS1072RV1273.131In StockAO Smith / Century23.0273.13 @ 1
thumbzoomZoroG8651542288.773In Stock25Century28.0288.77 @ 3
thumbzoomemotorpro.comSTS1072RV1316.191In StockCentury27.0316.19 @ 1
thumbzoomsustainablesupply.comC2090995330.861In StockCentury15.0330.86 @ 1
thumbzoommidwestapplianceparts.comSTS1072RV1-AO-P341.331In StockAO Smith341.33 @ 1
thumbzoomVoomi SupplySTS1072RV1370.761In StockAO Smith370.76 @ 1
Wild West Pool SuppliesSTS1072RV1462.831In StockA.O. Smith25.51462.83 @ 1
