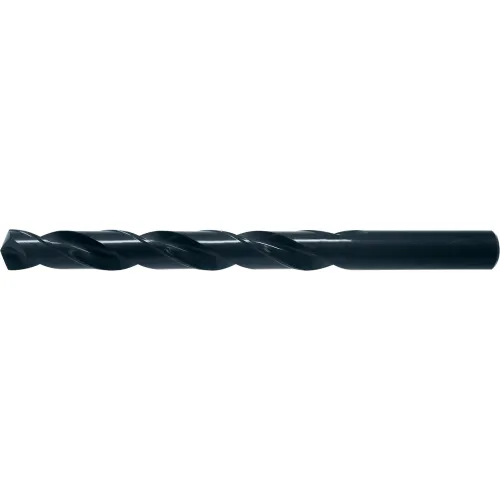

Chicago-Latrobe 45771 150ASP Heavy Duty Jobber Length Drill Bit, A Drill - Letter, 0.234 in Drill - Decimal Inch, 135 deg Point, HSS, Black Oxide (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 45771
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Cast Iron,. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2340 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.234, 0.2340" |
| Diameter (Wire/Let) | A |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | A |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.234 in |
| Drill Size - Letter | A |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 2.6250", 2 5/8 in, 2-5/. |
| Flute Length (Metric) | 66.67mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 31/32 in |
| Measurement System | Imperial |
| Number of Flutes | 2 |
| Overall Length | 3.8750", 3 7/8 in, 3-7/. |
| Overall Length (Metric) | 98.42mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 150ASP |
| Shank Configuration | Straight |
| Shank Dia. | 7/32 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.234, 0.2340", 0.234 i. |
| Shank Size (Metric) | 5.94mm |
| Shank Type | Straight |
| Style | 150ASP |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | A |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6128888 | 2.72 | 13 | 36 | | Chicago-Latrobe | | 2.72 @ 13 |
 | Global Industrial | WBB2547831 | 2.97 | 12 | 33 | | Chicago-Latrobe | | 2.97 @ 12 |
 | Zoro | G3285195 | 3.25 | 1 | 294 | | Chicago-Latrobe | 0.4 | 3.25 @ 1 |
 | Megadepot | 45771 | 3.41 | 1 | 33 | | Chicago-Latrobe | | 3.41 @ 1 |
 | usmegastore.com | 45771 | 3.45 | 1 | 33 | | Chicago-Latrobe | | 3.45 @ 1 |
 | heavydutydepot.com | 45771 | 3.45 | 29 | 28 | | Chicago-Latrobe | | 3.45 @ 29 |
 | sustainablesupply.com | C1464012 | 4.37 | 1 | 36 | | Chicago-Latrobe | 0.03 | 4.37 @ 1 |
 | Raptor Supplies | AA9VKF | 4.424706 | 1 | 36 | | CHICAGO-LATROBE | | 4.424706 @ 1 |
 | bscsource.com | 45771 | 4.69 | 1 | In Stock | | Chicago-Latrobe | | 4.69 @ 1 |
 | National Supply Network | 81132011 | 14.87 | 1 | 33 | | Chicago-Latrobe | | 14.87 @ 1 |
