- mpn45776
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

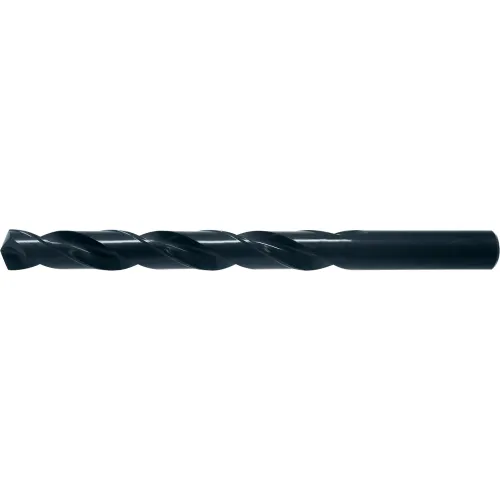

Chicago-Latrobe 45776 150ASP Heavy Duty Jobber Length Drill Bit, F Drill - Letter, 0.257 in Drill - Decimal Inch, 135 deg Point, HSS, Black Oxide (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 45776
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Cast Iron,. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2570 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2570", 0.257 |
| Diameter (Wire/Let) | F |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | F |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.257 in |
| Drill Size - Letter | F |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Black Oxide |
| Flute Length | 2-7/8 in, 2.8750", 2 7/. |
| Flute Length (Metric) | 73.02mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 5/32 in |
| Measurement System | Imperial |
| Number of Flutes | 2 |
| Overall Length | 4-1/8 in, 4.1250", 4 1/. |
| Overall Length (Metric) | 104.77mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 150ASP |
| Shank Configuration | Straight |
| Shank Dia. | 1/4 in |
| Shank Length | 1.2500", 1 1/4 in |
| Shank Length (Metric) | 31.75mm |
| Shank Size | 0.257 in Dia x 1.25 in . |
| Shank Size (Metric) | 6.53mm |
| Shank Type | Straight |
| Style | 150ASP |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | F |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6128892 | 2.86 | 13 | 34 | | Chicago-Latrobe | | 2.86 @ 13 |
 | Global Industrial | WBB2547618 | 3.12 | 12 | 32 | | Chicago-Latrobe | | 3.12 @ 12 |
 | usmegastore.com | 45776 | 3.56 | 1 | 32 | | Chicago-Latrobe | | 3.56 @ 1 |
 | Megadepot | 45776 | 3.56 | 1 | 34 | | Chicago-Latrobe | | 3.56 @ 1 |
 | Zoro | G2910327 | 3.59 | 1 | 1215 | | Chicago-Latrobe | 0.04 | 3.59 @ 1 |
 | heavydutydepot.com | 45776 | 3.59 | 28 | 27 | | Chicago-Latrobe | | 3.59 @ 28 |
 | sustainablesupply.com | C1464015 | 4.37 | 1 | 34 | | Chicago-Latrobe | 0.04 | 4.37 @ 1 |
 | Raptor Supplies | AA9VKK | 4.648176 | 1 | 34 | | CHICAGO-LATROBE | | 4.648176 @ 1 |
 | bscsource.com | 45776 | 4.79 | 1 | In Stock | | Chicago-Latrobe | | 4.79 @ 1 |
 | National Supply Network | 81132060 | 14.99 | 1 | 32 | | Chicago-Latrobe | | 14.99 @ 1 |
