- mpn45784
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

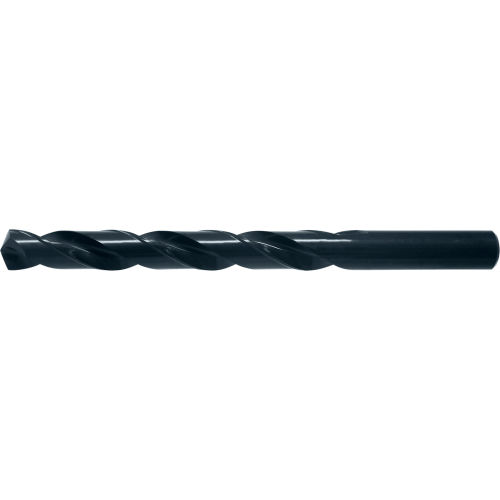

Chicago-Latrobe 45784 150ASP Heavy Duty Jobber Length Drill Bit, N Drill - Letter, 0.302 in Drill - Decimal Inch, 135 deg Point, HSS, Black Oxide (Each)
- Brand: Chicago Latrobe
- PartNumber: 45784
- PackageQuantity: 6
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Cast Iron,. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.3020 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.302, 0.3020" |
| Diameter (Wire/Let) | N |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Black and Gold Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | N |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0000 in |
| Drill Size - Decimal In. | 0.302 in |
| Drill Size - Letter | N |
| Drill Size System | Letter |
| Drill Style | Jobber Drill |
| Finish | Black Oxide, Black and . |
| Flute Length | 3-1/16 in, 3 1/16 in, 3. |
| Flute Length (Metric) | 77.79mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 2 19/64 in |
| Measurement System | Imperial |
| Number of Flutes | 2 |
| Overall Length | 4.3750", 4-3/8 in, 4 3/. |
| Overall Length (Metric) | 111.13mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 150ASP |
| Shank Configuration | Straight |
| Shank Dia. | 19/64 in |
| Shank Length | 1 5/16 in, 1.3125" |
| Shank Length (Metric) | 33.34mm |
| Shank Size | 0.302 in Dia x 1.3125 i. |
| Shank Size (Metric) | 7.67mm |
| Shank Type | Straight |
| Style | 150ASP |
| Surface Condition | Steam Oxide |
| Through Coolant (Yes/No) | No |
| Tool Size | N |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | 45784 | 3.96 | 1 | 25 | | Chicago-Latrobe | | 3.96 @ 1 |
 | heavydutydepot.com | 45784 | 3.96 | 26 | 25 | | Chicago-Latrobe | | 3.96 @ 26 |
 | MRO Supply | 6128900 | 4.0 | 9 | 25 | | Chicago-Latrobe | | 4.0 @ 9 |
 | usmegastore.com | 45784 | 4.89 | 1 | 25 | | Chicago-Latrobe | | 4.89 @ 1 |
 | Zoro | G1369356 | 5.18 | 1 | 170 | | Chicago-Latrobe | 0.4 | 5.18 @ 1 |
 | Raptor Supplies | AA9VKU | 6.525324 | 1 | 25 | | CHICAGO-LATROBE | | 6.525324 @ 1 |
 | bscsource.com | 45784 | 6.69 | 1 | 25 | | Chicago-Latrobe | | 6.69 @ 1 |
 | Guardian | 81132144 | 9.83 | 1 | 25 | | Chicago-Latrobe | | 9.83 @ 1 |
 | National Supply Network | 81132144 | 16.98 | 1 | In Stock | | Chicago-Latrobe | | 16.98 @ 1 |
 | Global Industrial | WBB2547698 | 23.76 | 1 | 25 | | Chicago-Latrobe | | 23.76 @ 1 |
