Chicago Latrobe 50128

B000LE8DQI

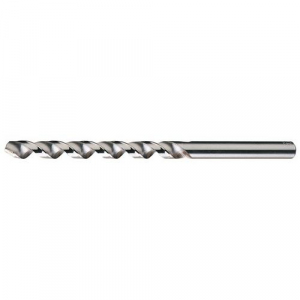

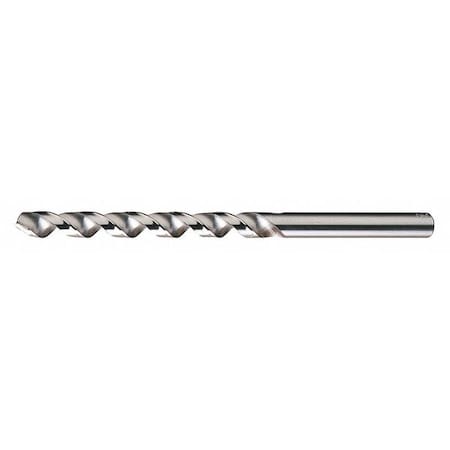

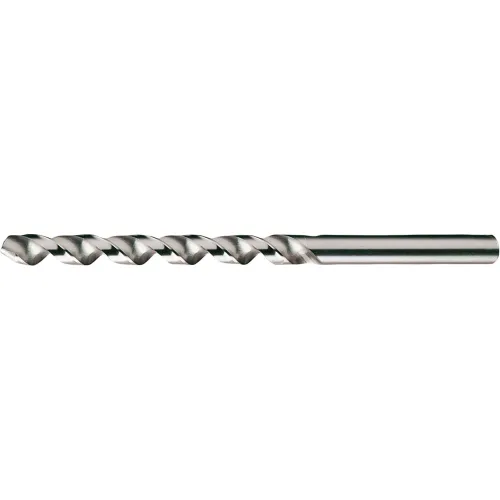

Chicago Latrobe 120B High-Speed Steel Long Length Drill Bit, Uncoated (Bright), Round Shank, 118 Degree Conventional Point, 7/16" Size (Pack of 1)

Chicago Latrobe 120B High-Speed Steel Long Length Drill Bit, Uncoated (Bright), Round Shank, 118 Degree Conventional Point, 7/16" Size (Pack of 1)zoom

Attributes

Key Value
ApplicationFor Metalworking
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.United States
Cutting DirectionRight Hand
Decimal Equivalent0.4375
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.4375"
Diameter (Fraction)7/16"
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBright
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle118 Degrees
Drill Bit Point TypeConventional Point
Drill Bit Size7/16 in
Drill ConstructionHigh Helix
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Drill Length ClassTaper Length
Drill Point Length0.1314 in
Drill Size SystemFractional
Drill StyleTaper Length Drill
Finish - MachiningBright (Uncoated)
Flute Length4 5/8 in, 4.6250"
Flute Length (Metric)117.47 mm.
Flute TypeSpiral
GradeGeneral Purpose
Hand of CutRight
Hand of SpiralRight
Helix Angle40 Degrees
ItemTaper Length Drill Bit
List Number120B
MaterialHSS
Material - MachiningHigh Speed Steel
Material Grade - Machin.General Purpose
Maximum Drilling Depth4 5/8 in
Measurement SystemFractional Inch, Imperi.
Number of Flutes2
Overall Length7 1/4 in, 7.2500"
Overall Length (Metric)184.15 mm.
Point Angle118?
Point StyleRadial
Point TypeRadial
Primary Material Applic.Aluminum, Brass, Bronze.
Primary Material Applic.N, P
Series120B
Shank ConfigurationStraight
Shank Dia.7/16 in
Shank Length2.6250", 2 5/8 in
Shank Length (Metric)66.67 mm.
Shank Size0.4375"
Shank Size (Metric)11.11 mm.
Shank TypeStraight
Shank Type - MachiningStraight
Sizes Included7/16"
Spiral DirectionRight Hand
StandardsANSI
Style120B
Surface ConditionBright
Tool Size7/16"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply613055216.533In StockChicago-Latrobe16.53 @ 3
thumbzoomusmegastore.com5012817.561In StockChicago-Latrobe17.56 @ 1
thumbzoomheavydutydepot.com5012817.566In StockChicago-Latrobe17.56 @ 6
thumbzoomGlobal IndustrialWBB254692118.51In StockChicago-Latrobe18.5 @ 1
thumbzoomZoroG298431321.11In StockChicago-Latrobe0.2221.1 @ 1
thumbzoomGuardian8155428938.961In StockChicago-Latrobe38.96 @ 1
