- mpn54012
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

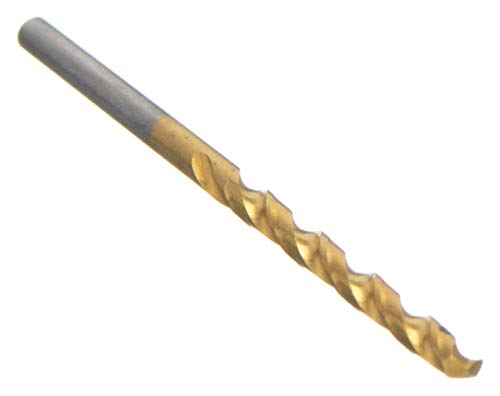

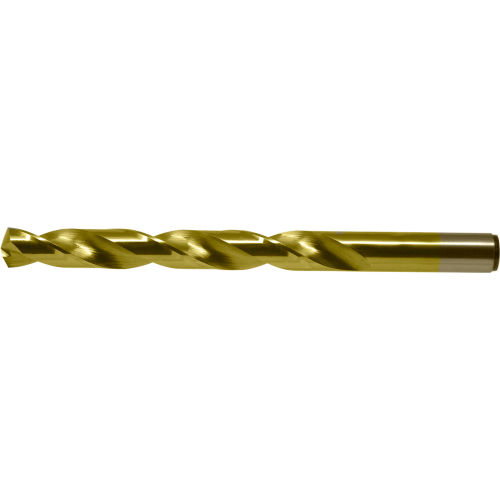

Jobber Bit, 2, Cobalt Steel
- Brand: Chicago Latrobe
- PartNumber: 54012
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Chicago-Latrobe
- Label: Chicago-Latrobe
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Tool Steel. |
| Brand | Chicago-Latrobe |
| Case Quantity | 12 per case |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 2-5/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2210 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #2 |
| Drill Construction | Heavy-Duty |
| Drill Diameter | #2 |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0007 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0458 in |
| Drill Size - Decimal In. | 0.221 in |
| Drill Size - Wire | #2 |
| Drill Style | Jobber Drill |
| Finish | TiN Coated |
| Flute Length | 2.625 in, 2 5/8 in, 2-5. |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right Hand Cut |
| Hand of Spiral | Right Hand Spiral |
| Item | Jobber Length Drill Bit |
| Material | M42 HSS-Co 8%, Cobalt, . |
| Maximum Drilling Depth | 1 31/32 in |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 3.875 in, 3 7/8 in, 3-7. |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Product Type | Jobber Drill |
| Series | Heavy-Duty, 550-TN/2550 |
| Shank Configuration | Straight |
| Shank Dia. | 7/32 in |
| Shank Length | 1.25 in, 1 1/4 in |
| Shank Size | 0.221 in Dia x 1.25 in . |
| Shank Type | Straight |
| Style | 550-TN |
| Surface Condition | TiN |
| Surface Finish | TiN |
| Through Coolant (Yes/No) | No |
| Tool Size | #2 |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6131299 | 7.41 | 5 | 12 | | Chicago-Latrobe | | 7.41 @ 12 |
 | heavydutydepot.com | 54012 | 7.42 | 14 | 12 | | Chicago-Latrobe | | 7.42 @ 14 |
 | usmegastore.com | 54012 | 8.28 | 1 | 12 | | Chicago-Latrobe | | 8.28 @ 12 |
 | rshughes.com | 662355-54012 | 9.95 | 1 | 12 | 35 | Chicago-Latrobe | | 9.95 @ 12 |
 | Zoro | G3681422 | 10.05 | 1 | 56 | | Chicago-Latrobe | 0.03 | 10.05 @ 12 |
 | sustainablesupply.com | C1464681 | 12.64 | 1 | 12 | | Chicago-Latrobe | 0.03 | 12.64 @ 12 |
 | National Supply Network | 81132292 | 14.7825 | 1 | 12 | | Chicago-Latrobe | | 14.7825 @ 12 |
 | Guardian | 81132292 | 17.64 | 1 | 12 | | Chicago-Latrobe | | 17.64 @ 12 |
 | Global Industrial | WBB2543037 | 96.0 | 1 | 12 | | Chicago-Latrobe | | 96.0 @ 12 |
