Chicago Latrobe 54053

B09TJRHLCW

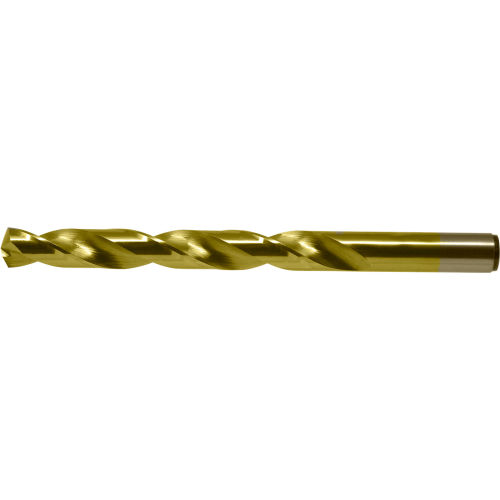

Chicago-Latrobe 54053 550-TN/2550 Heavy Duty Jobber Length Drill Bit, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, TiN Coated (12 Each)

Chicago-Latrobe 54053 550-TN/2550 Heavy Duty Jobber Length Drill Bit, 11/64 in Drill - Fraction, 0.1719 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, TiN Coated (12 Each)zoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Tool Steel.
Cutting Depth2-1/8 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8%
Decimal Equivalent0.1719
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.171875
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack and Gold Oxide
Drill Bit GroupingDrill Bit
Drill Bit MaterialCobalt
Drill Bit Point Angle135 Degrees
Drill Bit Size11/64 in
Drill ConstructionHeavy-Duty
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in/-0.0007 in
Drill Length ClassJobber Length
Drill Point Length0.0356 in
Drill Size - Decimal In.0.1719 in
Drill Size - Fraction11/64 in
Drill StyleJobber Drill
FinishTiN Coated, Black and G.
Flute Length2-1/8 in, 2 1/8 in
Flute TypeRight Spiral, Spiral
ItemJobber Length Drill Bit
MaterialM42 HSS-Co 8%, HSS-CO 8.
Maximum Drilling Depth1 19/32 in
Number of Flutes2
Overall Length3-1/4 in, 3 1/4 in
Point Angle135 deg, 135
Point TypeSplit
Series550-TN/2550
Shank Dia.11/64 in
Shank Length1 1/8 in
Shank Size11/64 in Dia x 1-1/8 in.
Shank TypeStraight
Style550-TN
Surface ConditionTiN
Through Coolant (Yes/No)No
Tool Size11/64"
TypeHeavy Duty

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61313404.29912Chicago-Latrobe4.29 @ 12
thumbzoomheavydutydepot.com540534.42312Chicago-Latrobe4.4 @ 23
thumbzoomusmegastore.com540535.11112Chicago-Latrobe5.11 @ 12
thumbzoomZoroG24786736.0512338Chicago-Latrobe0.026.05 @ 12
thumbzoomsustainablesupply.comC27645627.59112Chicago-Latrobe0.027.59 @ 12
thumbzoomNational Supply Network811329389.9925112Chicago-Latrobe9.9925 @ 12
thumbzoomGuardian8113293810.41112Chicago-Latrobe10.41 @ 12
thumbzoomGlobal IndustrialWBB254332453.52112Chicago-Latrobe53.52 @ 12
