Chicago Latrobe 54054

B09TJQXFW8

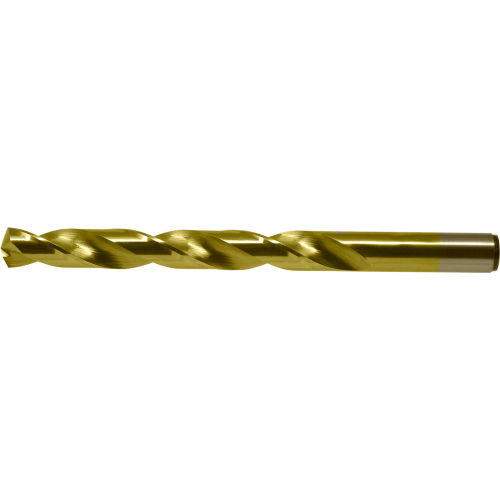

Chicago-Latrobe 54054 550-TN/2550 Heavy Duty Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, TiN Coated (12 Each)

Chicago-Latrobe 54054 550-TN/2550 Heavy Duty Jobber Length Drill Bit, 3/16 in Drill - Fraction, 0.1875 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, TiN Coated (12 Each)zoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Tool Steel.
AvailabilityCall for Availability
BrandChicago-Latrobe
Cutting Depth2-5/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialM42 HSS-Co 8%
Decimal Equivalent0.1875
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.1875
Drill Bit Dimension TypeFractional Inch
Drill Bit FinishBlack and Gold Oxide
Drill Bit GroupingDrill Bit
Drill Bit MaterialCobalt
Drill Bit Point Angle135 Degrees
Drill Bit Size3/16 in
Drill ConstructionHeavy-Duty
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in/-0.0007 in
Drill Length ClassJobber Length
Drill Point Length0.0388 in
Drill Size - Decimal In.0.1875 in
Drill Size - Fraction3/16 in
Drill StyleJobber Drill
FinishTiN Coated, Black and G.
Flute Length2 5/16 in, 2-5/16 in
Flute TypeRight Spiral, Spiral
ItemJobber Length Drill Bit
ManufacturerGreenfield Industries
MaterialM42 HSS-Co 8%, HSS-CO 8.
Maximum Drilling Depth1 47/64 in
Mfr. Model #54054
Number of Flutes2
Overall Length3 1/2 in, 3-1/2 in
Point Angle135 deg, 135
Point TypeSplit
Series550-TN/2550
Shank Dia.3/16 in
Shank Length1 3/16 in
Shank Size3/16 in Dia x 1-3/16 in.
Shank TypeStraight
Ship Weight (lbs.)1
Style550-TN
Surface ConditionTiN
Through Coolant (Yes/No)No
Tool Size3/16"
TypeHeavy Duty
UnitEA

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61313414.51822Chicago-Latrobe4.51 @ 8
thumbzoomheavydutydepot.com540544.62222Chicago-Latrobe4.6 @ 22
thumbzoomusmegastore.com540545.41In StockChicago-Latrobe5.4 @ 1
thumbzoomZoroG19209655.8112323Chicago-Latrobe0.025.81 @ 1
thumbzoomgrovesindustrial.comGRN 540546.05122Chicago-Latrobe1.06.05 @ 1
thumbzoomGuardian8113295311.18122Chicago-Latrobe11.18 @ 1
thumbzoomNational Supply Network8113295318.25122Chicago-Latrobe18.25 @ 1
thumbzoomGlobal IndustrialWBB254333757.4008122Chicago-Latrobe57.4008 @ 1
