- mpn54060
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

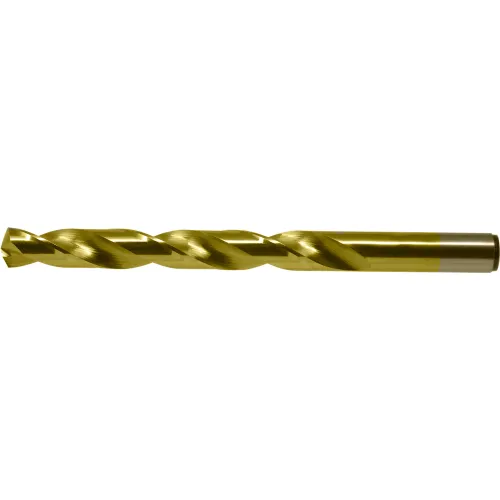

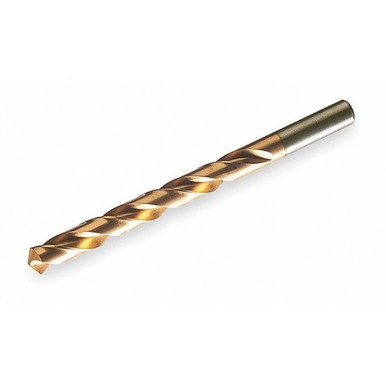

Chicago-Latrobe 54060 550-TN/2550 Heavy Duty Jobber Length Drill Bit, 9/32 in Drill - Fraction, 0.2812 in Drill - Decimal Inch, 135 deg Point, M42 HSS-Co 8%, TiN Coated (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 54060
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Aircraft Drill | Yes |
| Applicable Materials | Alloy Steel, Tool Steel. |
| Application | For Alloy, Stainless An. |
| Brand | Chicago-Latrobe |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Current Stock | 391 |
| Cutting Depth | 2-15/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8% |
| Decimal Equivalent | 0.2813 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.28125 |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Cobalt |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Point Type | Split point |
| Drill Bit Size | 9/32 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0582 in |
| Drill Size - Decimal In. | 0.2812 in |
| Drill Size - Fraction | 9/32 in |
| Drill Style | Jobber Drill |
| Finish | TiN Coated |
| Finish - Machining | TiN |

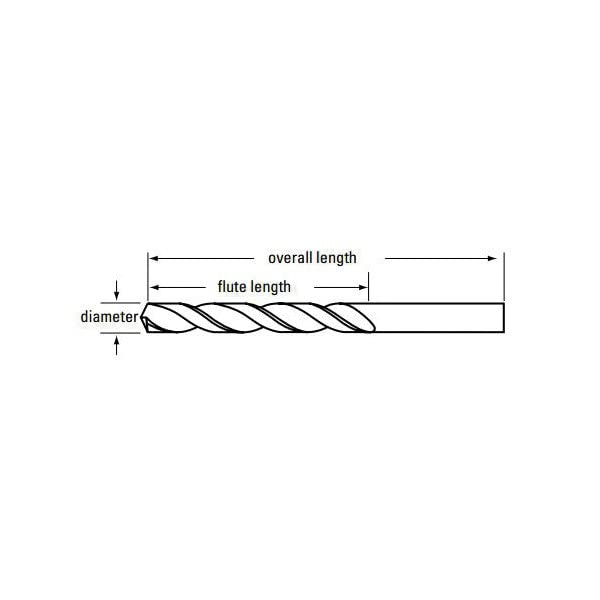

| Flute Length | 2-15/16 in, 2 15/16 in |
| Flute Type | Right Spiral, Spiral |
| Grade | Heavy Duty |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Jobber Length Drill Bit |
| Left/Right Hand | Right |
| List Number | 2550 |
| Material | M42 HSS-Co 8%, HSS-CO 8. |
| Material - Machining | Cobalt |
| Material Grade - Machin. | M42 |
| Maximum Drilling Depth | 1 1/8 in |
| Measurement System | Fractional Inch |
| Mpn | 54060 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 4 1/4 in, 4-1/4 in |
| Point Angle | 135 deg, 135 |
| Point Type | Split point, Split |
| Primary Material Applic. | Stainless Steel, Steel,. |
| Primary Material Applic. | P, S |
| Prop 65 | This product contains a. |
| Series | 55TN, 550-TN/2550 |
| Shank Dia. | 17/64 in |
| Shank Length | 1 5/16 in |
| Shank Size | 9/32 in Dia x 1-5/16 in. |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| SKU | ZO-G0606706 |
| Spiral Direction | Right Hand |
| Standards | NAS 907 Type J |
| Style | 550-TN |
| SubCategory | Machining |
| Surface Condition | TiN |
| Through Coolant (Yes/No) | No |
| Tool Size | 9/32" |
| Type | Heavy Duty |
| UPC | 662355540602 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6131347 | 8.82 | 4 | In Stock | | Chicago-Latrobe | | 8.82 @ 4 |
 | Global Industrial | WBB2543147 | 9.9 | 12 | In Stock | | Chicago-Latrobe | | 9.9 @ 12 |
 | heavydutydepot.com | 54060 | 10.21 | 12 | In Stock | | Chicago-Latrobe | | 10.21 @ 12 |
 | usmegastore.com | 54060 | 10.45 | 1 | In Stock | | Chicago-Latrobe | | 10.45 @ 1 |
 | Zoro | G0606706 | 11.89 | 1 | 457 | | Chicago-Latrobe | 0.05 | 11.89 @ 1 |
 | sustainablesupply.com | C1464687 | 14.03 | 1 | In Stock | | Chicago-Latrobe | 0.05 | 14.03 @ 1 |
 | simsupply.com | ZO-G0606706 | 19.17 | 1 | 391 | | Chicago-Latrobe | | 19.17 @ 1 |
 | Guardian | 81133076 | 21.41 | 1 | In Stock | | Chicago-Latrobe | | 21.41 @ 1 |
 | National Supply Network | 81133076 | 28.36 | 1 | In Stock | | Chicago-Latrobe | | 28.36 @ 1 |
