- mpnB00J9HTRO0
- brandname: CLELINE
- manufacturername: CLELINE

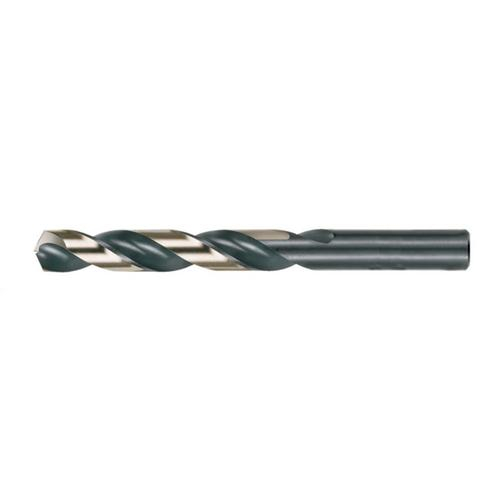

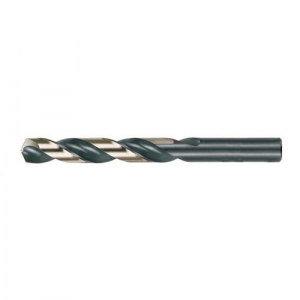

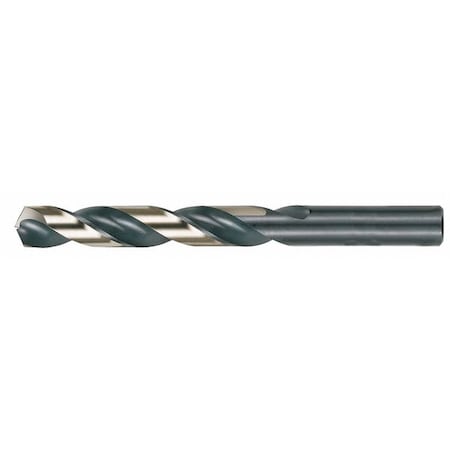

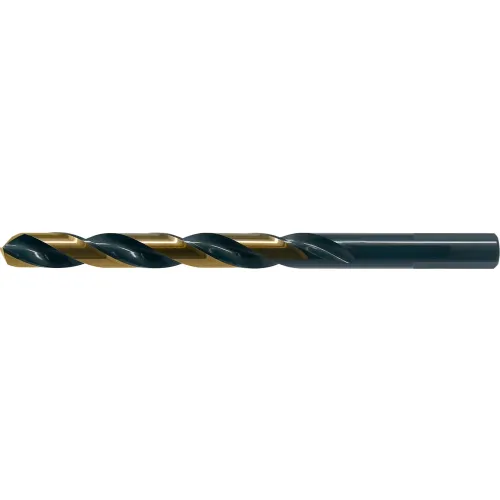

Jobber Bit, 52, High Speed Steel
- Brand: Cle-line
- PartNumber: C18105
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Cutting Depth | 5XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0635 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.0635", 0.0635 |
| Diameter (Wire/Let) | 52 |
| Drill Bit Dimension Type | Wire |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | #52 |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in/-0.0005 in |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.0132 in |
| Drill Size - Decimal In. | 0.0635 in |
| Drill Size - Wire | #52 |
| Drill Size System | Wire |
| Drill Style | Jobber Drill |
| Finish | Black/Gold Oxide |
| Flute Length | 0.8750", 7/8 in |
| Flute Length (Metric) | 22.22mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Item | Jobber Length Drill Bit |
| Material | HSS |
| Maximum Drilling Depth | 21/32 in |
| Number of Flutes | 2 |
| Overall Length | 1 7/8 in, 1-7/8 in, 1.8. |
| Overall Length (Metric) | 47.63mm |
| Point Angle | 135 deg, 135?, 135 |
| Point Style | Split |
| Point Type | Split |
| Series | 1878 |
| Shank Dia. | 1/16 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 0.0635", 0.0635, 0.0635. |
| Shank Size (Metric) | 1.61mm |
| Shank Type | Straight |
| Style | 1878 |
| Surface Condition | Black & Gold |
| Through Coolant (Yes/No) | No |
| Tool Size | #52 |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544179 | 1.27 | 12 | 12 | | Cle-Line | | 1.27 @ 12 |
 | MRO Supply | 6123372 | 1.53 | 33 | 12 | | Cle-Line | | 1.53 @ 33 |
 | Zoro | G4453346 | 1.59 | 1 | 343 | | Cle-Line | | 1.59 @ 12 |
 | heavydutydepot.com | C18105 | 1.84 | 55 | 12 | | Cle-Line | | 1.84 @ 55 |
 | Raptor Supplies | AB6WDM | 2.1564855 | 1 | 12 | | CLE-LINE | | 2.1564855 @ 12 |
 | usmegastore.com | C18105 | 12.07 | 1 | 12 | | Cle-Line | | 12.07 @ 12 |
 | Megadepot | C18105 | 12.07 | 1 | 12 | | Cle-Line | | 12.07 @ 12 |
