- mpnB003Z0C31Q
- brandname: Cleveland
- manufacturername: Cleveland

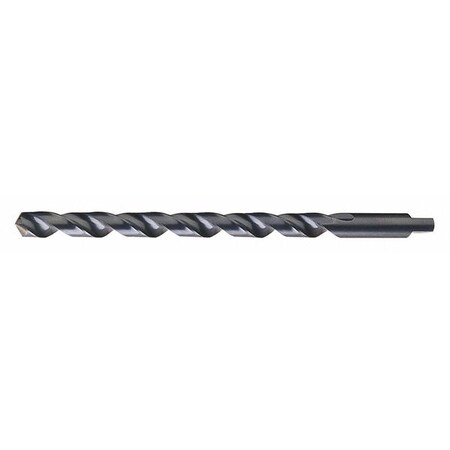

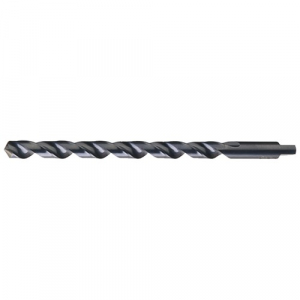

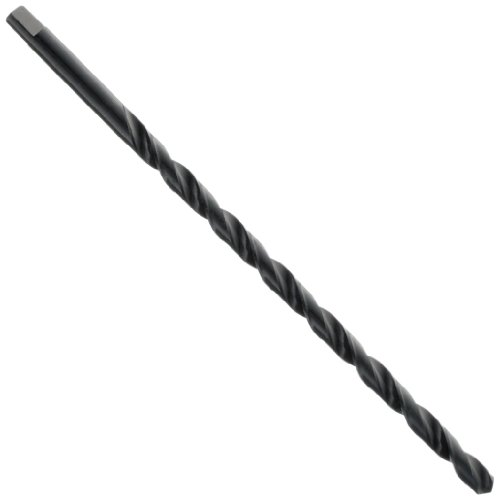

Cleveland 2540 High Speed Steel Long Length Drill Bit, Black Oxide, Round Shank with Flats, 118 Degree Notch Point, 5/8" (Pack of 1)
- Brand: CLEVELAND
- PartNumber: C09581
- Model: C09581
- Size: 5/8"
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Greenfield Industries
- Label: Greenfield Industries
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Tool Steel, Cast . |
| Application | Automotive For Stainles. |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Country of Origin (subj. | United States |
| Cutting Depth | 3-7/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.6250 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118 Degrees |
| Drill Bit Point Type | Notched Point |
| Drill Bit Size | 5/8 in |
| Drill Diameter Tolerance | +0.0000 in /-0.0012 in |
| Drill Length Class | Taper Length |
| Drill Point Length | 0.1878 in |
| Drill Size - Decimal In. | 0.625 in |
| Drill Size - Fraction | 5/8 in |
| Finish | Black Oxide |
| Finish - Machining | Black Oxide |
| Flute Length | 6 1/2 in, 3-7/16 in |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Helix Angle | 21 Degrees /34 Degrees |
| Item | Taper Length Drill Bit |
| List Number | 2540 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 6 1/2 in |
| Measurement System | Fractional Inch |
| Number of Flutes | 2 |
| Overall Length | 8-3/4 in, 8 3/4 in |
| Point Angle | 118 deg |
| Point Type | Notched |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, M, P |
| Secondary Material Appl. | Alloy Steel, Cast Iron,. |
| Secondary Material Appl. | K, M, P |
| Series | 2540 |
| Shank Dia. | 1/2 in |
| Shank Length | 3 7/8 in |
| Shank Size | 1/2 in |
| Shank Type | Tanged, Straight |
| Shank Type - Machining | Straight |
| Sizes Included | 5/8" |
| Spiral Direction | Right Hand |
| Standards | AIS |
| Style | 2540 |
| Surface Condition | Steam Oxide |
| Tool Size | 5/8" |
| Type | Heavy Duty |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6110174 | 58.22 | 1 | In Stock | | Cleveland | | 58.22 @ 1 |
 | usmegastore.com | C09581 | 61.26 | 1 | In Stock | | Cleveland | | 61.26 @ 1 |
 | Zoro | G2997327 | 68.63 | 1 | In Stock | 8 | Cleveland | 0.46 | 68.63 @ 1 |
 | Amazon | B003Z0C31Q | 78.84 | 1 | In Stock | | Cleveland | | 78.84 @ 1 |
 | sustainablesupply.com | C3017901 | 78.97 | 1 | In Stock | | Cleveland | 0.46 | 78.97 @ 1 |
